Aqua Underwater Spotlight · LED Range
The AXS range covers six marine-grade underwater luminaires — from the 1.5 W AXS1-1.5 to the 36 W AXS36 — for pools, fountains, and architectural water features. Die-cast 316L stainless steel, IP68-rated, with DMX/RDM control throughout.
Aqua · Underwater · Spotlight
AXS Aqua Underwater Spotlight Range · 6 Models

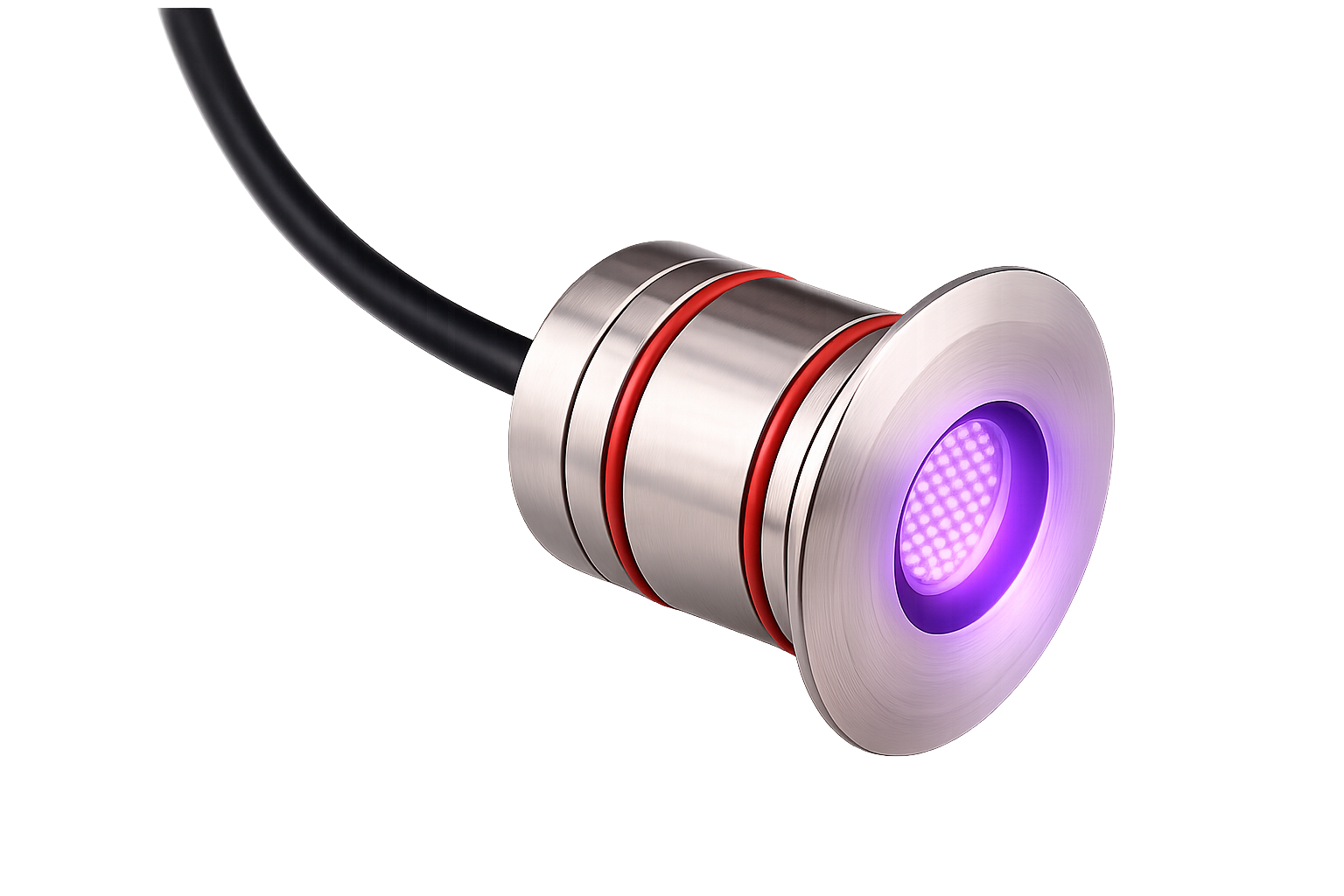

1.5 W miniature underwater spotlight for pool steps, niches, and tight water features. ø52 mm.
Beam Options

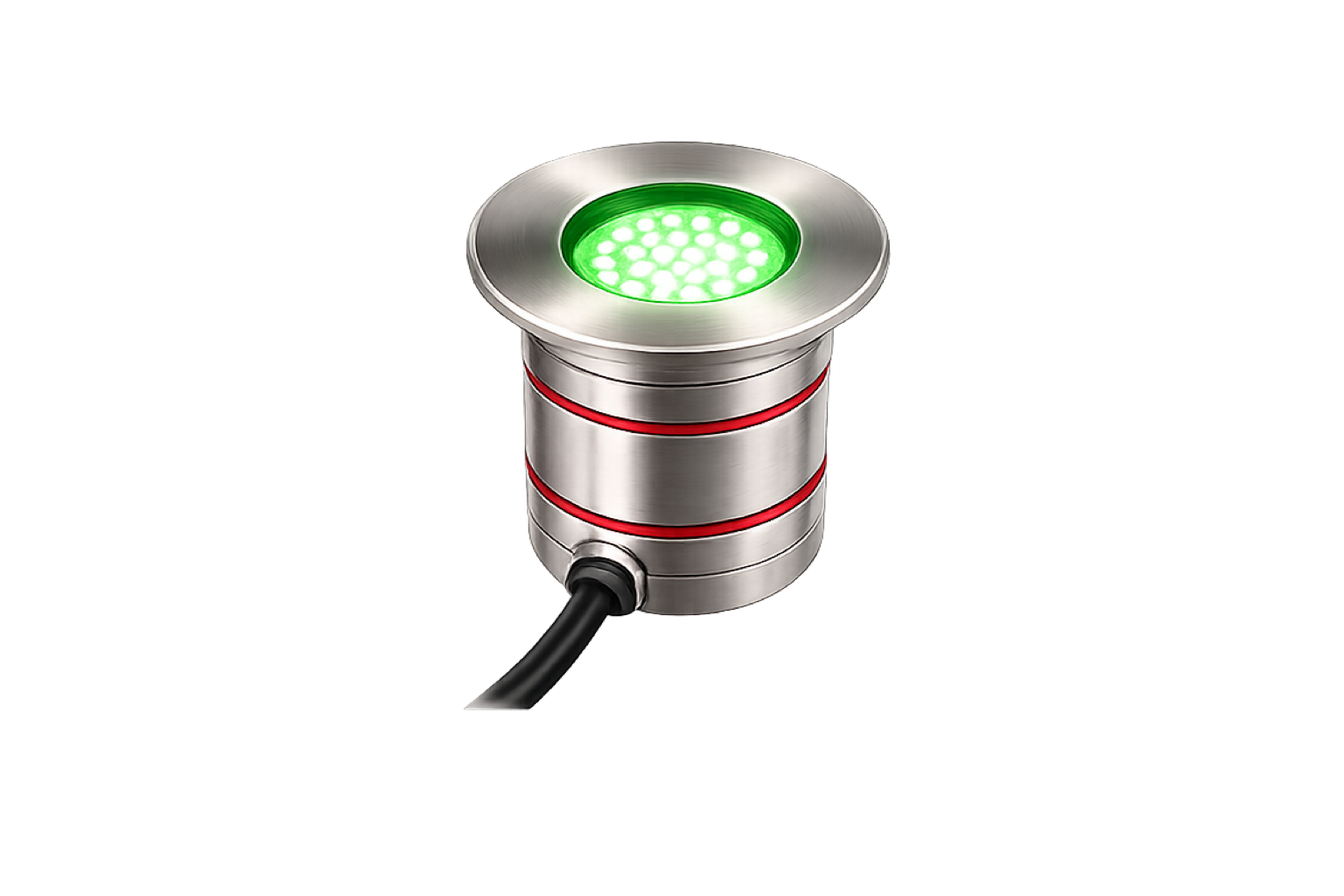

6 W compact spotlight with the full beam library, including asymmetric optics. ø90 mm.
Beam Options

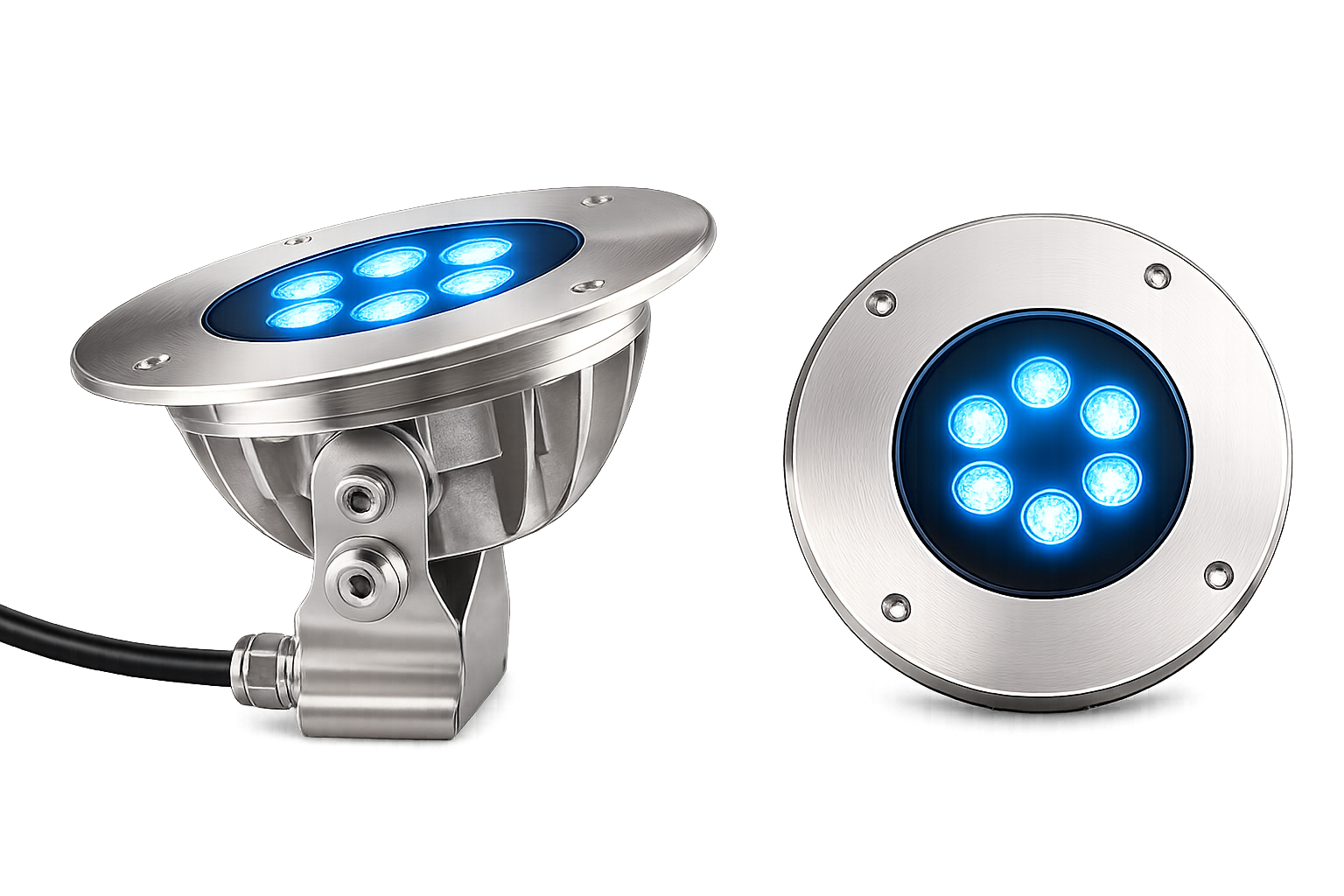

6 W drum-format luminaire with a wide 90° option for broad, even wash. ø166 mm.
Beam Options

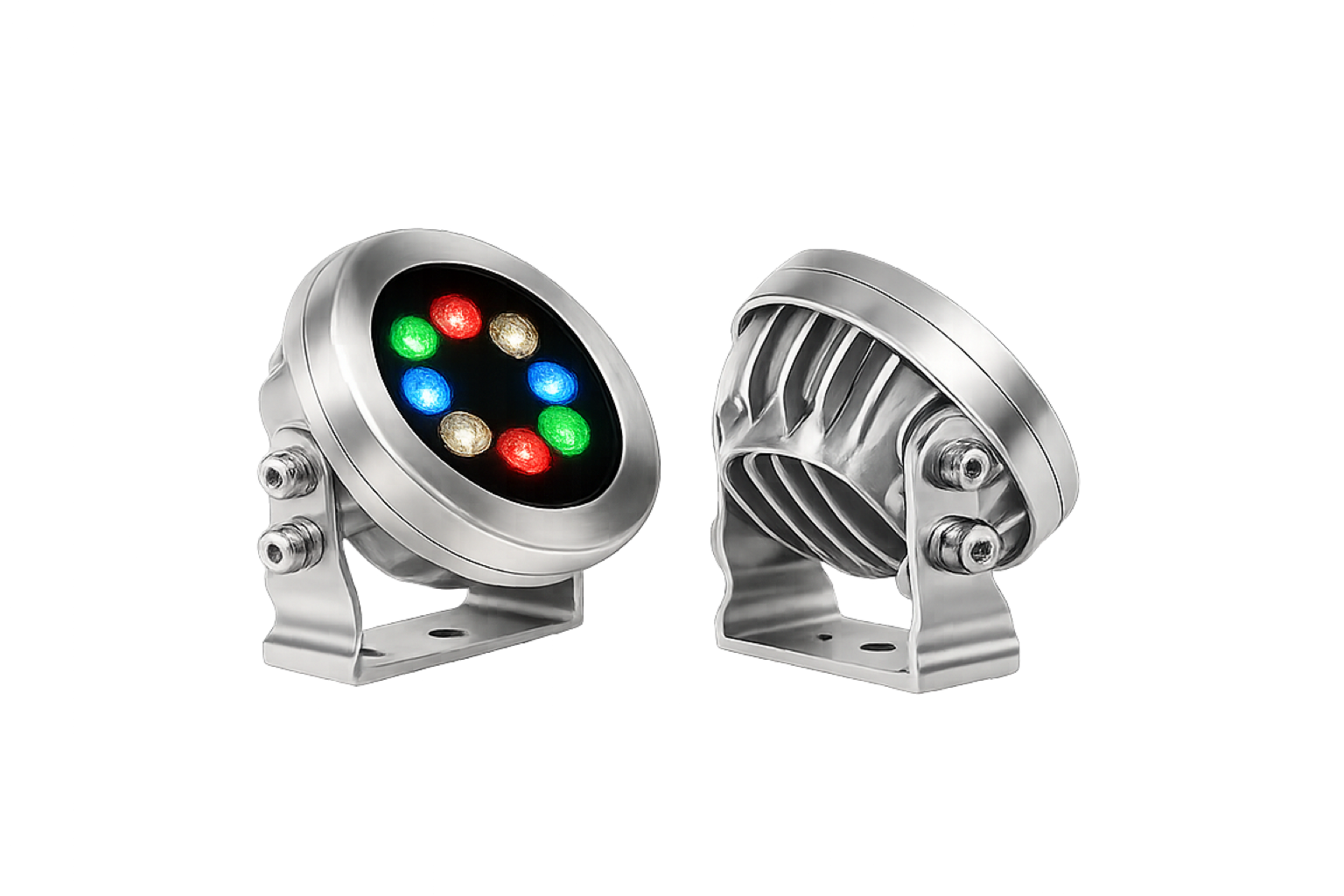

8 W in-ground or underwater spotlight for pools, ponds, and feature walls. ø125 mm.
Beam Options

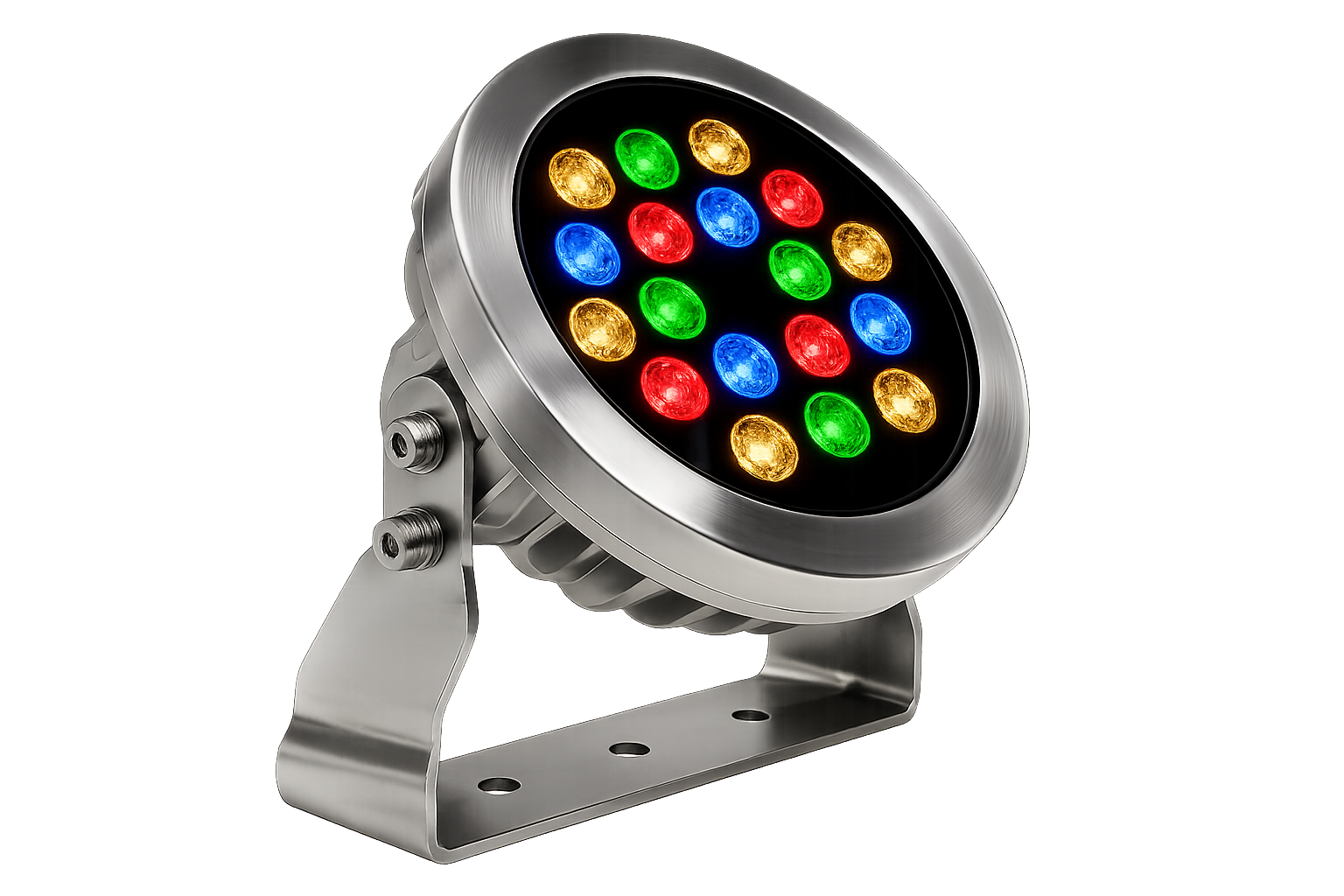

18 W high-output spotlight for deeper water and taller architectural throws. ø166 mm.
Beam Options

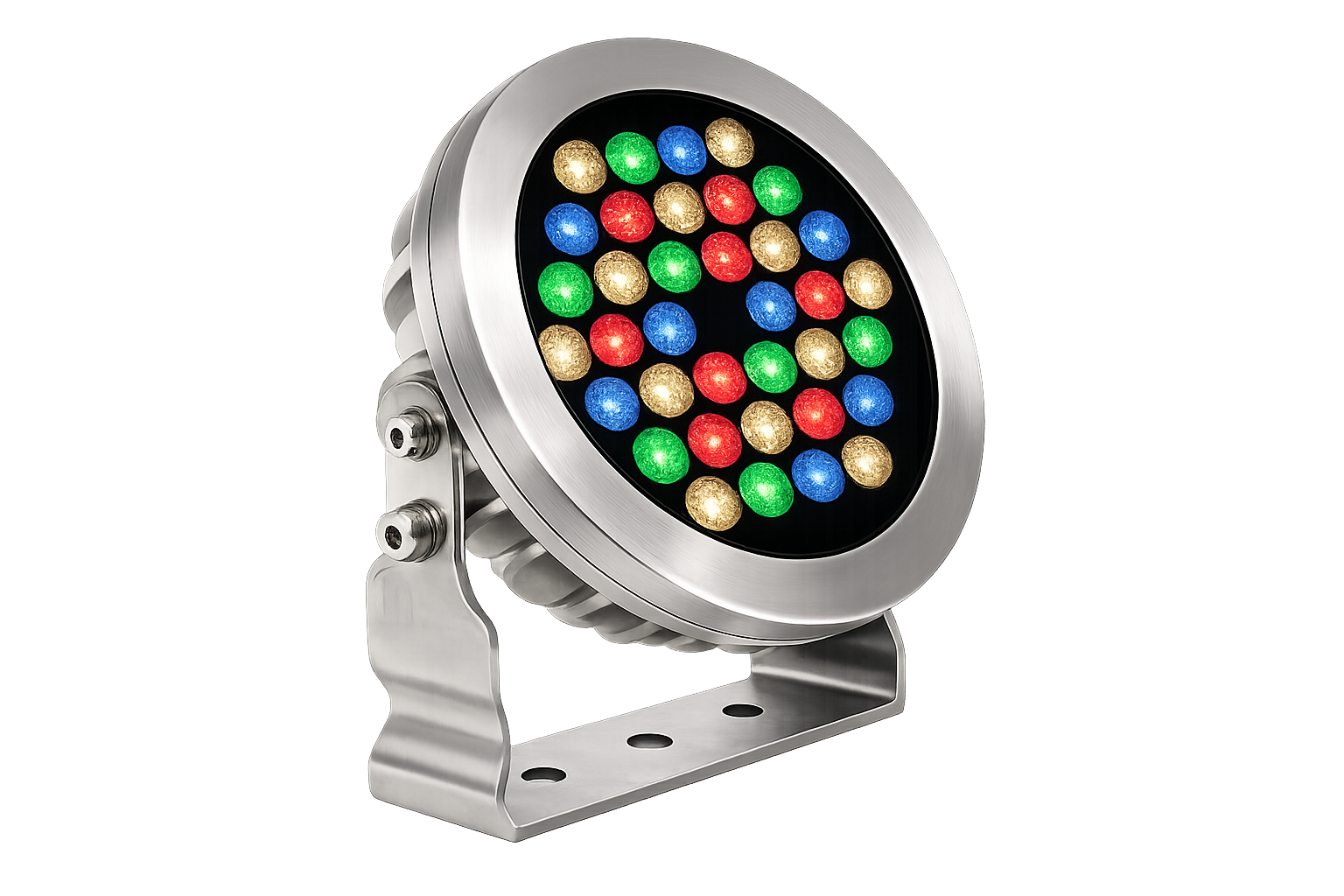

36 W flagship spotlight delivering maximum intensity for large pools and water features. ø193 mm.
Beam Options
AXS Aqua Underwater Spotlight Range · Common Use Cases
01
Wall-mounted and niche-recessed underwater lighting for pools, spas, and plunge pools. IP68 to 6 m depth with die-cast 316L stainless housings that survive chlorinated and salt water.
02
Submerged uplighting for jets, cascades, and sculptural water. Narrow 10° optics punch through moving water; wider beams wash basins and weirs evenly.
03
Reflecting pools, water walls, and lagoon edges in hotel and civic projects — high-output fixtures throwing colour across deep or wide spans.
04
Recessed in-ground spotlights grazing façades, columns, and mature planting. Asymmetric 10°×35° and 10°×60° optics shape light onto tall surfaces without glare.
05
Compact fixtures for pool steps, benches, ledges, and tight water details where a full-size spotlight will not fit but marine-grade sealing is still required.
AXS Aqua Underwater Spotlight Range · Specification Sheets
