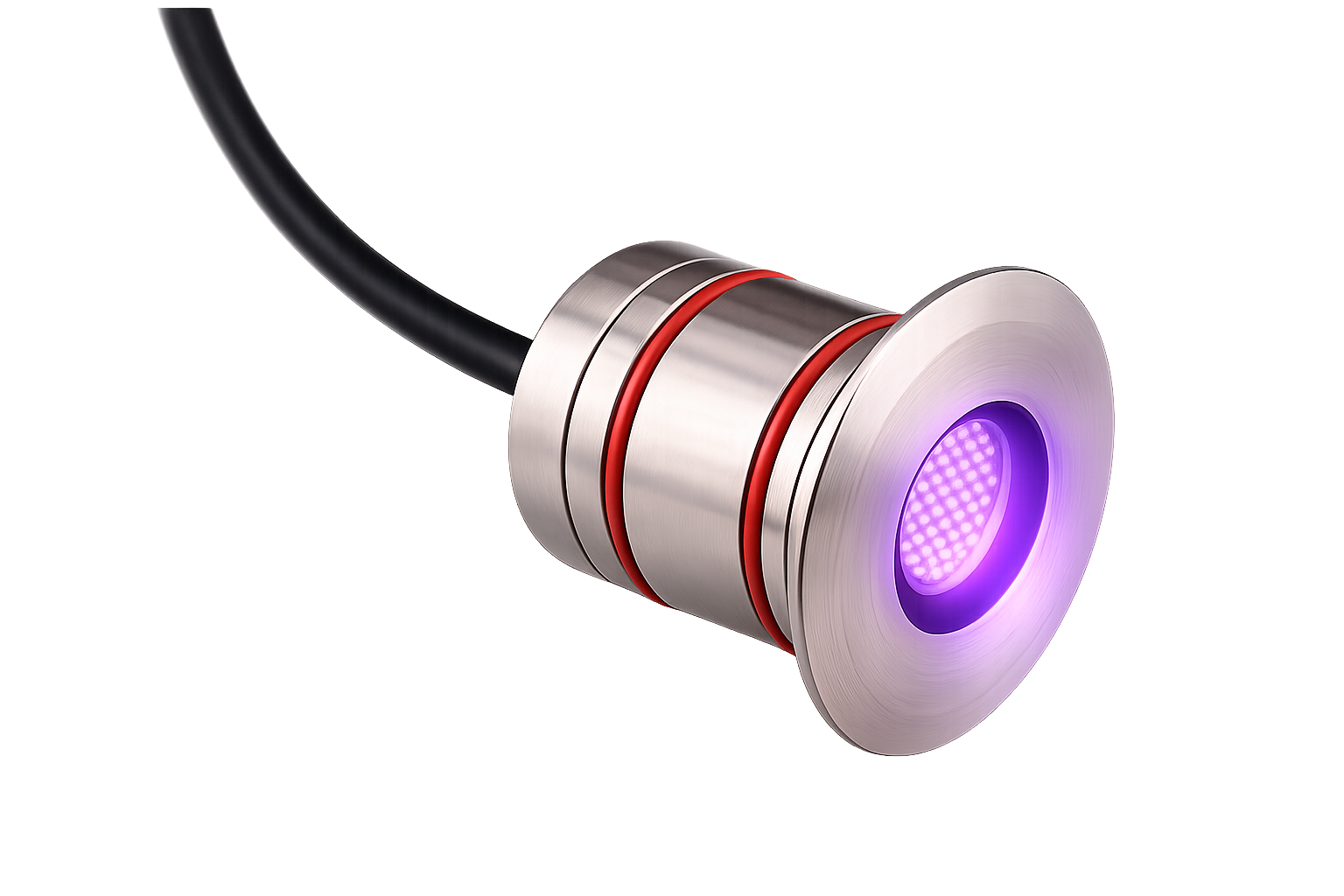

Aqua Underwater Spotlight

A S 1-6

Q: Is the AXS1-6 suitable for underwater installation?

Yes — it is rated IP68 in a 316L marine-grade stainless steel housing.

Q: What are the AXS1-6's dimensions?

It measures Ø90 mm × 84 mm high .

Q: What beam angles and lens options does the AXS1-6 offer?

It offers 10°, 25°, 40°, 60°, 10°×35°, 10°×60° and 30°×60° beams, with a tempered-glass or milky-white diffuser.

Q: What colours and white temperatures does the AXS1-6 offer?

It offers RGBW, RGB, Dynamic White and White , with white from 2400K to 6000K .

Q: What is the AXS1-6's power draw, and what temperatures does it tolerate?

Up to 6 W on 24 V DC, operating from −20°C to +55°C .

Q: What is the AXS1-6's rated source life?

50,000–70,000 hours (L70 at 25°C).

Q: How is the AXS1-6 controlled, and what warranty does it carry?

It is controlled over DMX / RDM and carries a 5-year warranty (extendable).

The AXS1-6 is an RGBW underwater luminaire for pools, fountains, and architectural water features. Up to 235 lm at 6 W across beam angles from 10° to 60°, including an asymmetric option. Marine-grade 316L stainless steel, IP68-rated, with DMX/RDM control and 8-core daisy-chain connectivity.

Colour RGBW · RGB · DW · W
Beam 10° – 25° – 40° – 60°
Build IP68
Control DMX

Configure Your Product View Specifications

1 / 5

Specifications Downloads Configurator FAQs

Key Specifications · AXS1-6 Aqua Underwater Spotlight

Electrical
Power Consumption	6 W max
Operating Voltage	24 V DC
Operating Temperature	−20°C to +55°C (−4°F to +131°F)
Storage Temperature	−20°C to +70°C (−4°F to +158°F)
Physical
Fixture Dimensions	ø90 mm × H 84 mm
Housing	316L Stainless Steel (Marine Grade)
Glass Lens	Tempered Glass / Milky White Diffuser
Source Life	50,000 – 70,000 hours / L70 at 25°C
Optical
Beam Angle	10° · 25° · 40° · 60° · 10°×35° · 10°×60° · 30°×60°
Colour Range	RGBW RGB DW W
White CCT	2400K 2700K 3000K 3500K 4000K 5000K 6000K
LED Type	High-Power LEDs
Control
Control Protocols	DMX / RDM
Ratings
Ingress Rating	IP68
Warranty	5 Years (Extendable Warranty Available)

Note: Specification summary for quick evaluation and layout planning. Colour mode, CCT, beam angle, and lens finish are configurable to suit your underwater or recessed installation.

AXS1-6 fixture dimensions — Fixture Dimensions

AXS1-6 PVC in-grade kit mount — PVC In-Grade Kit Mount

Downloads

AXS1-6 Aqua Underwater Spotlight Downloads

Specifications

AXS1_6_Specifications_Sheet.pdf

Product Configurator

Interactive Configurator

Configure AXS1-6 for Your Project

Pick colour mode, CCT, beam angle, control protocol, and lens or glass finish. Get a build-ready AXS1-6 configuration for your underwater or recessed install.

Live 3D Preview
Rule-Validated Options
Instant Part Number

Frequently Asked Questions

7 Questions

Common questions, answered.

Is the AXS1-6 suitable for underwater installation?

Yes — it is rated IP68 in a 316L marine-grade stainless steel housing.

What are the AXS1-6's dimensions?

It measures Ø90 mm × 84 mm high.

What beam angles and lens options does the AXS1-6 offer?

It offers 10°, 25°, 40°, 60°, 10°×35°, 10°×60° and 30°×60° beams, with a tempered-glass or milky-white diffuser.

What colours and white temperatures does the AXS1-6 offer?

It offers RGBW, RGB, Dynamic White and White, with white from 2400K to 6000K.

What is the AXS1-6's power draw, and what temperatures does it tolerate?

Up to 6 W on 24 V DC, operating from −20°C to +55°C.

What is the AXS1-6's rated source life?

50,000–70,000 hours (L70 at 25°C).

How is the AXS1-6 controlled, and what warranty does it carry?

It is controlled over DMX / RDM and carries a 5-year warranty (extendable).
