Aqua Underwater Drum Light
S
36

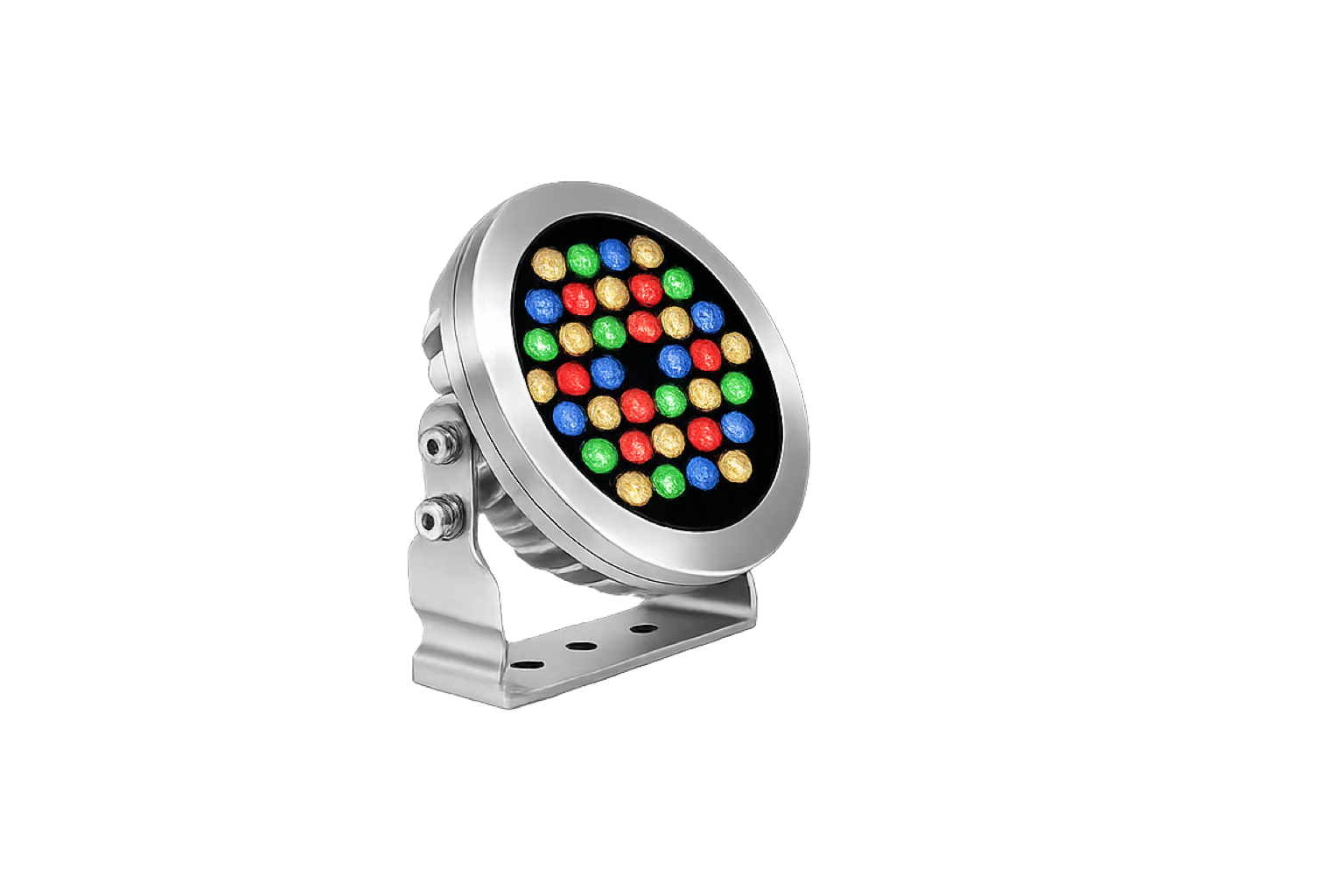

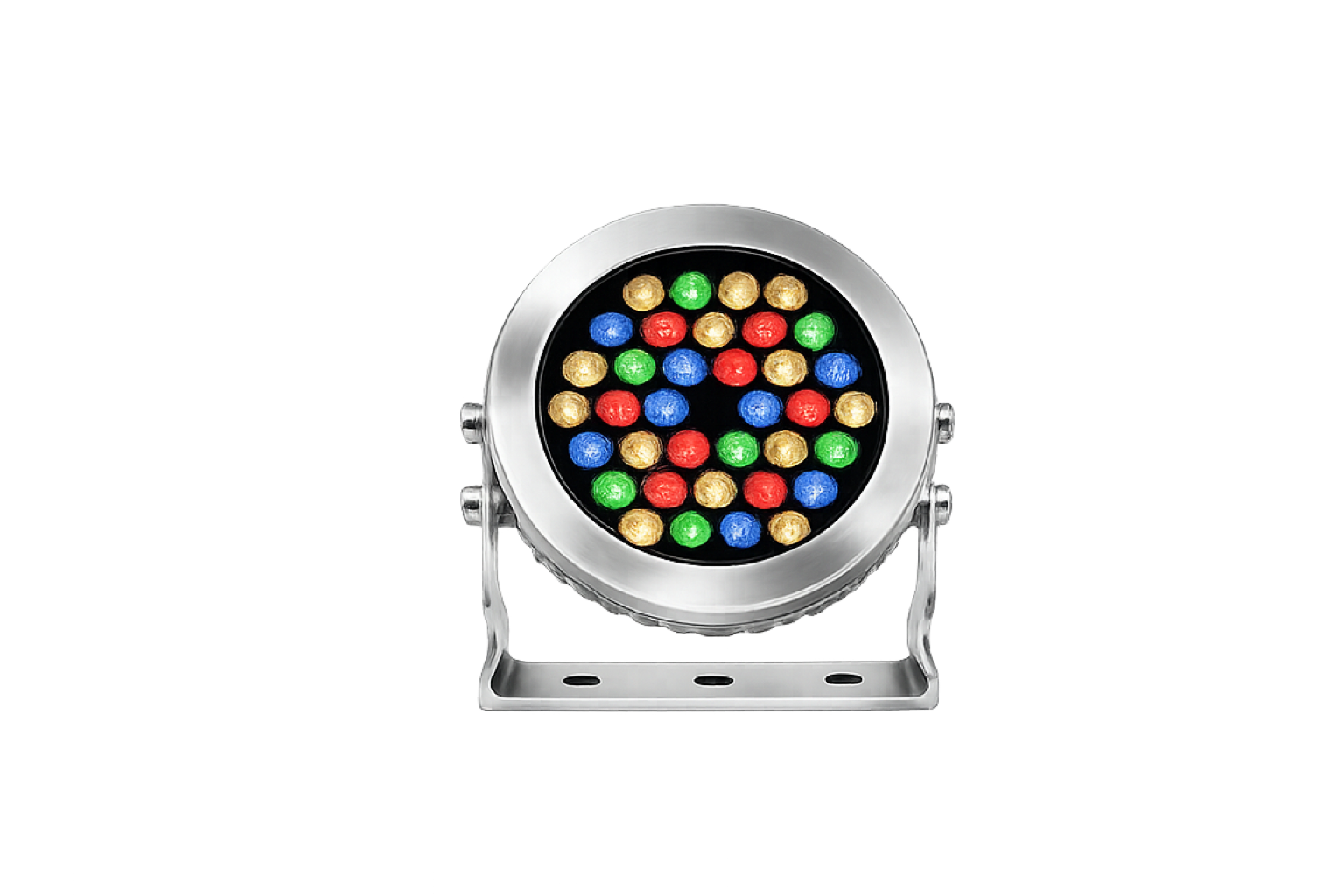

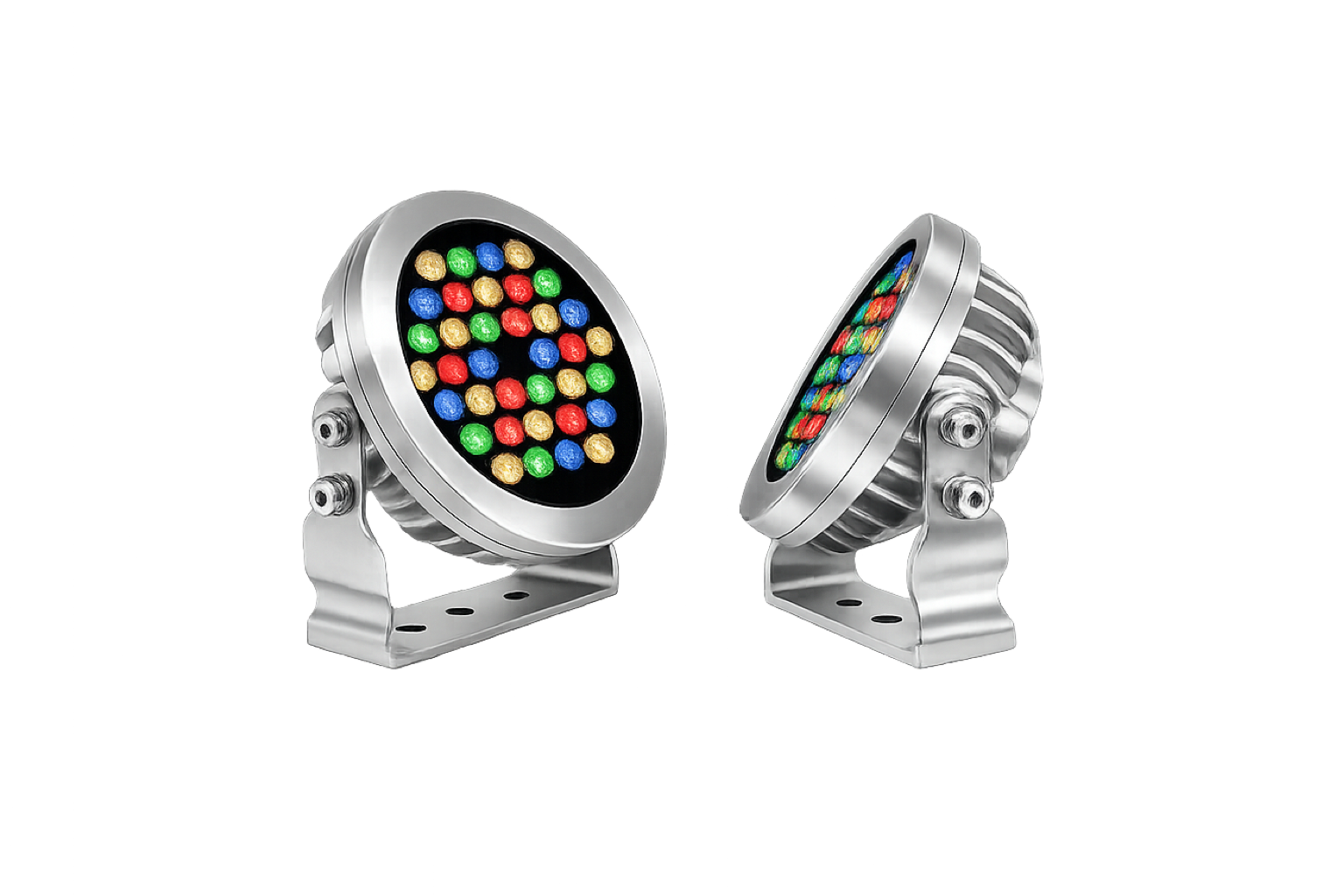

The AXS36 is a high-power underwater drum light for large-scale pools, fountains, and feature water installations. Thirty-six LEDs deliver up to 36 W in RGBW, RGB, Dynamic White, or mono-colour, with beam angles from 10° to 60°. Die-cast 316L stainless steel, IP68 to 6 m depth, with daisy-chain support for multiple units per driver.
| Electrical | |
|---|---|
| Power Consumption | 36 W max |
| Operating Voltage | 24 V DC |
| Operating Temperature | −20°C to +50°C (−4°F to +122°F) |
| Storage Temperature | −20°C to +70°C (−4°F to +158°F) |
| Physical | |
| Fixture Dimensions | ø193 mm × H 144 mm |
| Housing | Die-Cast 316L Stainless Steel (Marine Grade) |
| Glass Lens | Tempered Glass / Optional Encapsulated Lenses |
| Source Life | 50,000 – 70,000 hours / L70 at 25°C |
| Optical | |
| Beam Angle | 10° – (25° – 40° – 10°×35° – 10°×60° optional) with encapsulated lens |
| Colour Range |
RGBW
RGB
DW
W
|
| White CCT |
2400K
2700K
3000K
3500K
4000K
5000K
6000K
|
| LED Type | High Power LEDs |
| Light Source | 36pcs LEDs |
| Control | |
| Control Protocols |
DMX / RDM
|
| Ratings | |
| Ingress Rating |
IP68
|
| Warranty | 5 Years (Extendable Warranty Available) |
Note: Specification summary for quick evaluation and layout planning. Colour mode, CCT, beam angle, and lens option are configurable for underwater or in-ground pool, fountain, or marine installations.
AXS 36 Aqua Underwater Drum Light Downloads
Interactive Configurator
Pick colour mode, CCT, beam angle, lens option, and configuration type. Get a build-ready AXS 36 solution for your underwater or in-ground pool, fountain, or marine installation.
