It is rated IP67 / IP68 in a 316L marine-grade stainless steel housing.
Fixtures
Fixtures
Aqua Underwater Spotlight
S
1-1.5

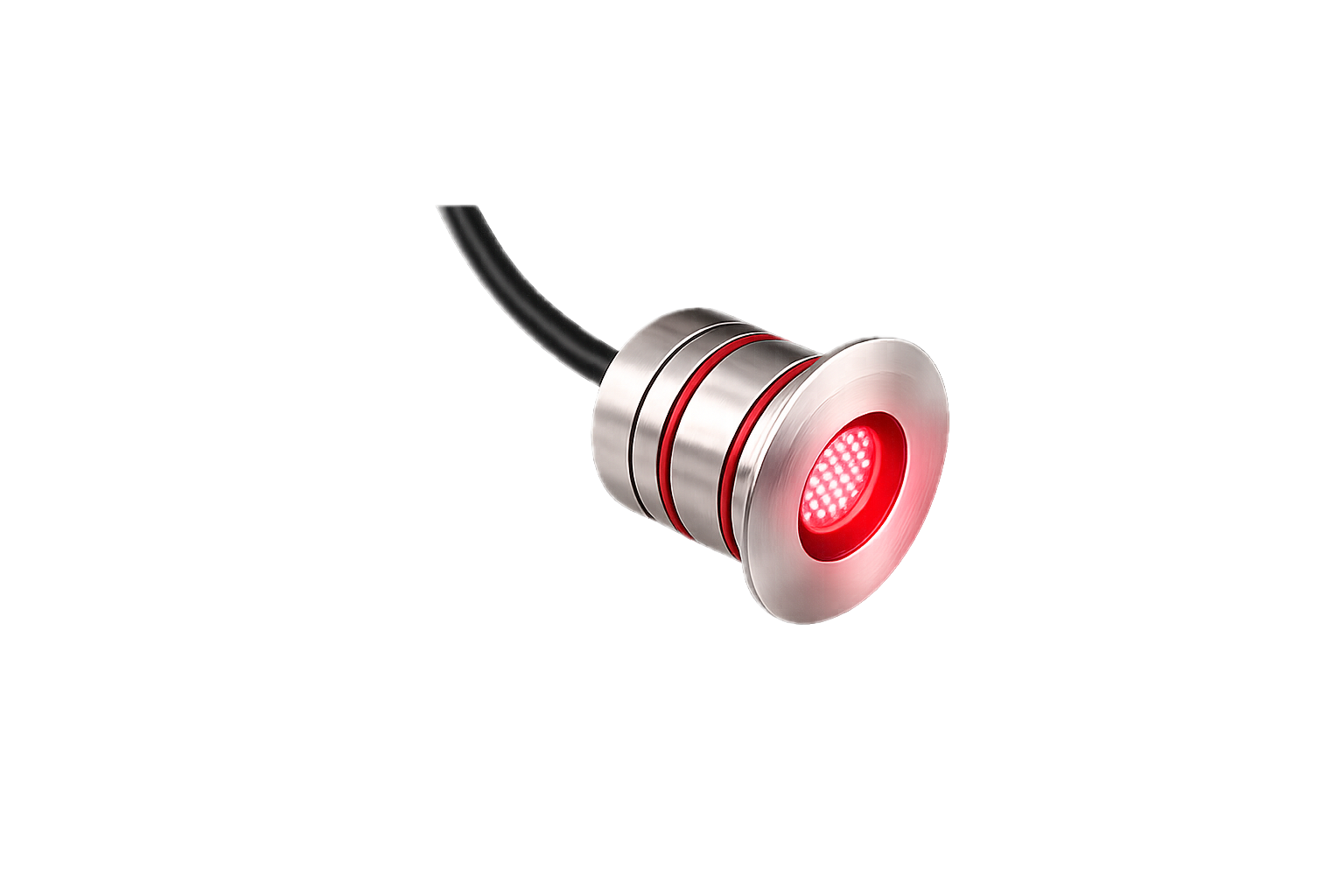

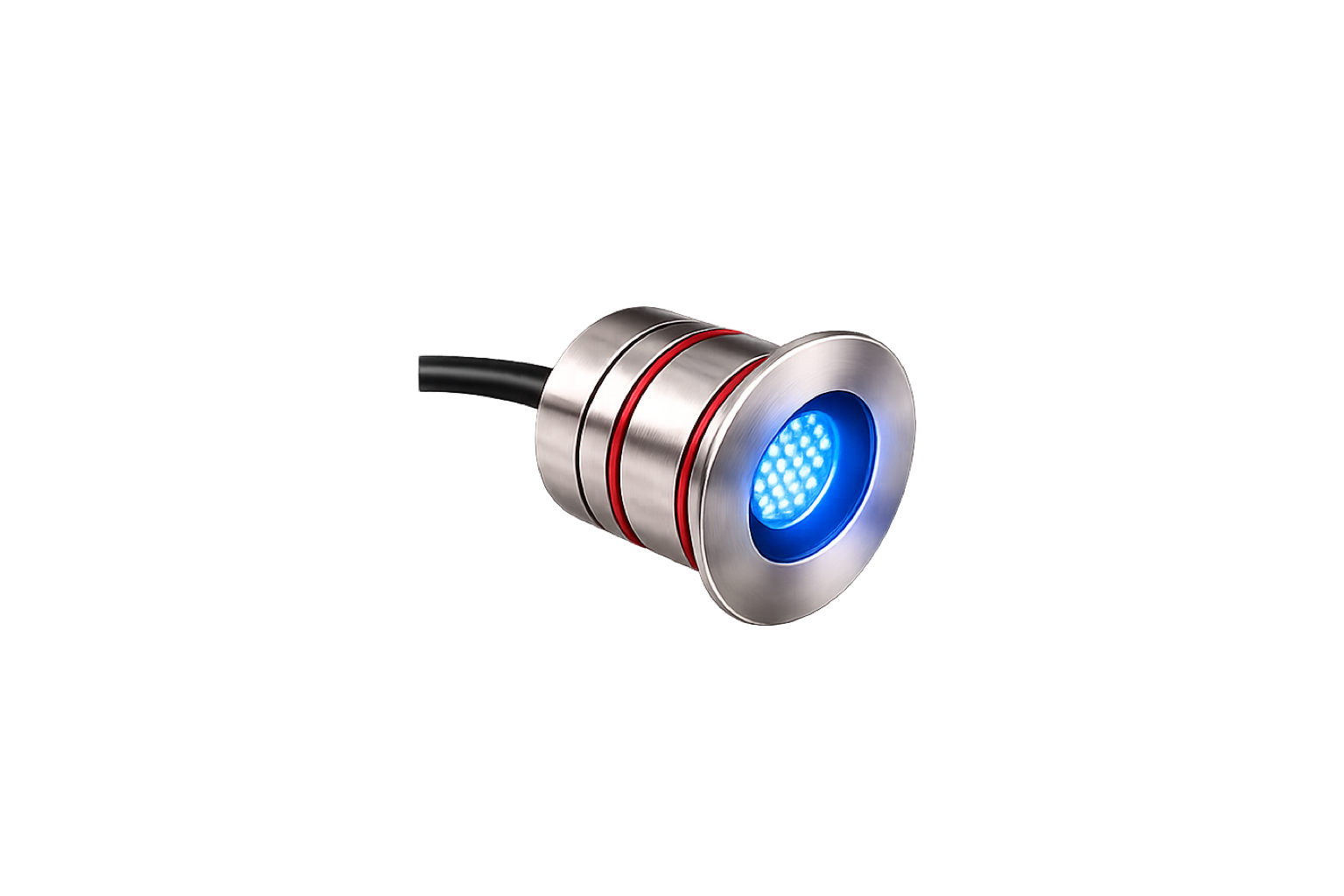

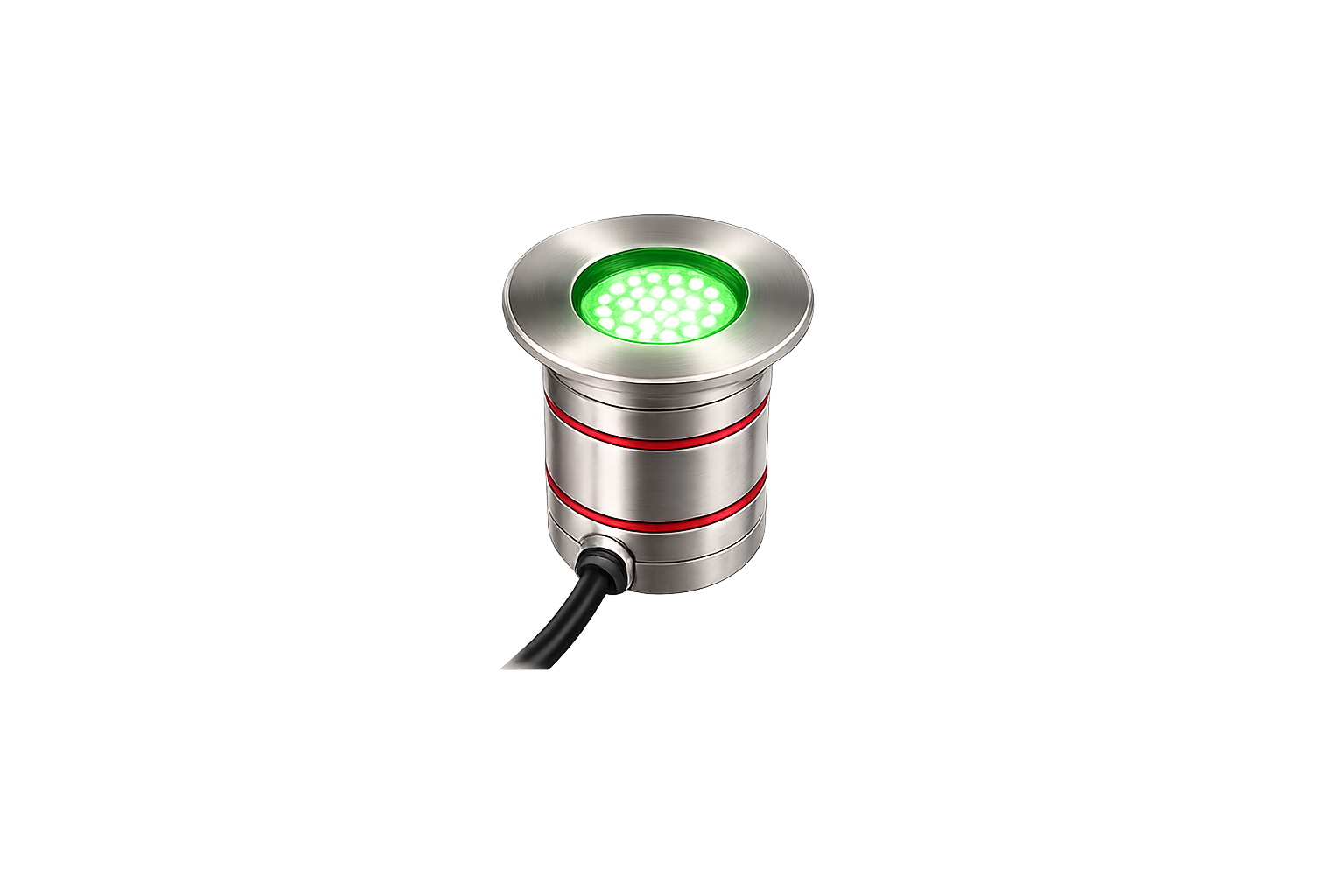

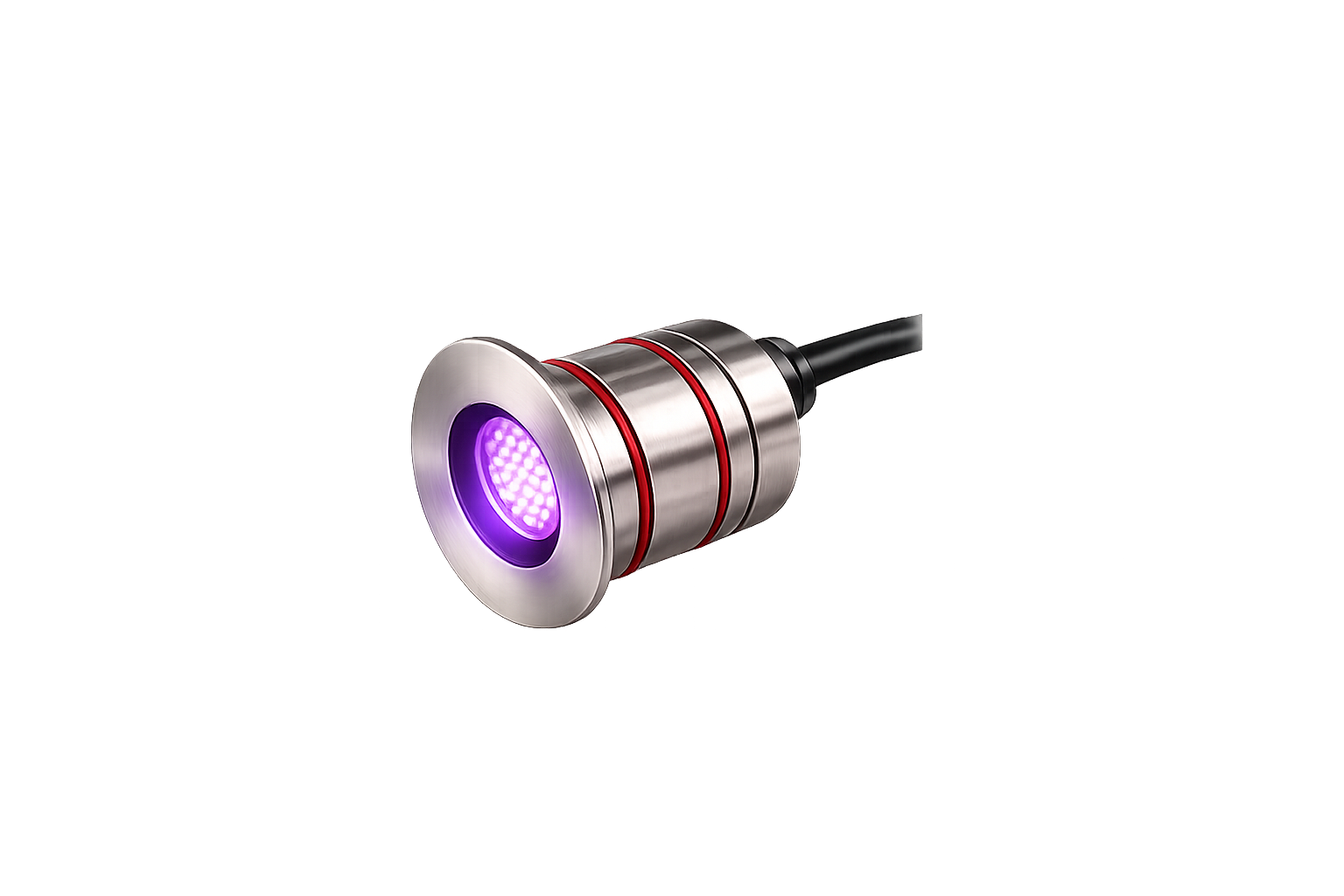

The AXS1-1.5 is a compact, high-performance RGBW LED fixture for architectural and marine installs, with a 316L stainless-steel housing rated IP67/68. Powered by 12 V DC at just 1.5 W, it offers 25°, 40°, and 60° lens options or milky white glass. Full DMX / RDM support with strobe capability for seamless integration into professional control systems.
| Electrical | |
|---|---|
| Power Consumption | 1.5 W max |
| Operating Voltage | 12 V DC |
| Operating Temperature | −20°C to +55°C (−4°F to +131°F) |
| Storage Temperature | −20°C to +70°C (−4°F to +158°F) |
| Physical | |
| Fixture Dimensions | Ø 52 mm × H 65 mm |
| Housing | 316L Stainless Steel (Marine Grade) |
| Glass Lens | Milky White Glass |
| Source Life | 50,000 – 70,000 hours / L70 at 25°C |
| Optical | |
| Beam Angle | 25° · 40° · 60° |
| Colour Range |
RGBW
RGB
DW
W
|
| White CCT |
2400K
2700K
3000K
3500K
4000K
5000K
6000K
|
| Control | |
| Control Protocols |
DMX / RDM
|
| Ratings | |
| Ingress Rating |
IP67
IP68
|
| Warranty | 5 Years (Extendable Warranty Available) |
Note: Specification summary for quick evaluation and layout planning. Colour mode, CCT, beam angle, and lens finish are configurable to suit your underwater or recessed installation.
AXS1-1.5 Aqua Underwater Spotlight Downloads
Interactive Configurator
Pick colour mode, CCT, beam angle, control protocol, and lens or glass finish. Get a build-ready AXS1-1.5 configuration for your underwater or recessed install.
