Four, by diameter: RXN 13 (Ø13 mm, 10 px/m), RXN 25 (Ø25 mm, 14 px/m), RXN 35H (Ø35 mm, 20 px/m) and RXN 50H (Ø50 mm, 21.7 px/m on X-Stream or 14 px/m on DMX).
Fixtures
Hardware
Fixtures
Hardware
N
Rugged Neon · LED Range
RGBW pixel neon in four silicone diameters — 13, 25, 35 and 50 mm — each lit through a full 360°. Every model is IP65 and runs on X-Stream, for touring, nightclubs, amusement and feature lighting.
Touring · 360° · Rugged Neon
RXN Rugged Neon Range · 4 Models
Compact Ø13 mm pixel neon at 10 px/m, with no internal PCB. 24 V DC · IP65.

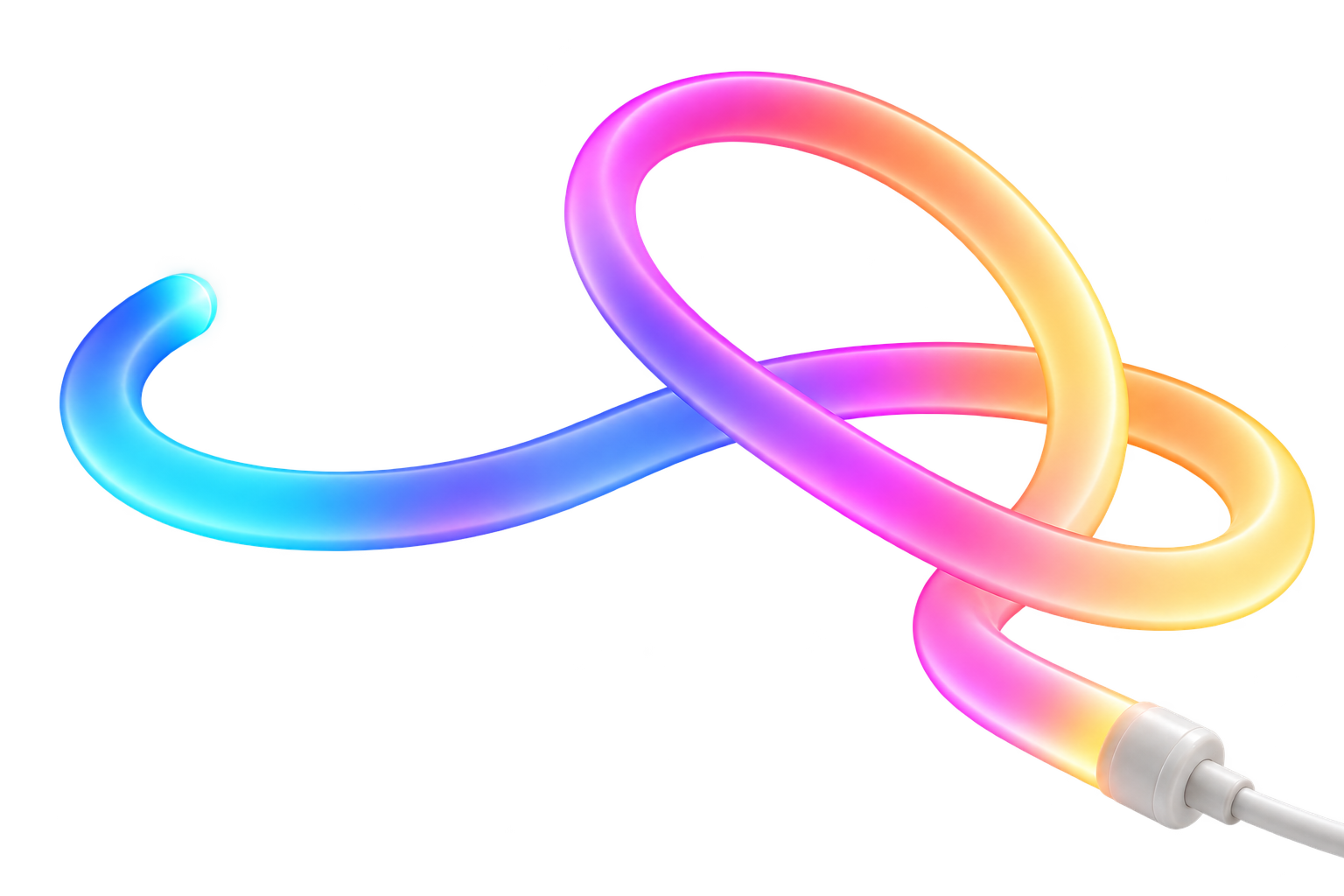

Ø25 mm pixel neon at 14 px/m, with 20 m runs from a single end feed. 24 V DC · IP65.

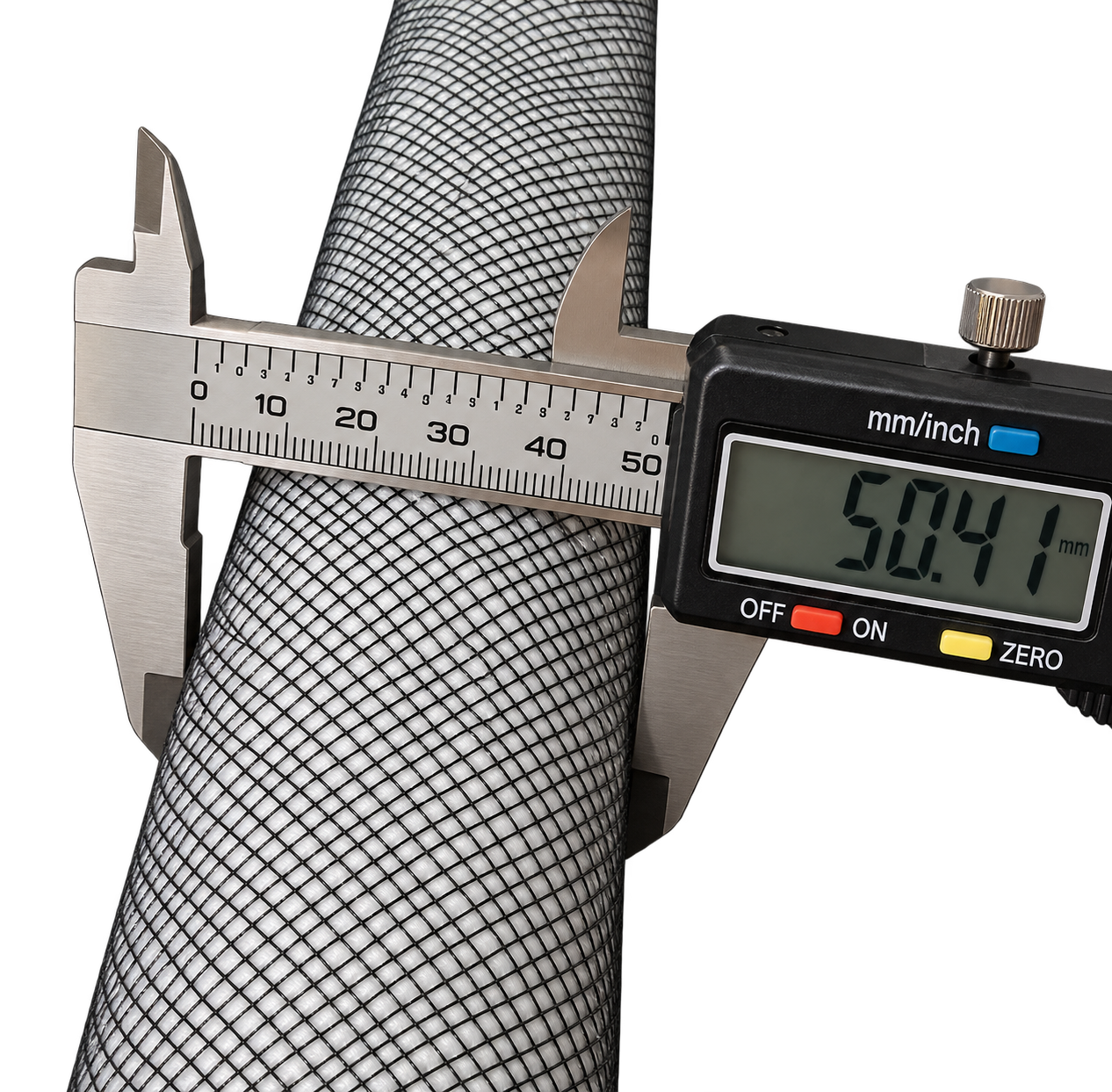

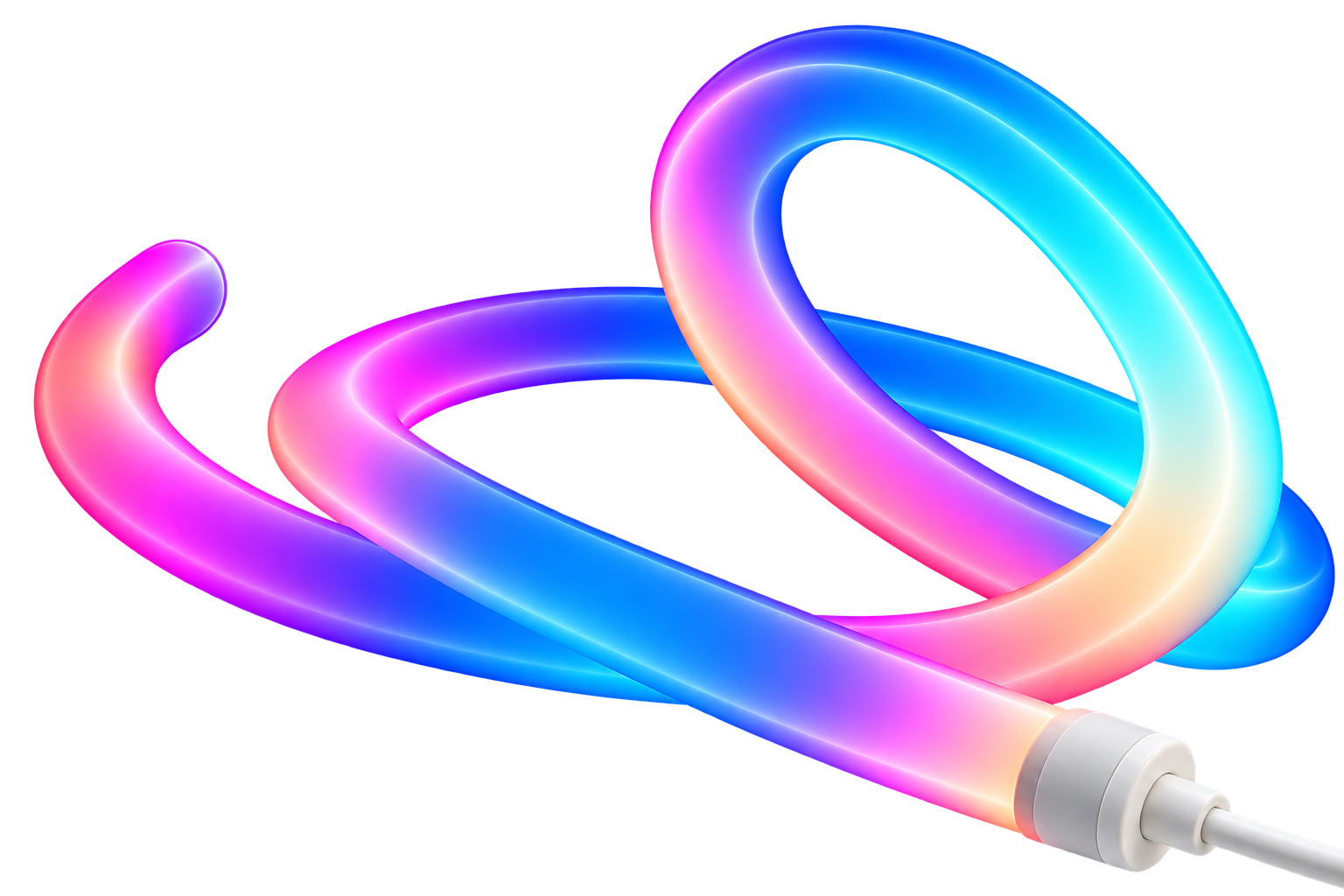

Reinforced Ø35 mm pixel neon at 20 px/m, with 23 m runs from a single end feed. 36 V DC · IP65.

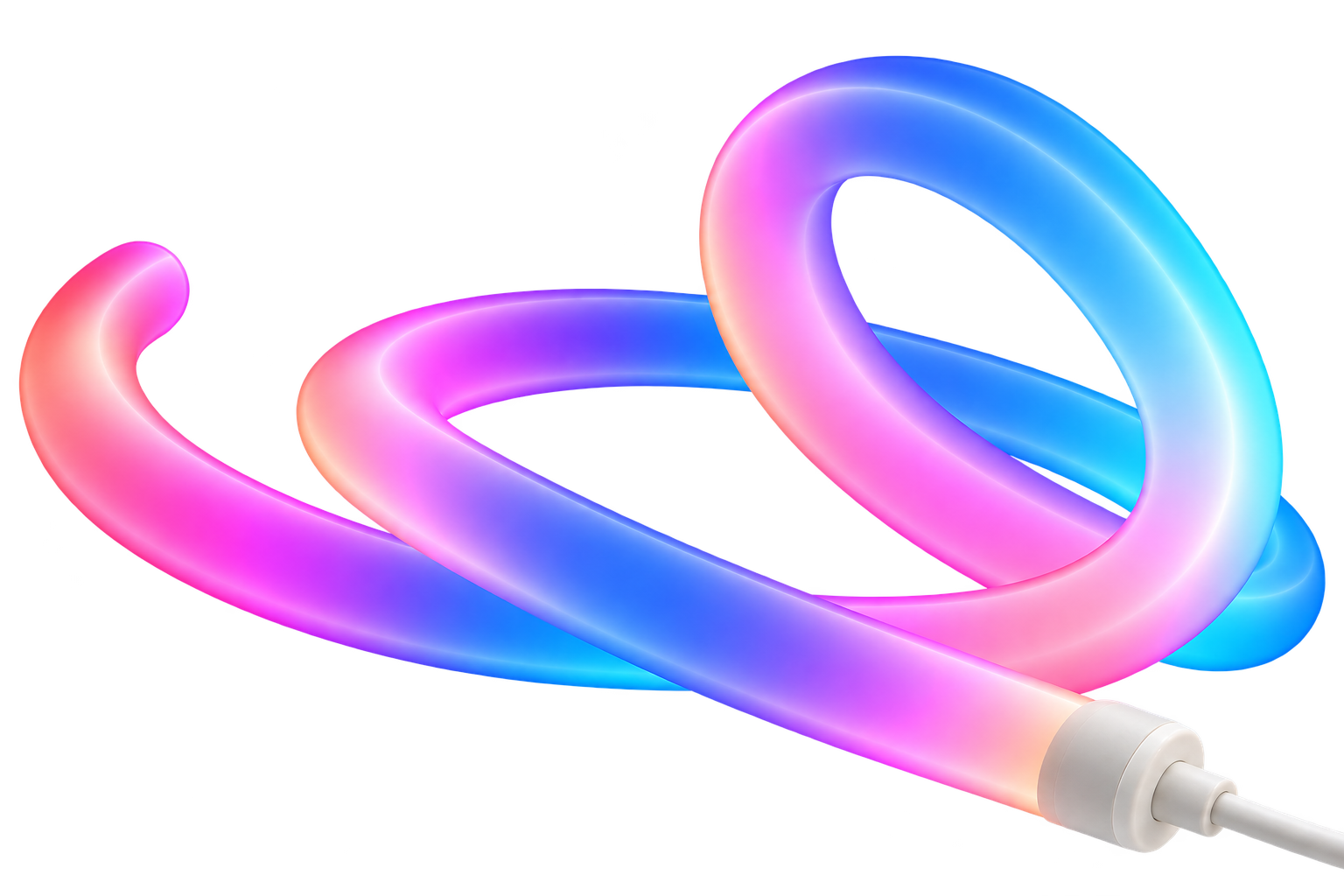

Reinforced Ø50 mm pixel neon: 21.7 px/m on X-Stream or 14 px/m on DMX, with 23 m runs. IP65.
RXN Rugged Neon Range · Common Use Cases
01

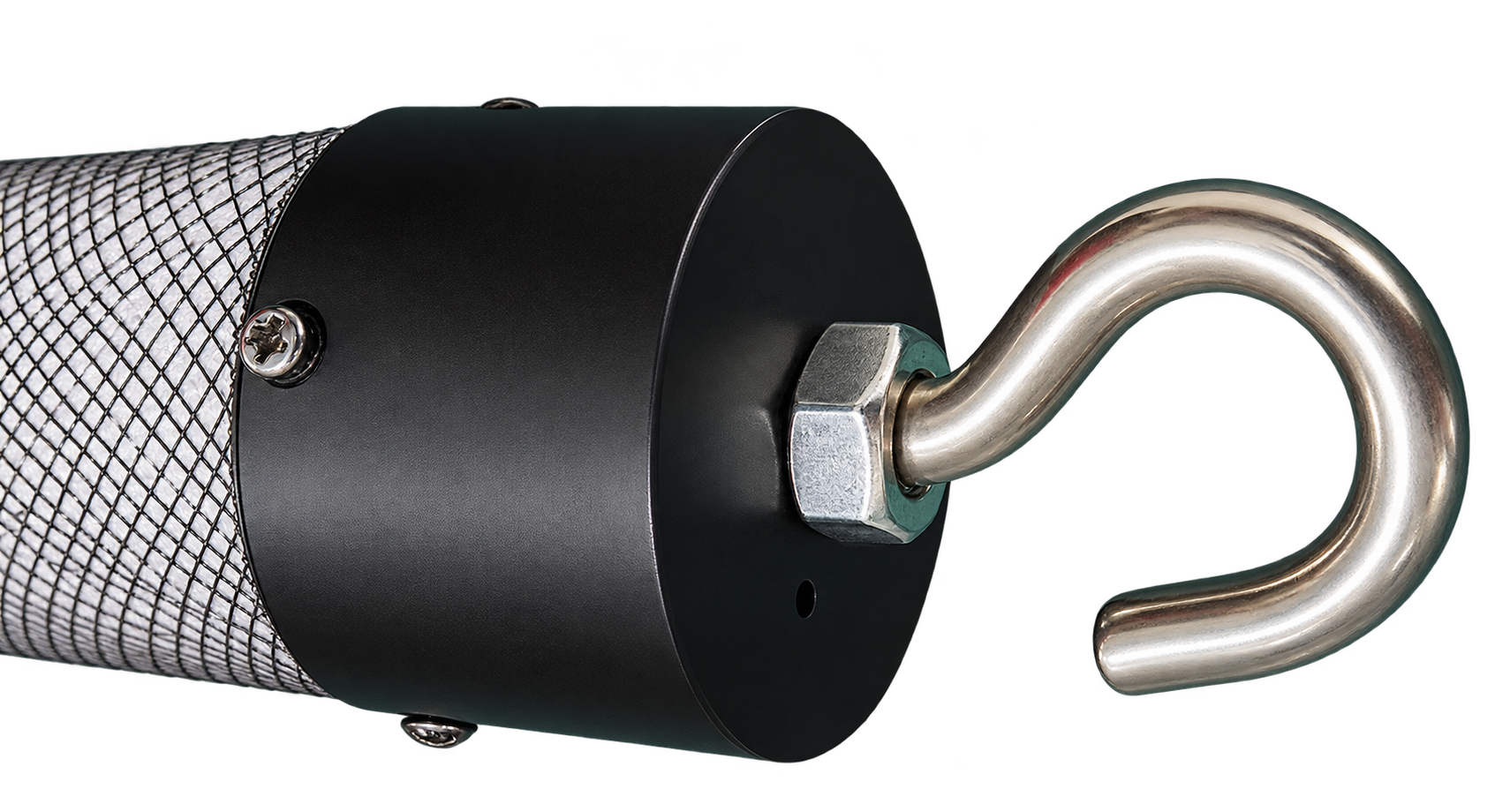

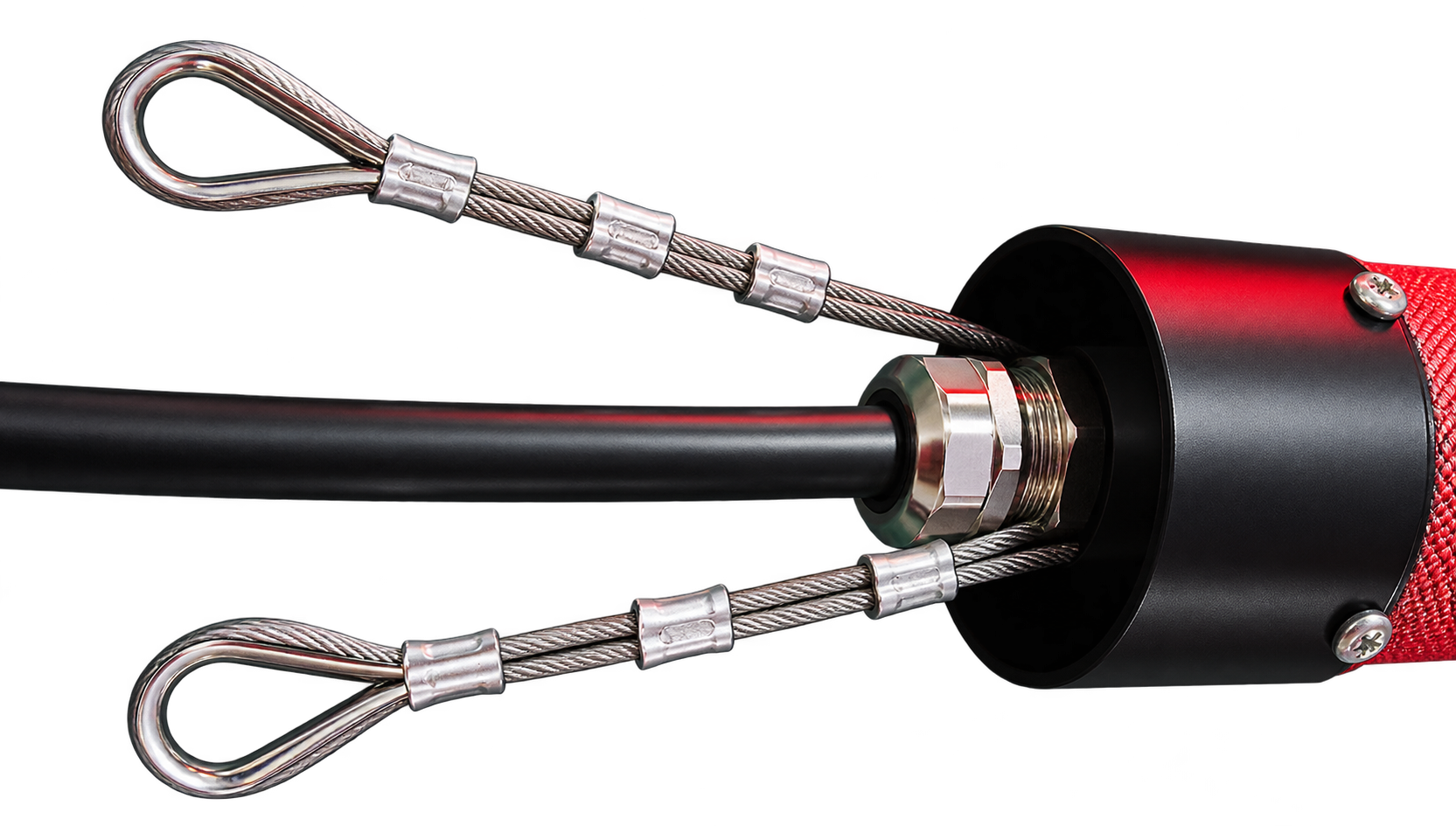

Strain relief sits inside the extrusion: an internal steel wire in RXN 13, 35H and 50H, and PET tape with monofilament threading in RXN 25. A hook accessory is available on every model, with stainless steel wire rope on RXN 25, 35H and 50H.
02
Every model gives a 360° viewing angle from RGBW pixels, at 10 to 21.7 pixels per metre depending on size and protocol.
03
Every model is rated IP65. RXN 13 and 25 operate from −40°C to +60°C; RXN 35H and 50H from −20°C to +60°C.
04
White options run from 3000K to 6500K alongside RGB. RXN 25, 35H and 50H reach 20 to 23 m from a single end feed.
RXN Rugged Neon Range · Specification Sheets
RXN Rugged Neon Range · Mounting & Add-Ons
Common questions, answered.
