Long Range Receiver

Paired with an MX96PRO, the SX2 receives differential long-distance data from up to 300 m away and converts it into a pixel-ready signal — up to 12 universes of clocked or data-only pixels, across two individually fused outputs.

  • Universes12
  • Outputs2 fused
  • RangeUp to 300 m
  • Power in5–24 V DC
Download Datasheet View Specifications

Two outputs, each on its own fuse

SX2 capacity and protection per pixel output
Specification Per output
Universes 6
Max pixels, RGB 1020
Max pixels, RGBW 768
Max output current 7.5 A

Six universes on each of the two outputs — 12 across the receiver. Each output is protected by its own mini blade fuse, the two that lift clear of the case above. Universe, pixel-protocol and channel limits are configured at the paired MX96PRO transmitter.

Full specifications

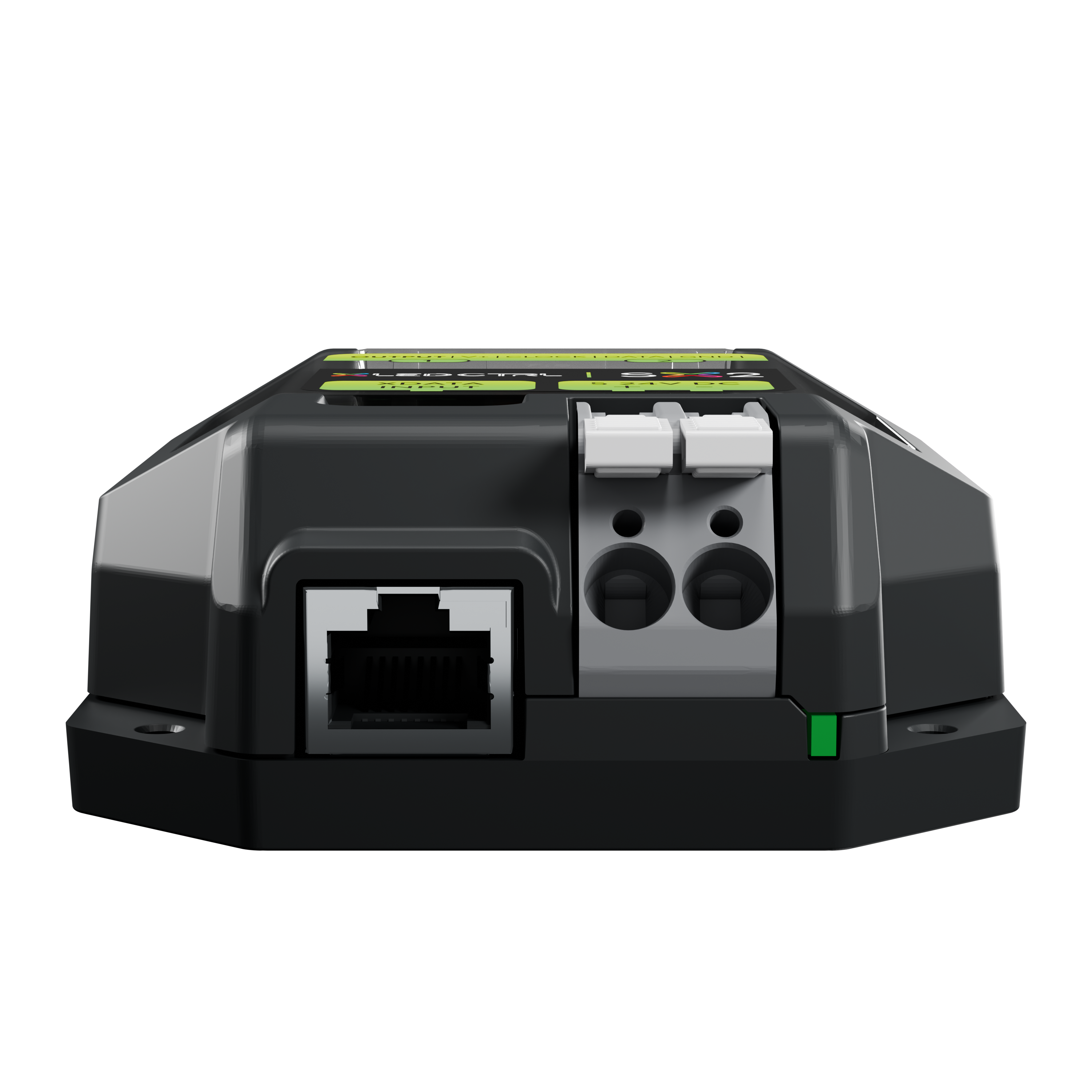

Front of the SX2 Long Range Receiver showing the RJ45 data input port, the two white lever-clamp power terminals, the green power indicator and the output terminals along the top edge

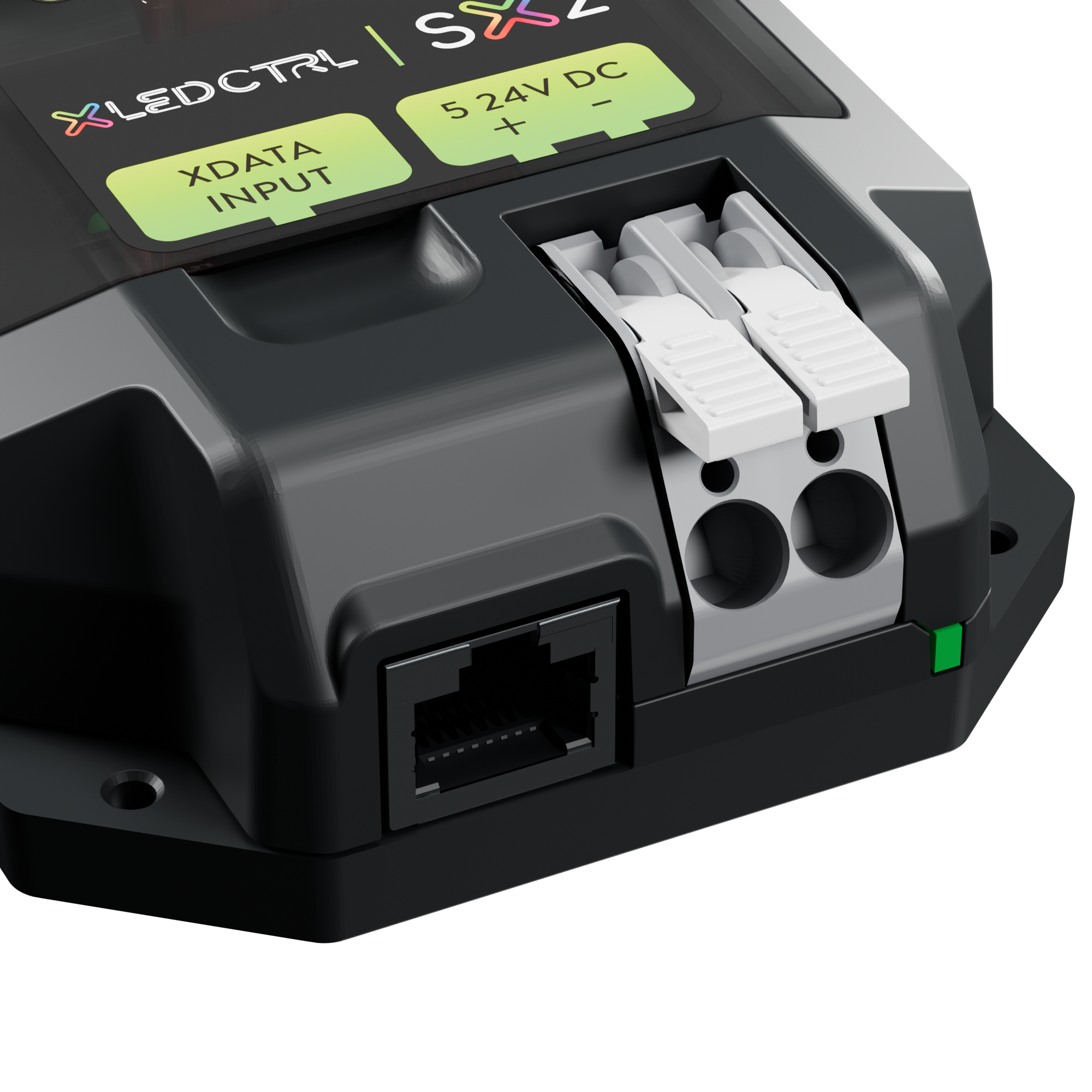

Close three-quarter view of the SX2 Long Range Receiver from the front left, showing the XDATA INPUT and 5–24 V DC markings on the top face, both white lever-clamp power terminals with their wire entries, the RJ45 data input below and the green power indicator

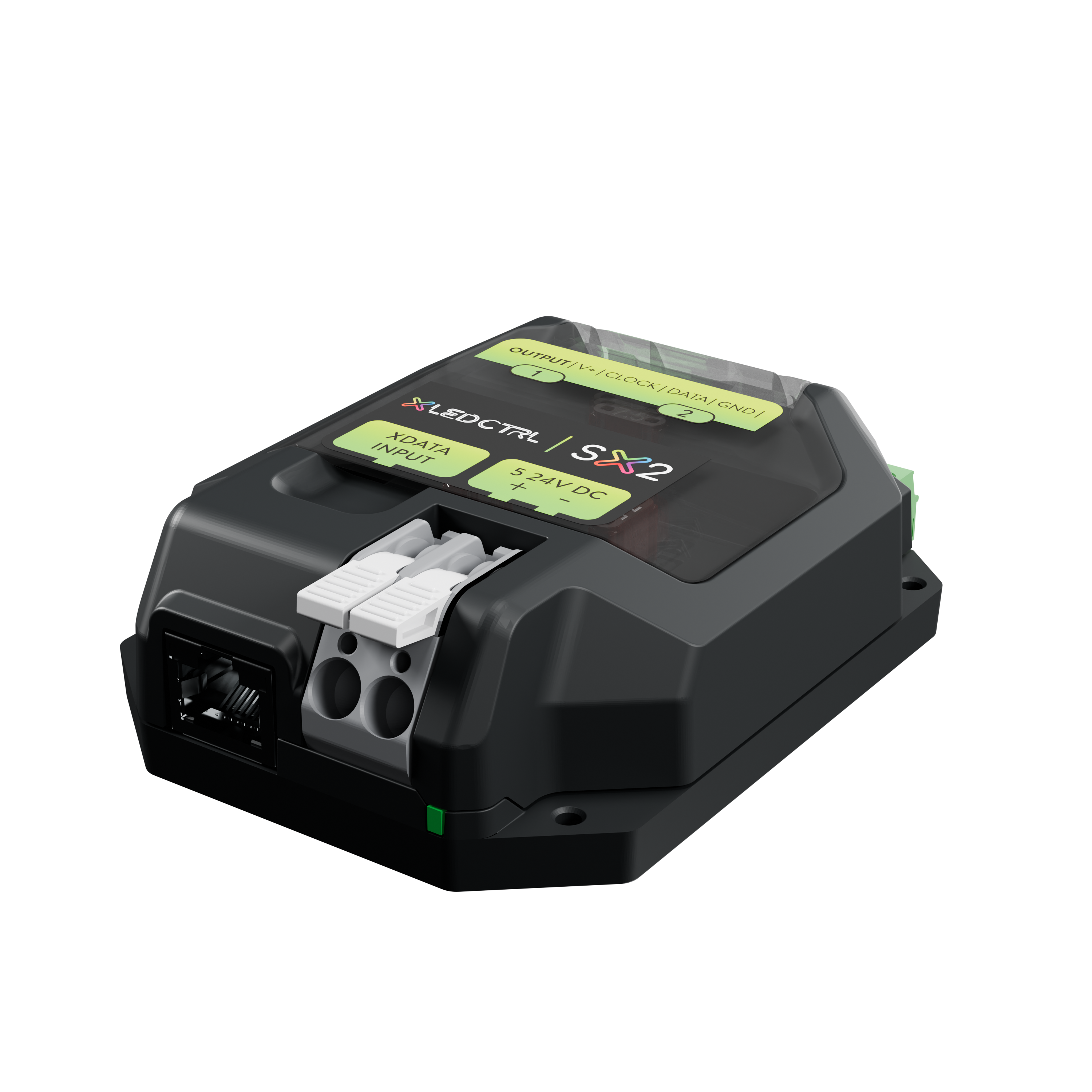

SX2 Long Range Receiver from above and to the right, showing the top face markings, the lever-clamp power terminals and RJ45 data input on the near face and a green output terminal at the far edge

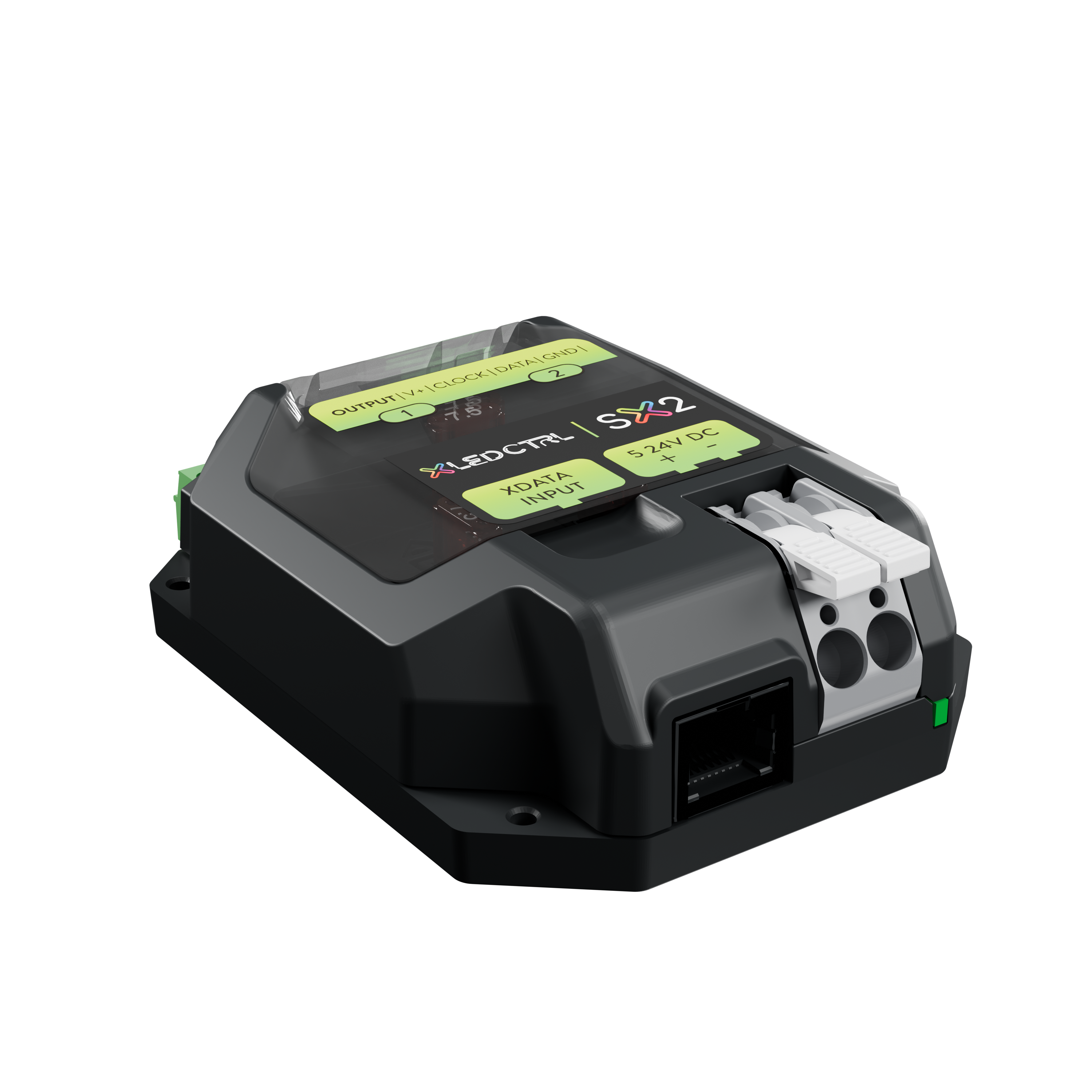

SX2 Long Range Receiver from above and to the left, showing the whole top face with its output legend, the two green output terminals along the far edge, the lever-clamp power terminals and the RJ45 data input on the near face

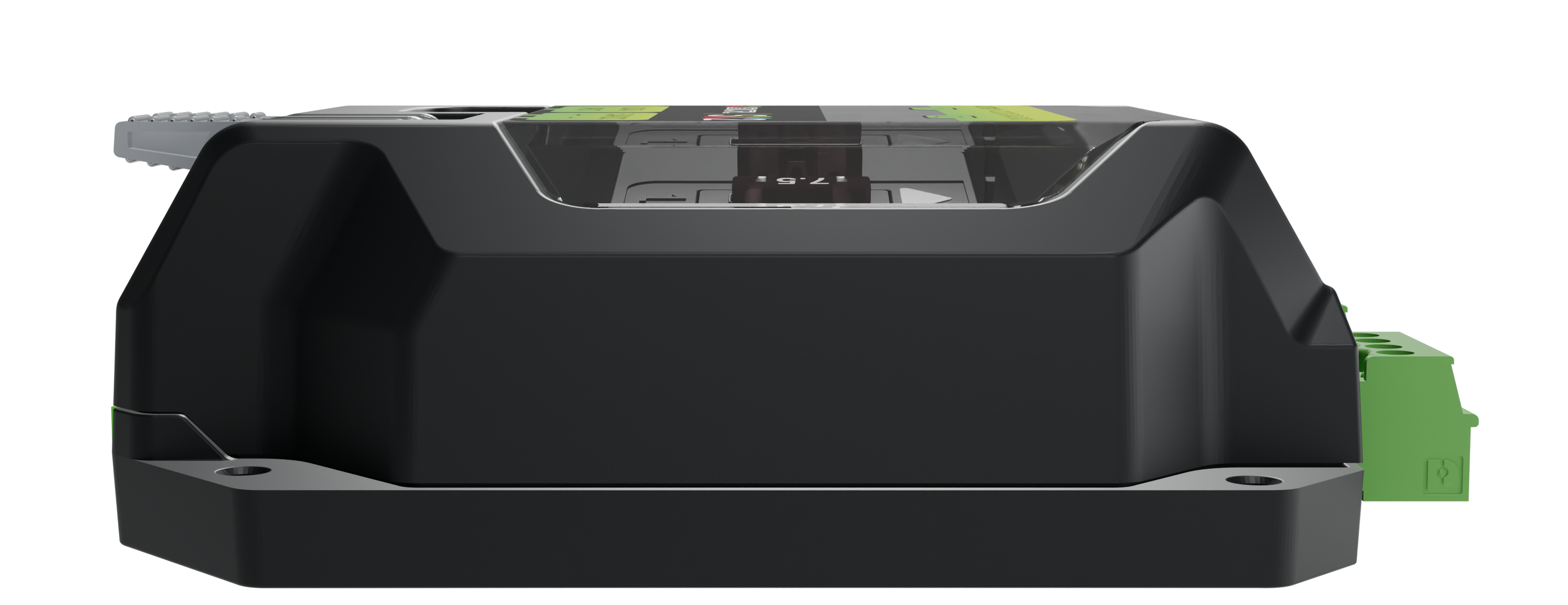

Side elevation of the SX2 Long Range Receiver showing the depth of the high-strength ABS case, a green output terminal at one edge and the moulded mounting flanges at each end

Mounting

Onto a wall, a plate, or a rail

The same enclosure does all three. Mounting holes take a wall or plate fixing directly, and the optional DIN Rail Mount Kit clips it onto rail instead. It is one receiver either way — the mounting changes, the hardware does not.

  • 95 × 78 × 33 mm Dimensions, L × W × H
  • 0.2 kg Weight
  • Wall, plate or DIN-rail Mounting, rail via optional accessory

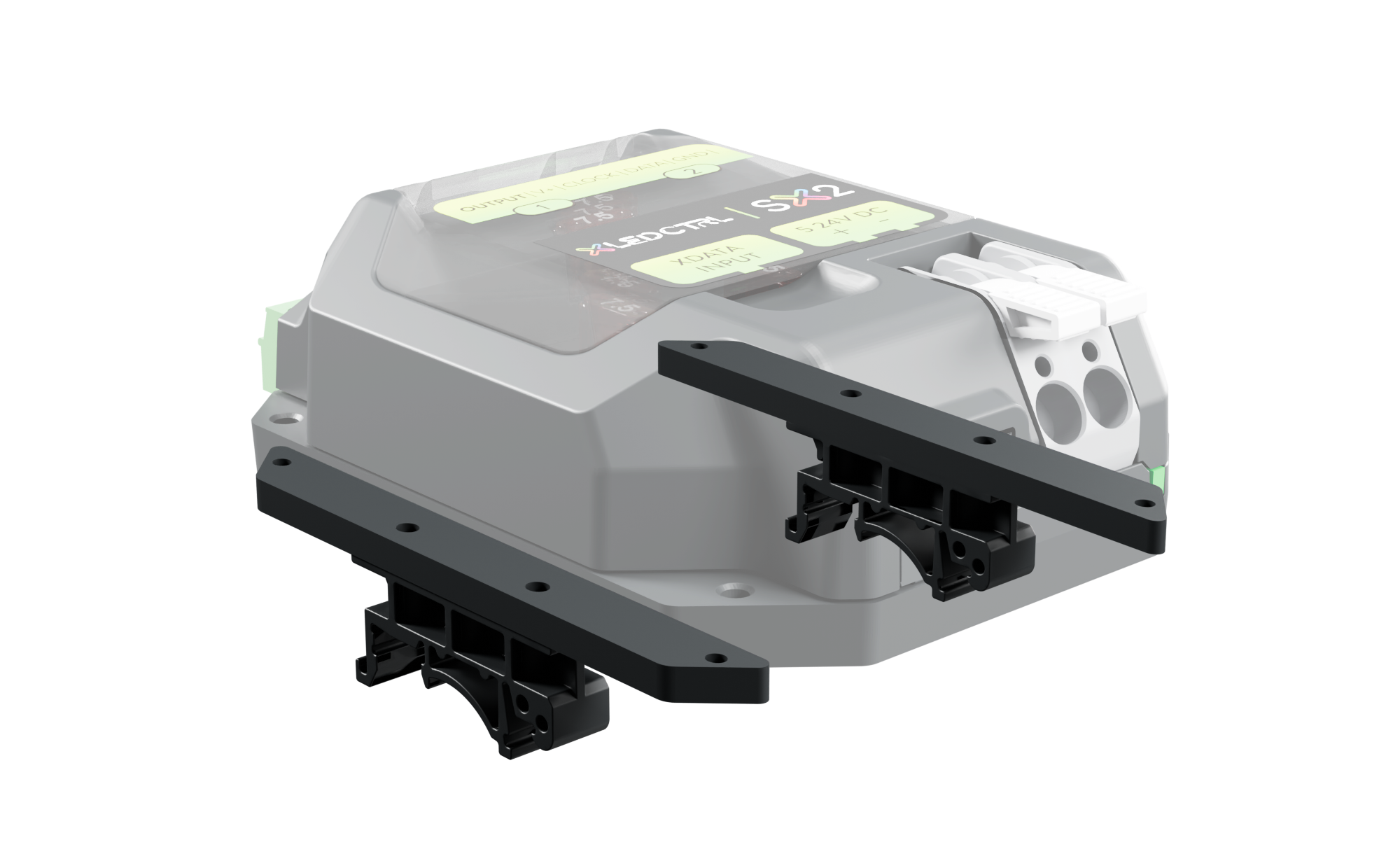

The SX2 Long Range Receiver with both DIN-rail mounting brackets fitted to its base, the receiver body faded back so the brackets and their rail clips read clearly

Installed

The far end of the run

One MX96PRO feeds up to eight SX2 receivers, each as far as 300 m of differential cable from the transmitter and within 15 m of its first pixel. Rail-mounted side by side in a remote enclosure, every receiver carries its own power input and its own two outputs.

  • 8 Receivers per MX96PRO
  • 300 m Transmitter to receiver
  • 15 m Receiver to first pixel

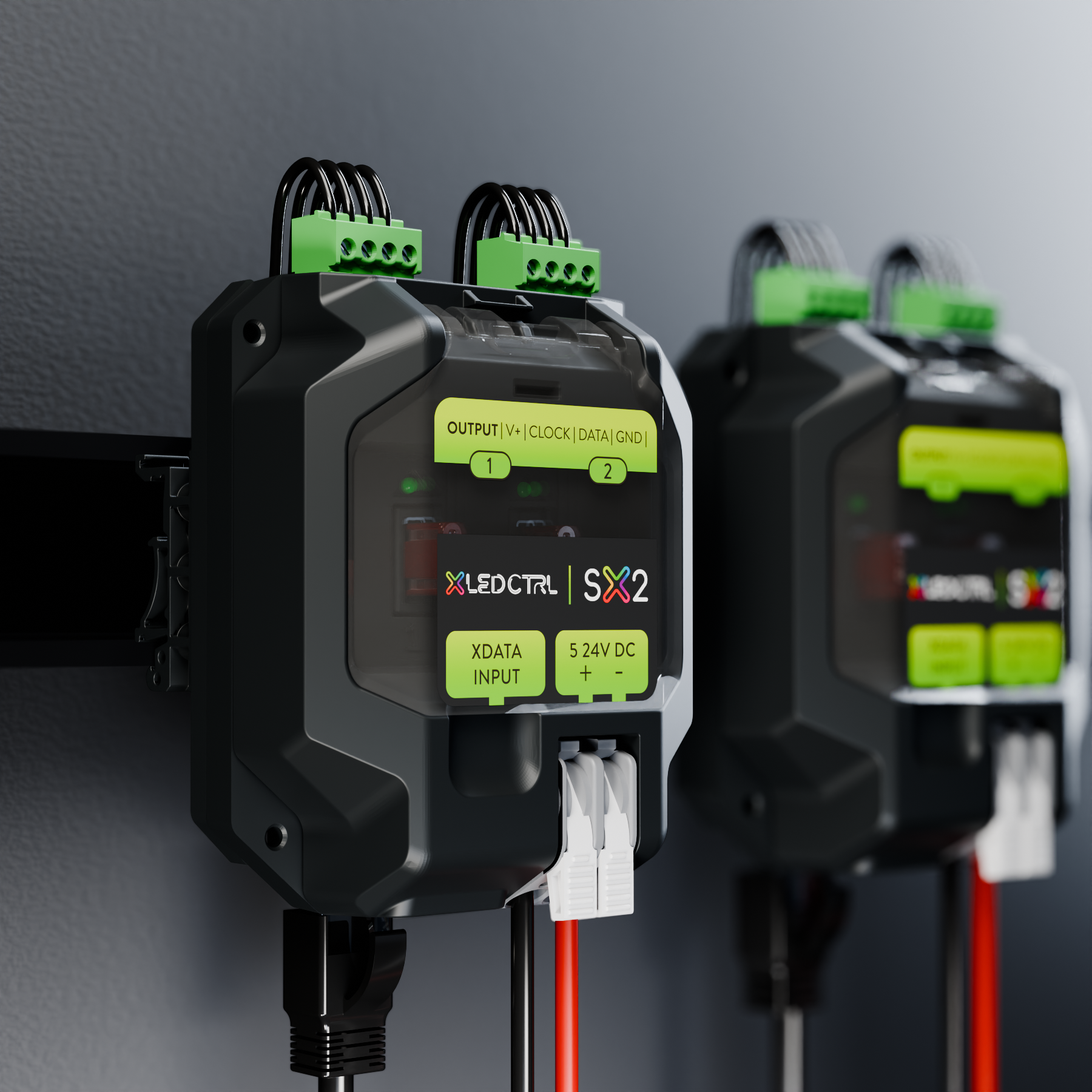

Two SX2 Long Range Receivers mounted side by side on DIN rail inside an equipment cabinet, pixel output terminal blocks wired along the top edge and the data input and quick-connect power clamps below

Key Specifications · SX2 Long Range Receiver

Pixel Data
Universes
12 Universes X-Data
Pixel Outputs 2 fused (clocked or data-only)
Max Pixels / Output 1020 RGB · 768 RGBW
Network & Control
Data Input X-Data from MX96PRO transmitter
Transmission Range Up to 300 m from transmitter
Compatible Transmitters MX96PRO
Output Protocols
X-Stream X-Stream
SPI SPI
Power
Input Voltage 5–24 V DC
Per Output Current Limit 7.5 A (mini blade fuse)
Fault Protection
Data Input Protection ±24 V DC fault protection
Pixel Output Clock/Data ±24 V DC fault protection
Pixel Output Power Over-current and short-circuit protection
Electrostatic Discharge (ESD) Protection on all pixel outputs and data input
Physical
Dimensions 95 × 78 × 33 mm
Weight 0.2 kg
Enclosure High-strength ABS · black
Mounting Wall, plate or DIN-rail (optional accessory)
Operating Temp. −20°C to +55°C
Warranty
Warranty 5 Years (Extendable Warranty Available)

Note: Specifications listed for quick evaluation and integration planning. Universe, pixel-protocol and channel limits per receiver are configured at the paired MX96PRO transmitter.

Overall Dimensions
SX2 overall dimensions
Mounting Dimensions
SX2 mounting dimensions

Downloads

SX2 Long Range Receiver Downloads

Specifications

SX2_Receiver_Specifications_Sheet.pdf

In the Box

  • SX2
  • Installation Guide

Accessories

SX2 Long Range Receiver Accessories

Mounting 1

DIN Rail Mount Kit
DIN Rail Mount Kit Clip-on mounting kit for rapid DIN-rail installations of the SX2.

Compare

The rest of the hardware

Every LED CTRL hardware product, side by side. A dash means the datasheet does not state it, or the row does not apply to that kind of device.

Scroll the table sideways →
LED CTRL hardware compared across capacity, network, power, physical and environmental specifications
Product PX24 Pixel controller MX96PRO Long-range transmitter SX2 You are here Long-range receiver SX4 Long-range receiver CX10 Compute unit CX24 Compute unit CX64 Compute unit DX10 DMX / RDM gateway DSX2 DMX / RDM splitter DSX4 DMX / RDM splitter DSX6 DMX / RDM splitter DSX8 DMX / RDM splitter TX10 Trigger panel PXTR SPI booster pair
Universes 24 96 12 12 10 (licence) 24 (licence) 64 (licence) 10 — — — — — —
Pixel outputs 4 e-fused — 2 fused 4 fused — — — — — — — — — —
Max RGB pixels / output 1020 normal · 510 expanded — 1020 510 — — — — — — — — — —
Max RGBW pixels / output 768 normal · 384 expanded — 768 384 — — — — — — — — — —
Control protocols Art-Net · sACN Art-Net · sACN — — Art-Net Art-Net Art-Net Art-Net · sACN · ESP DMX-512 · RDM DMX-512 · RDM DMX-512 · RDM DMX-512 · RDM DMX —
Pixel protocols 60+ 70+ Set at transmitter Set at transmitter — — — — — — — — — —
Ethernet ports 2 × 10/100/1000 2 × 10/100/1000 — — 1 × 1000, 1 × 100 1 × 1000, 1 × 100 1 × 1000, 1 × 100 1 in (RJ45) — — — — — —
Dedicated data outputs — 8 × RJ45 — — — — — 10 + 2 DMX/RDM (RJ45) 2 isolated DMX/RDM + 1 Thru 4 isolated DMX/RDM + 1 Thru 6 isolated DMX/RDM + 1 Thru 8 isolated DMX/RDM + 1 Thru — —
Auxiliary port 1 × RS485 in/out 1 × RS485 in/out — — 2 × RS485, 2 × RS232 2 × RS485, 2 × RS232 2 × RS485, 2 × RS232 — — — — — — —
MicroSD card slot 1 1 — — 1 1 1 — — — — — — —
Range — Up to 300 m to receivers Up to 300 m from transmitter Up to 300 m from transmitter — — — — — — — — — Up to 100 m (SPI extension)
Input power 5–24 V DC 100–240 V DC 5–24 V DC 5–24 V DC 9–36 V DC 9–36 V DC 9–36 V DC 12–24 V DC or PoE 100–277 V AC 100–277 V AC 100–277 V AC 100–277 V AC 12–24 V DC 12–48 V DC
Per output current limit 7 A — 7.5 A (mini blade fuse) 7.5 A (mini blade fuse) — — — — — — — — — —
Device current rating — — — — — — — — — — — — — 6 A max, each unit
Total current 28 A — — — 24 W max 24 W max 24 W max — — — — — — —
Fault protection ESD all ports · ±36 V clock/data · ±48 V aux · reverse polarity ESD all ports · ±36 V data out · ±48 V aux ESD · ±24 V data and clock/data · over-current ESD · ±24 V data and clock/data · over-current ESD and surge on I/O ESD and surge on I/O ESD and surge on I/O Surge and reverse polarity on power — — — — — —
Dimensions 126.5 × 119 × 42 mm 221 × 169 × 42 mm 95 × 78 × 33 mm 95 × 78 × 33 mm 258 × 172 × 42 mm 258 × 172 × 42 mm 258 × 172 × 42 mm 200 × 120 × 42 mm 165 × 88.5 × 76.5 mm 165 × 88.5 × 76.5 mm 256 × 88.5 × 76.5 mm 256 × 88.5 × 76.5 mm 85.5 × 85.5 × 15 mm —
Weight 0.3 kg 1.1 kg 0.2 kg 0.2 kg 1.2 kg 1.2 kg 1.2 kg 0.46 kg — — — — — —
Enclosure Aluminium + ABS Aluminium High-strength ABS High-strength ABS — — — ABS + anodised aluminium Sheet metal, black powder coat Sheet metal, black powder coat Sheet metal, black powder coat Sheet metal, black powder coat Aluminium —
Mounting Wall & DIN-rail Panel, wall & rack Wall, plate or DIN-rail Wall, plate or DIN-rail Table or wall, VESA bracket Table or wall, VESA bracket Table or wall, VESA bracket Rack, surface or DIN DIN rail (35 mm) DIN rail (35 mm) DIN rail (35 mm) DIN rail (35 mm) Built-in —
IP rating — — — — — — — IP20 IP20 IP20 IP20 IP20 IP20 IP20
Ambient operating temperature −20 °C to +70 °C −10 °C to +60 °C −20 °C to +55 °C −20 °C to +55 °C −20 °C to +60 °C −20 °C to +60 °C −20 °C to +50 °C −20 °C to +50 °C −20 °C to +60 °C −20 °C to +60 °C −20 °C to +60 °C −20 °C to +60 °C −30 °C to +50 °C —

Frequently Asked Questions

9 Questions

Common questions, answered.

It drives 12 universes across two individually-fused outputs, each up to 1020 RGB or 768 RGBW pixels.
It receives X-Data from an MX96PRO transmitter over distances up to 300 m.
It outputs over X-Stream and SPI, and its two outputs can run clocked or data-only.
Each output is fused to 7.5 A via a mini blade fuse. Beyond the fuses, the pixel output power lines carry over-current and short-circuit protection, the clock and data lines carry ±24 V DC fault protection, and every pixel output and the data input are ESD protected.
Up to eight receivers per MX96PRO, each as far as 300 m from the transmitter and within 15 m of its first pixel.
The SX2 and an Installation Guide. The DIN-rail mounting accessory is ordered separately.
The SX2 runs on 5–24 V DC.
It mounts on wall, plate or DIN-rail (optional accessory) in a high-strength black ABS enclosure measuring 95 × 78 × 33 mm at 0.2 kg.
It operates from −20°C to +55°C.
