Models

14 Models
Filter by Type
01–03 CX Series

Standalone Compute Units

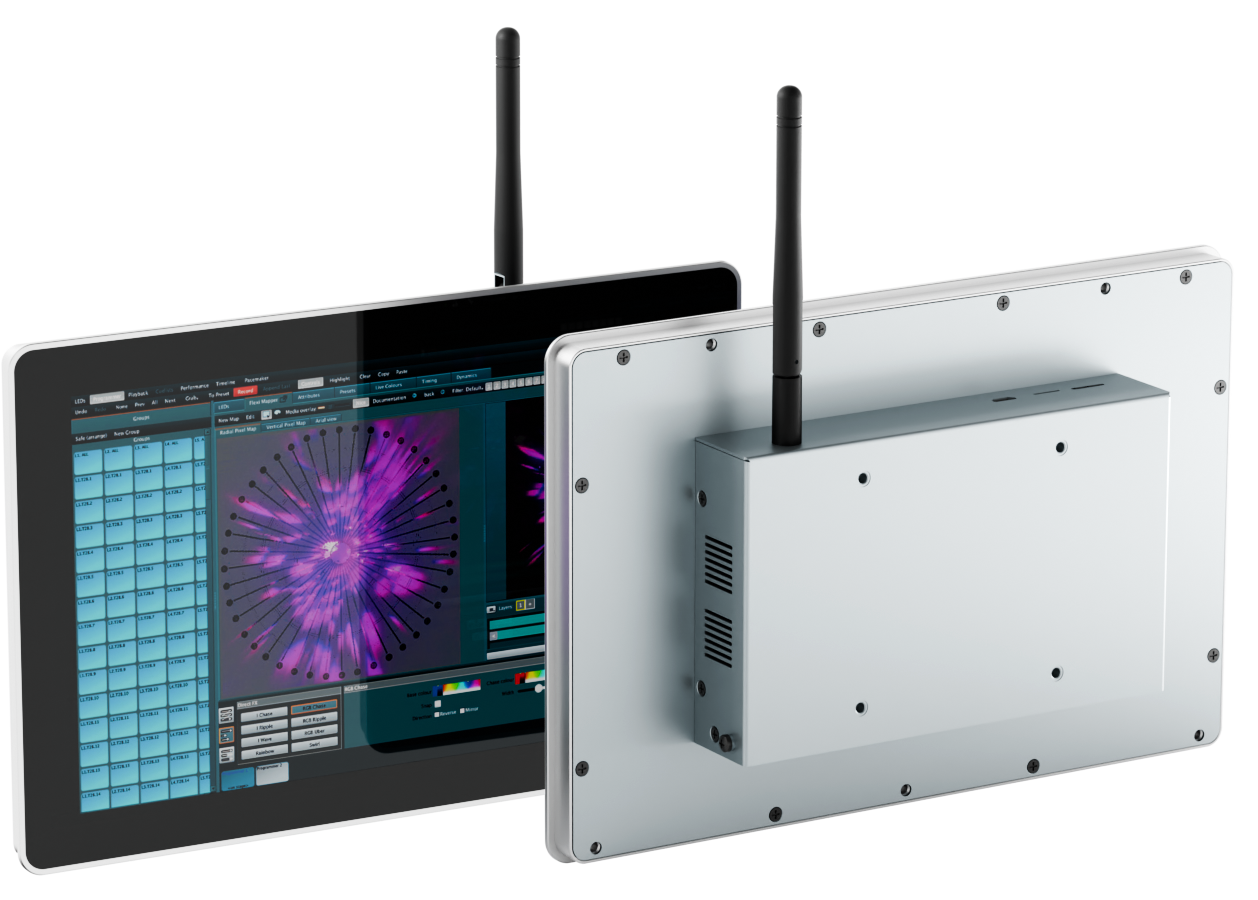

All-in-one compute platform: a capacitive touchscreen, dual-band Wi-Fi/Bluetooth and dual Ethernet in a small VESA-mountable enclosure, pre-configured with LED CTRL software and an Art-Net license.

Touchscreen
10.1″ capacitive
Wireless
Wi-Fi + Bluetooth
Ethernet
1× Gigabit + 1× 100M
CX10 Art-Net License10 Universes View CX24 Art-Net License24 Universes View CX64 Art-Net License64 Universes View

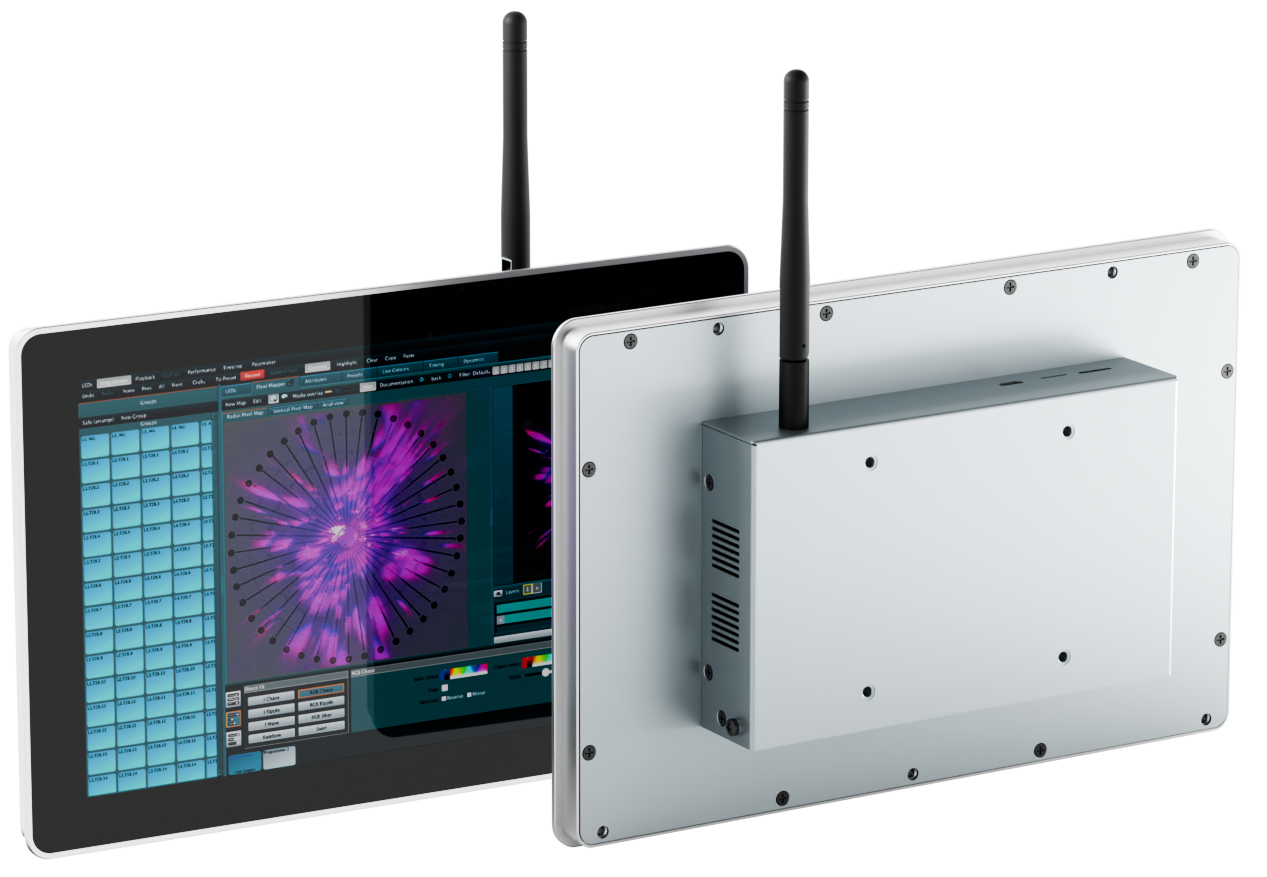

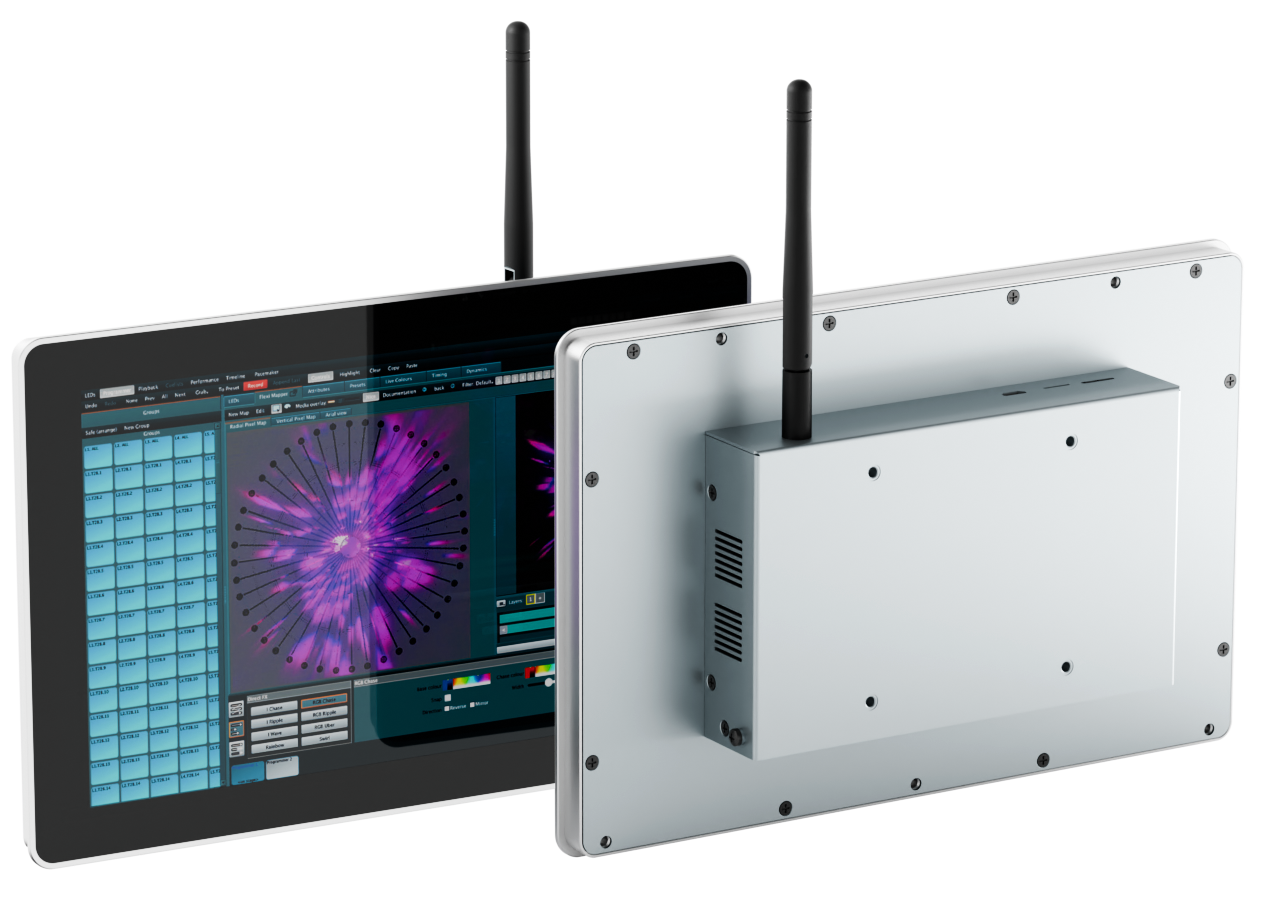

CX10 Compute Unit
04 PX24

Pixel Controller

Pixel-mapped controller with 24-universe output. Drives X-Stream, DMX, and SPI fixtures from a single feed.

Universes
24 (Art-Net / sACN)
Pixel Outputs
4 Powered
Protocols
DMX · X-Stream · SPI
Explore PX24

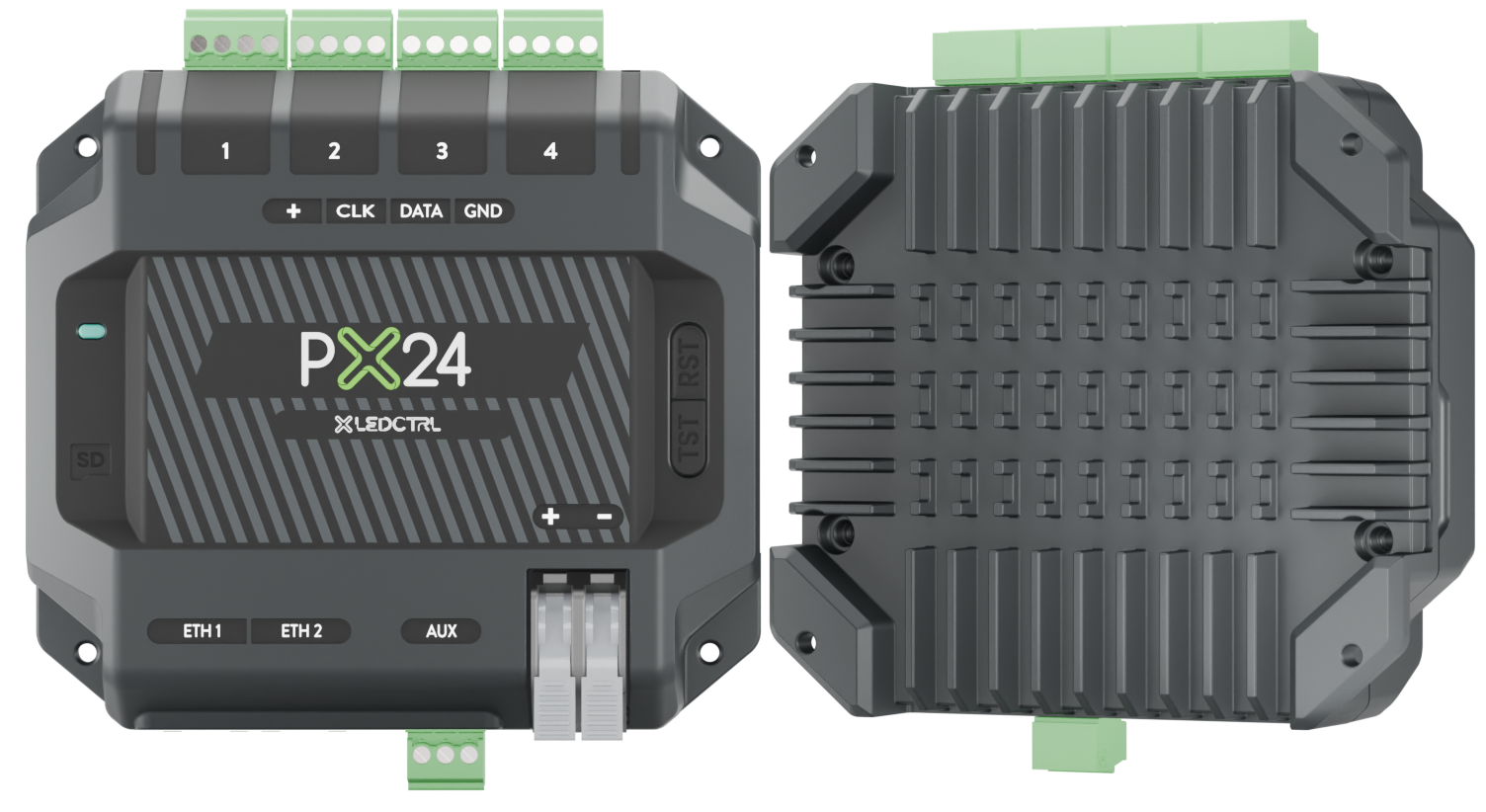

PX24 Pixel Controller
05 MX96PRO

Long Range Transmitter

Flagship 96-universe long-range transmitter — the backbone of full-site X-Stream networks.

Universes
96 (Art-Net / sACN)
Pixel Outputs
16
Receiver Outputs
8× RJ45 X-Data
Explore MX96PRO

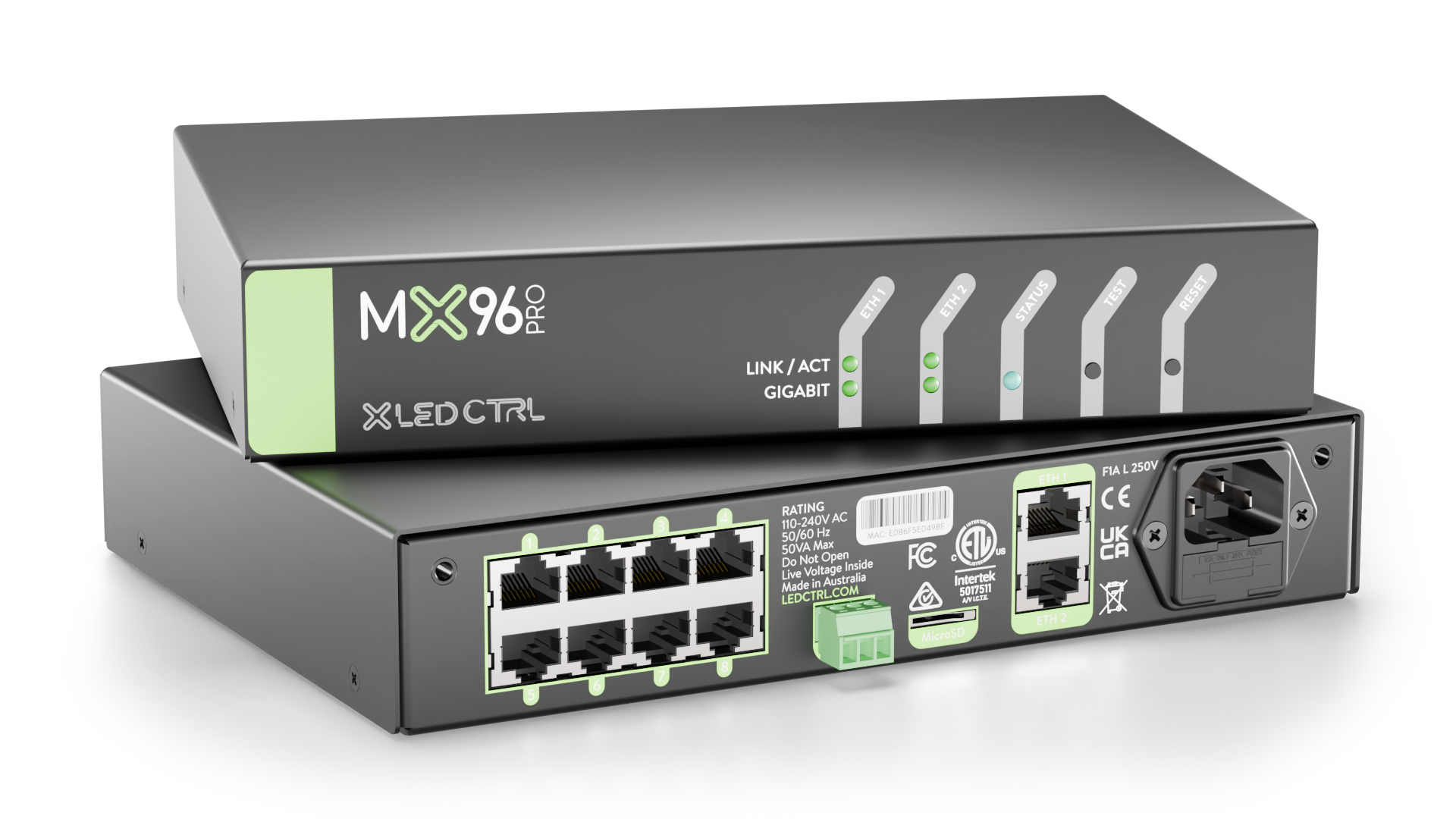

MX96PRO Long Range Transmitter
06–09 DSX Series

Isolated DMX/RDM Splitters

One DMX/RDM input to two, four, six or eight optically isolated outputs, with a passive Thru port and full RDM support. DIN-rail mounted and powered straight from 100–277 V AC mains.

Protocol
DMX-512 / RDM
Isolation
Optical
Power
100–277 V AC
DSX2 Isolated Outputs2 View DSX4 Isolated Outputs4 View DSX6 Isolated Outputs6 View DSX8 Isolated Outputs8 View
DSX2 Isolated DMX/RDM Splitter
10 SX2

Long Range Receiver

Long-range X-Stream receiver for distributing pixel data over extended site cabling.

Universes
12
Pixel Outputs
2 fused
Range
Up to 300 m
Explore SX2

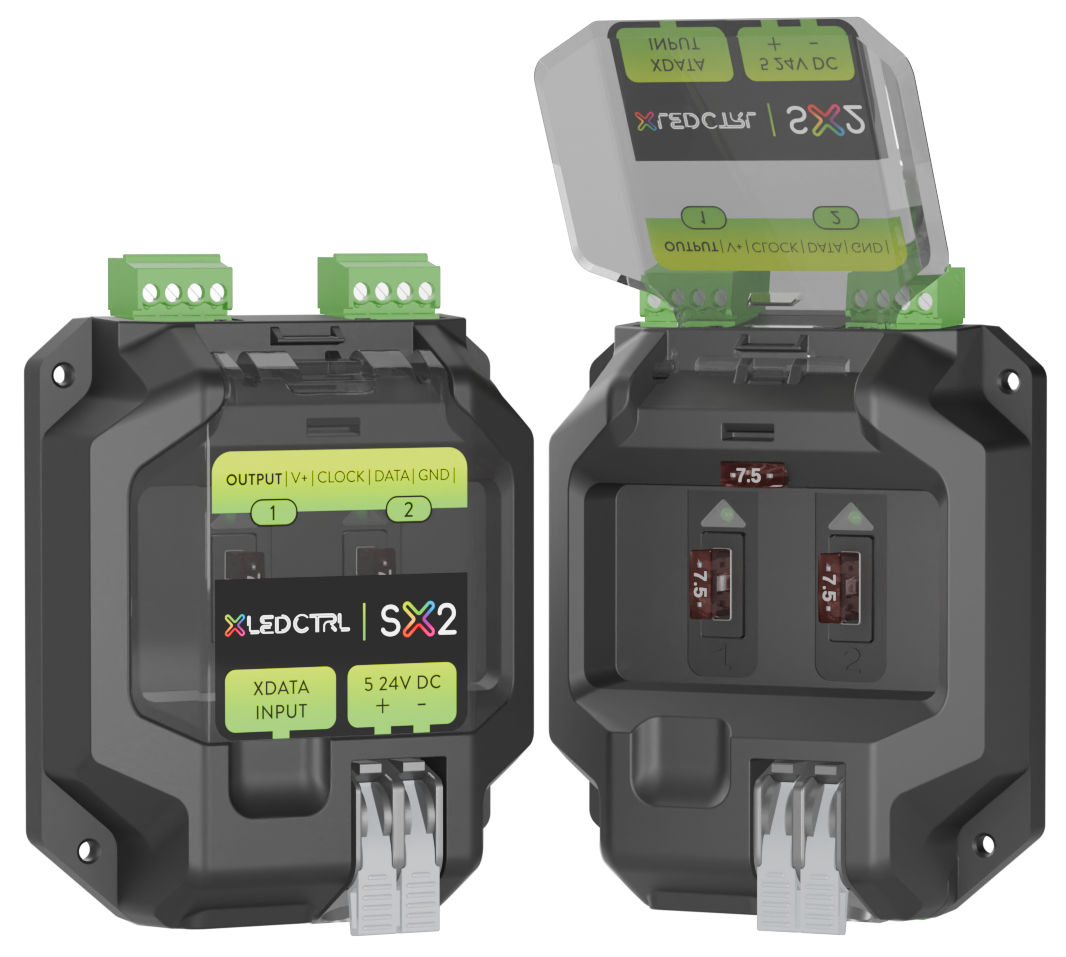

SX2 Long Range Receiver
11 SX4

Long Range Receiver

Higher-density long-range receiver — four fused outputs at lower per-output density, spreading pixels across more runs.

Universes
12
Pixel Outputs
4 fused
Range
Up to 300 m
Explore SX4

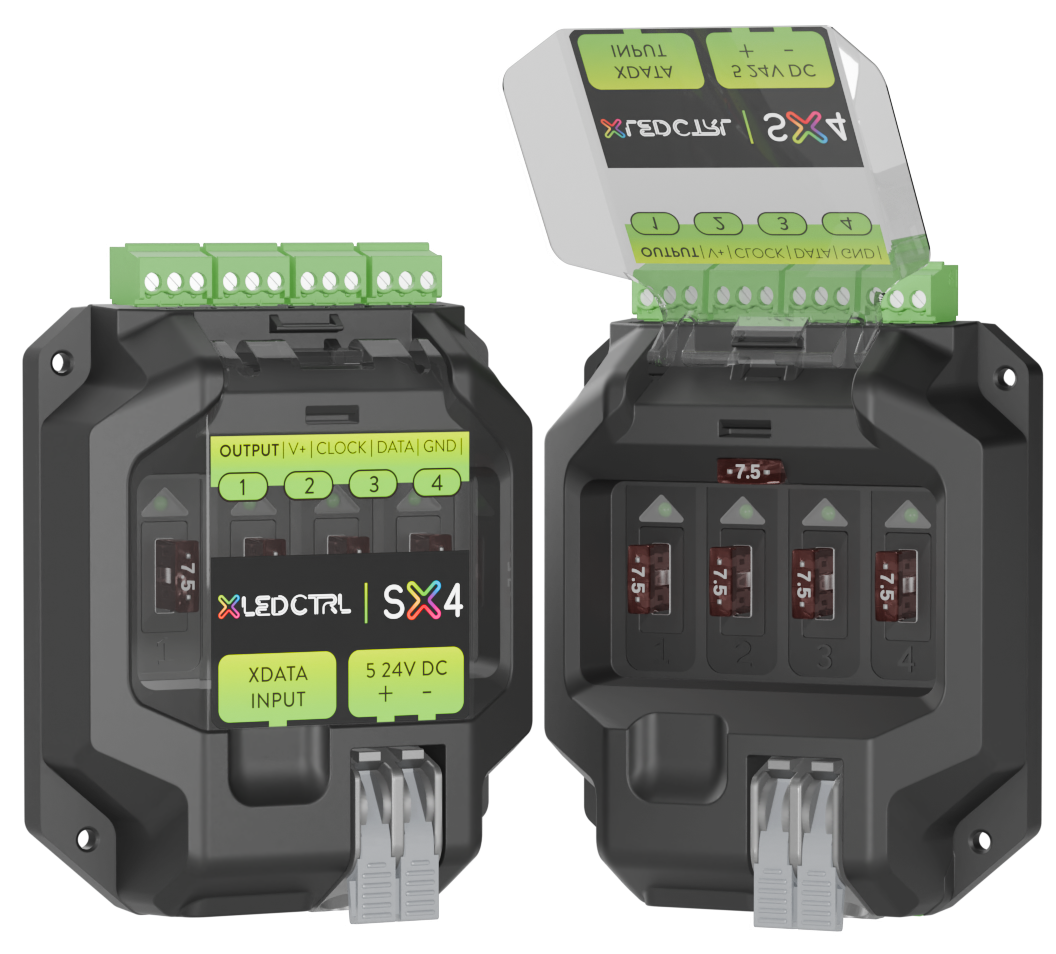

SX4 Long Range Receiver
12 PXT/R

Booster

Pixel network booster pair — repeats data across long runs without signal dropout.

Range
Up to 100 m
Signal
SPI / X-Stream
Input Voltage
12–48 V DC
Explore PXT/R

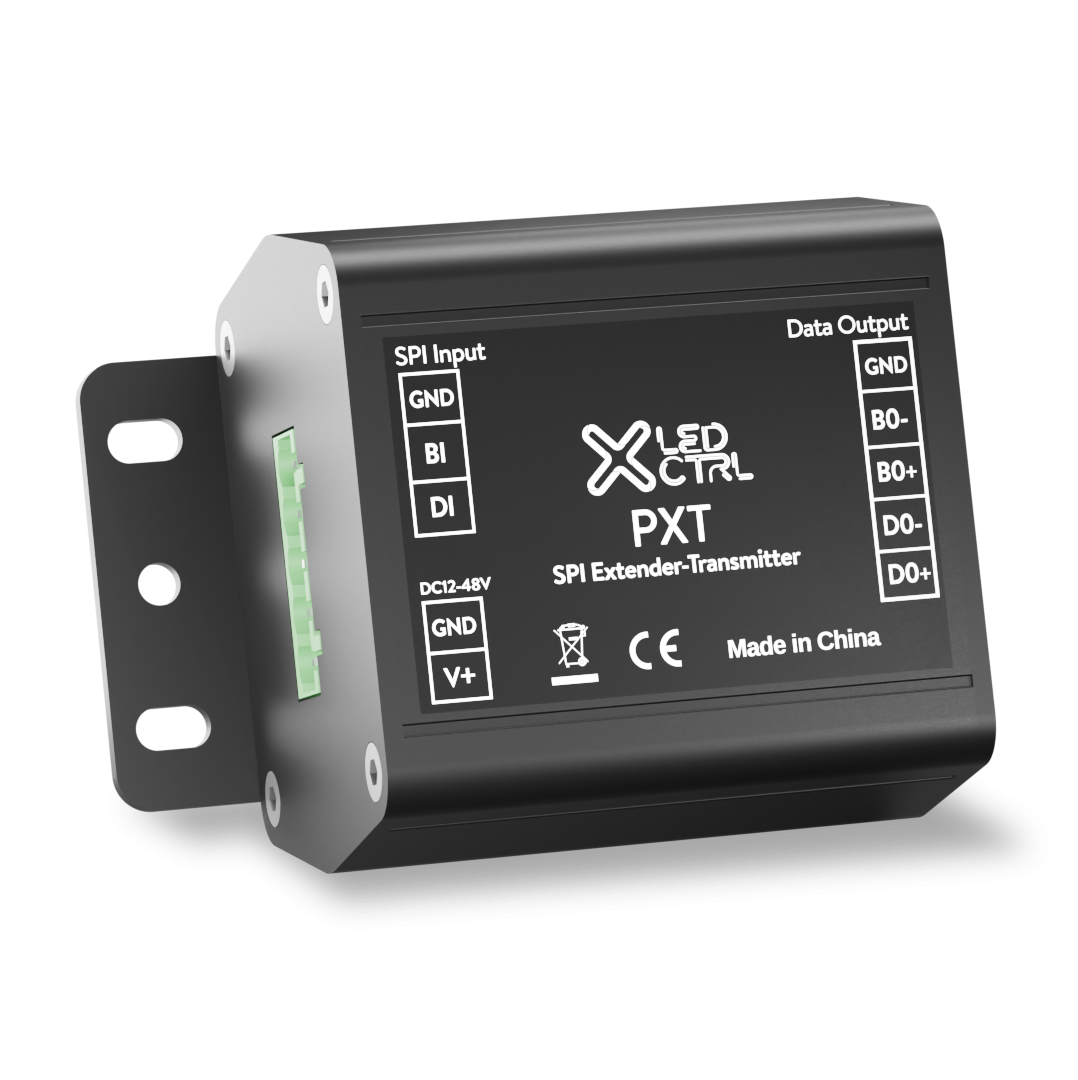

PXT/R Booster
13 DX10

Ethernet/DMX Converter

Ten-port Ethernet-to-DMX/RDM converter — splits Art-Net and sACN streams into discrete DMX-512 lines.

Universes
10 (Art-Net / sACN / ESP)
Output Ports
12 DMX/RDM RJ45
Output
DMX512 · RDM
Explore DX10

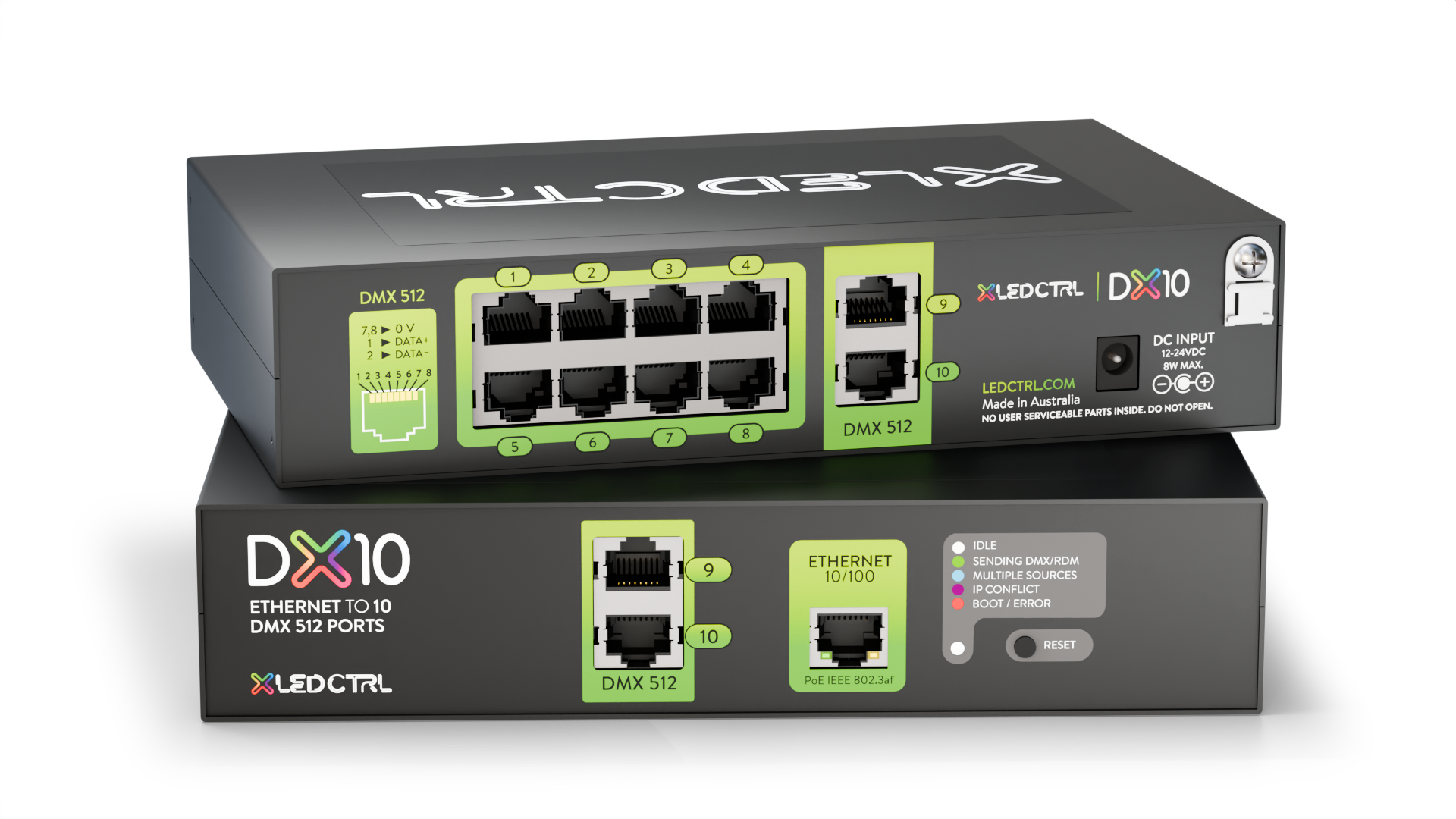

DX10 Ethernet/DMX Converter
14 TX10

Touch Trigger

Wall-mount touch trigger for cue recall, zone selection, and on-site control of LEDCTRL hardware.

Control
DMX
Channels
9 DMX channels
Works With
PX24 · MX96PRO
Explore TX10

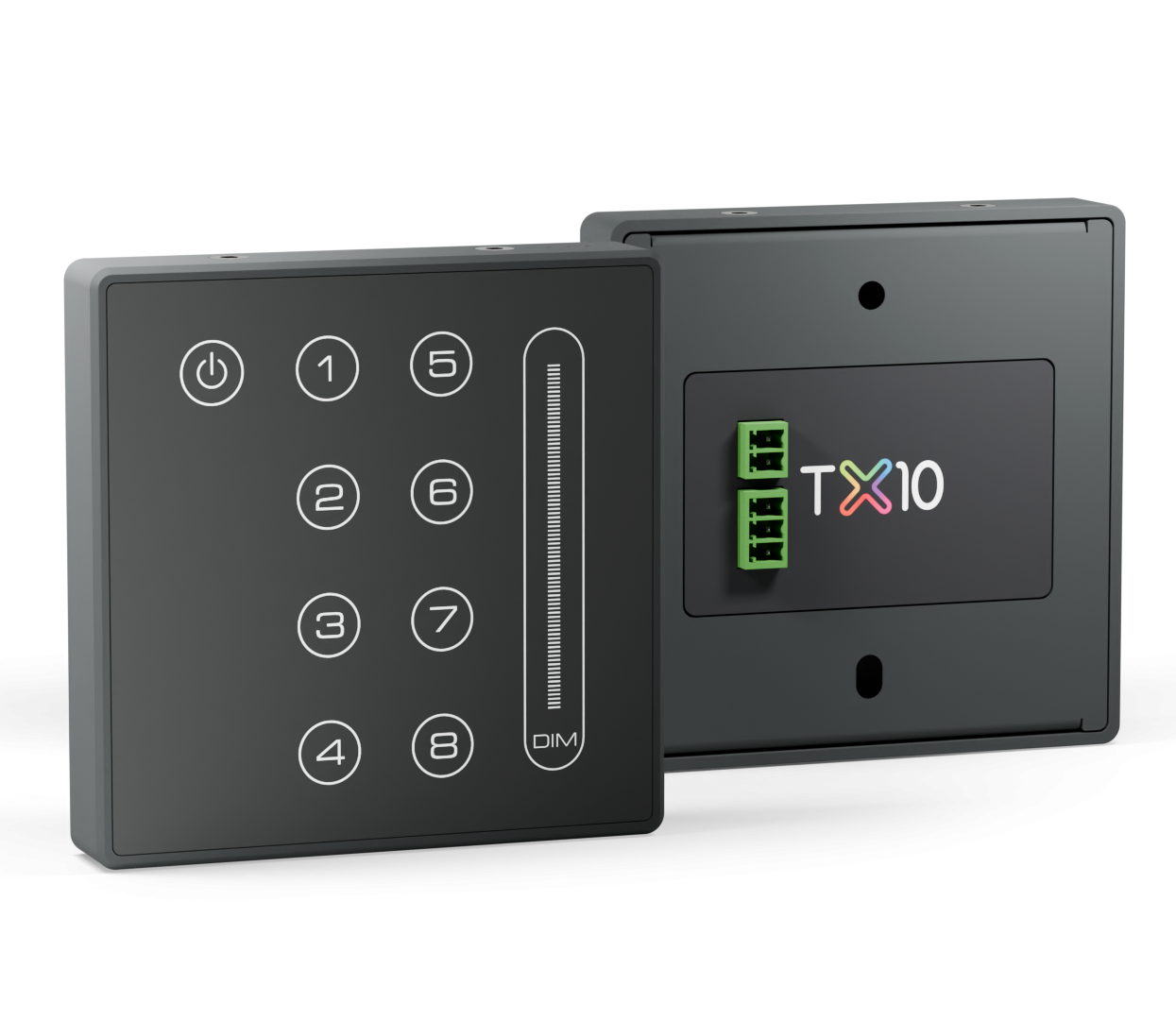

TX10 Touch Trigger

Compare

The rest of the hardware

Every LED CTRL hardware product, side by side. A dash means the datasheet does not state it, or the row does not apply to that kind of device.

Scroll the table sideways →
LED CTRL hardware compared across capacity, network, power, physical and environmental specifications
Product PX24 Pixel controller MX96PRO Long-range transmitter SX2 Long-range receiver SX4 Long-range receiver CX10 Compute unit CX24 Compute unit CX64 Compute unit DX10 DMX / RDM gateway DSX2 DMX / RDM splitter DSX4 DMX / RDM splitter DSX6 DMX / RDM splitter DSX8 DMX / RDM splitter TX10 Trigger panel PXTR SPI booster pair
Universes 24 96 12 12 10 (licence) 24 (licence) 64 (licence) 10 — — — — — —
Pixel outputs 4 e-fused — 2 fused 4 fused — — — — — — — — — —
Max RGB pixels / output 1020 normal · 510 expanded — 1020 510 — — — — — — — — — —
Max RGBW pixels / output 768 normal · 384 expanded — 768 384 — — — — — — — — — —
Control protocols Art-Net · sACN Art-Net · sACN — — Art-Net Art-Net Art-Net Art-Net · sACN · ESP DMX-512 · RDM DMX-512 · RDM DMX-512 · RDM DMX-512 · RDM DMX —
Pixel protocols 60+ 70+ Set at transmitter Set at transmitter — — — — — — — — — —
Ethernet ports 2 × 10/100/1000 2 × 10/100/1000 — — 1 × 1000, 1 × 100 1 × 1000, 1 × 100 1 × 1000, 1 × 100 1 in (RJ45) — — — — — —
Dedicated data outputs — 8 × RJ45 — — — — — 10 + 2 DMX/RDM (RJ45) 2 isolated DMX/RDM + 1 Thru 4 isolated DMX/RDM + 1 Thru 6 isolated DMX/RDM + 1 Thru 8 isolated DMX/RDM + 1 Thru — —
Auxiliary port 1 × RS485 in/out 1 × RS485 in/out — — 2 × RS485, 2 × RS232 2 × RS485, 2 × RS232 2 × RS485, 2 × RS232 — — — — — — —
MicroSD card slot 1 1 — — 1 1 1 — — — — — — —
Range — Up to 300 m to receivers Up to 300 m from transmitter Up to 300 m from transmitter — — — — — — — — — Up to 100 m (SPI extension)
Input power 5–24 V DC 100–240 V DC 5–24 V DC 5–24 V DC 9–36 V DC 9–36 V DC 9–36 V DC 12–24 V DC or PoE 100–277 V AC 100–277 V AC 100–277 V AC 100–277 V AC 12–24 V DC 12–48 V DC
Per output current limit 7 A — 7.5 A (mini blade fuse) 7.5 A (mini blade fuse) — — — — — — — — — —
Device current rating — — — — — — — — — — — — — 6 A max, each unit
Total current 28 A — — — 24 W max 24 W max 24 W max — — — — — — —
Fault protection ESD all ports · ±36 V clock/data · ±48 V aux · reverse polarity ESD all ports · ±36 V data out · ±48 V aux ESD · ±24 V data and clock/data · over-current ESD · ±24 V data and clock/data · over-current ESD and surge on I/O ESD and surge on I/O ESD and surge on I/O Surge and reverse polarity on power — — — — — —
Dimensions 126.5 × 119 × 42 mm 221 × 169 × 42 mm 95 × 78 × 33 mm 95 × 78 × 33 mm 258 × 172 × 42 mm 258 × 172 × 42 mm 258 × 172 × 42 mm 200 × 120 × 42 mm 165 × 88.5 × 76.5 mm 165 × 88.5 × 76.5 mm 256 × 88.5 × 76.5 mm 256 × 88.5 × 76.5 mm 85.5 × 85.5 × 15 mm —
Weight 0.3 kg 1.1 kg 0.2 kg 0.2 kg 1.2 kg 1.2 kg 1.2 kg 0.46 kg — — — — — —
Enclosure Aluminium + ABS Aluminium High-strength ABS High-strength ABS — — — ABS + anodised aluminium Sheet metal, black powder coat Sheet metal, black powder coat Sheet metal, black powder coat Sheet metal, black powder coat Aluminium —
Mounting Wall & DIN-rail Panel, wall & rack Wall, plate or DIN-rail Wall, plate or DIN-rail Table or wall, VESA bracket Table or wall, VESA bracket Table or wall, VESA bracket Rack, surface or DIN DIN rail (35 mm) DIN rail (35 mm) DIN rail (35 mm) DIN rail (35 mm) Built-in —
IP rating — — — — — — — IP20 IP20 IP20 IP20 IP20 IP20 IP20
Ambient operating temperature −20 °C to +70 °C −10 °C to +60 °C −20 °C to +55 °C −20 °C to +55 °C −20 °C to +60 °C −20 °C to +60 °C −20 °C to +50 °C −20 °C to +50 °C −20 °C to +60 °C −20 °C to +60 °C −20 °C to +60 °C −20 °C to +60 °C −30 °C to +50 °C —

Applications

2 Case Studies

Façade Pixel Wash
01 Architectural Façade

Meriton Parramatta

Our PX24 Pixel Controllers excel at driving long runs of linear fixtures with minimal hardware. Here’s how we deployed them on a Meriton building façade in Parramatta, Sydney.

Installation Highlights

  • Uniform, glare-free wash over 12 storeys.
  • Dynamic colour sequences programmed for building identity and event themes.
  • Low-voltage, high-efficiency operation with OTA firmware updates.

Key Benefits

  • Minimal hardware footprint — only two controllers handling hundreds of metres.
  • Scalable architecture: easy to expand with additional PX24s or sub-controllers.
  • Centralised, web-based control via LEDCTRL software.
Location
Parramatta CBD, NSW
Controllers
2 × PX24
Fixture Run
385 m
Protocols
Art-Net → SPI

FAQs

7 Questions

Your top questions on our hardware — answered.

  • Two Gigabit Ethernet ports, supporting daisy-chain and redundant topologies.
  • Carries 24 universes of Art-Net or sACN.
  • Yes — the auxiliary port accepts DMX512 in over RS485.
  • DMX, X-Stream and SPI are all listed among the PX24’s control protocols.
  • Its four powered pixel outputs support 60+ pixel protocols.
  • Up to 96 universes of Art-Net or sACN, sent as X-Data over standard Ethernet cabling from a single centralised controller.
  • It receives X-Data from an MX96PRO transmitter over distances up to 300 m.
  • It takes 10 universes of Art-Net, sACN or ESP and splits them across 12 DMX/RDM output ports (10 rear plus 2 mirrored front).
  • The CX64 is the flagship unit, with a 64-universe Art-Net licence to drive full-scale media facades.
  • Step down to the CX24 (24 universes) for medium-scale projects, or the CX10 (10 universes) for compact installs.
  • Up to 100 m between the PXT and the PXR.

Downloads

14 Products · 23 Files
Filter by Product

Specifications

PX24 Specifications PDF

Quick Start Guide

PX24 Quick Start Guide PDF

User Manual

PX24 User Manual PDF

Configuration Guide

PX24 / MX96PRO Configuration Guide PDF

Firmware

PX24 Firmware v3.14.1LED-Ctrl-Pixel-Mk3-3.14.1.fwCurrentFW
Older versions (5)

Only install an older version if advised by LED CTRL support.

v3.14.0LED-Ctrl-Pixel-Mk3-3.14.0.zipZIPv3.13.1LED-Ctrl-Pixel-Mk3-3.13.1.zipZIPv3.13.0LED-Ctrl-Pixel-Mk3-3.13.0.fwFWv3.10.0LED-Ctrl-Pixel-Mk3-3.10.0.fwFWv3.8.0LED-Ctrl-Pixel-Mk3-3.8.0.fwFW

Specifications

SX2 Specifications PDF

Specifications

SX4 Specifications PDF

Specifications

CX10 Specifications PDF

Specifications

CX24 Specifications PDF

Specifications

CX64 Specifications PDF

Specifications

DX10 Specifications PDF

User Manual

DX10 User Manual PDF

Firmware

DX10 Firmware EXE

Specifications

DSX2 Specifications PDF

Specifications

DSX4 Specifications PDF

Specifications

DSX6 Specifications PDF

Specifications

DSX8 Specifications PDF

Specifications

MX96PRO Specifications PDF

Setup Manual

MX96PRO Setup Manual PDF

Firmware

MX96PRO Firmware v3.14.1LED-Ctrl-Pixel-Mk3-3.14.1.fwCurrentFW
Older versions (5)

Only install an older version if advised by LED CTRL support.

v3.14.0LED-Ctrl-Pixel-Mk3-3.14.0.zipZIPv3.13.1LED-Ctrl-Pixel-Mk3-3.13.1.zipZIPv3.13.0LED-Ctrl-Pixel-Mk3-3.13.0.fwFWv3.10.0LED-Ctrl-Pixel-Mk3-3.10.0.fwFWv3.8.0LED-Ctrl-Pixel-Mk3-3.8.0.fwFW

Specifications

TX10 Specifications PDF

Configuration Guide

TX10 Configuration Guide PDF

Specifications

PXT/R Specifications PDF

Accessories

Control Hardware Range · Mounting & Add-Ons

PX24 Pixel Controller 1

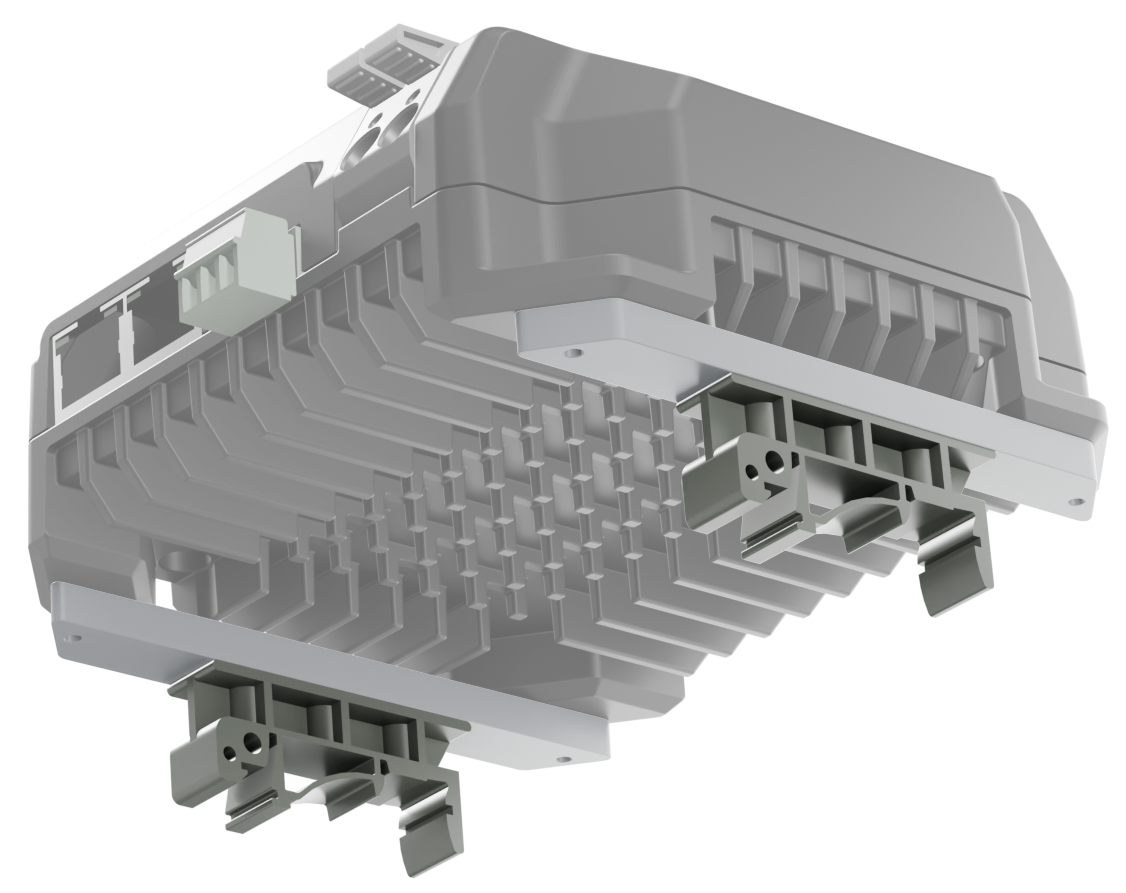

DIN Rail Mount Kit Snap-in DIN solution for tidy panel builds.

SX2 Long Range Receiver 1

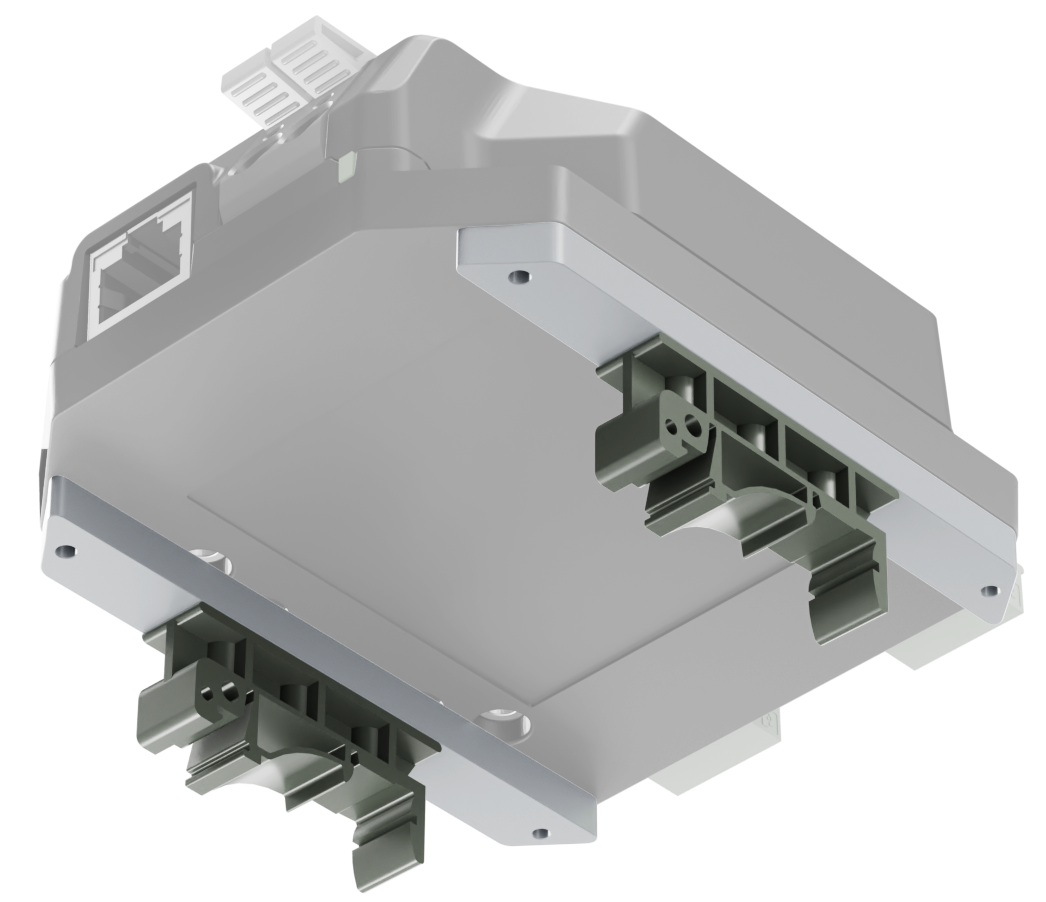

DIN Rail Mount Kit Clip-on DIN kit for rapid installs.

SX4 Long Range Receiver 1

DIN Rail Mount Kit DIN-rail clip for modular racks and enclosures.

DX10 10-Port Ethernet to DMX/RDM Converter 4

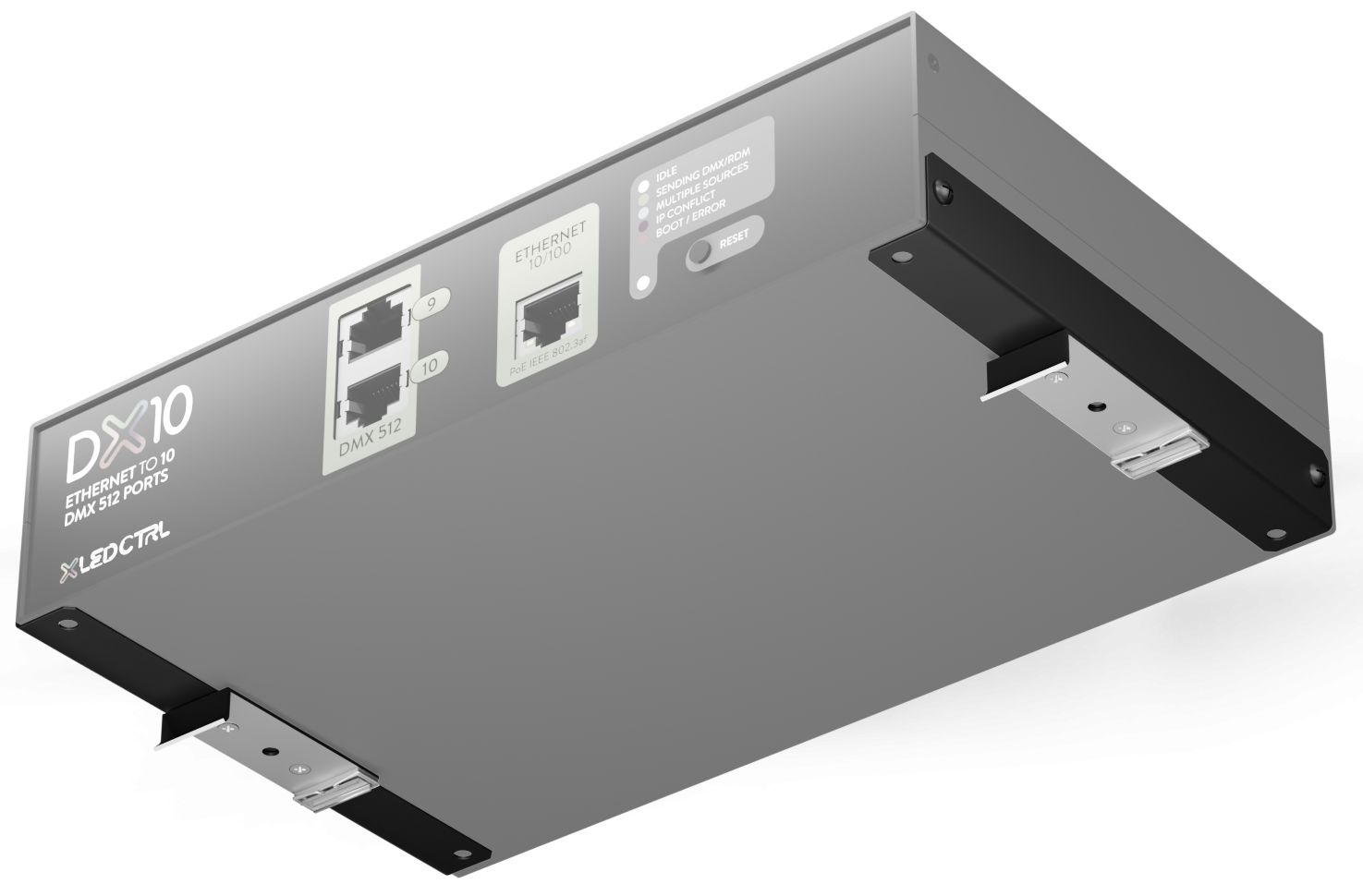

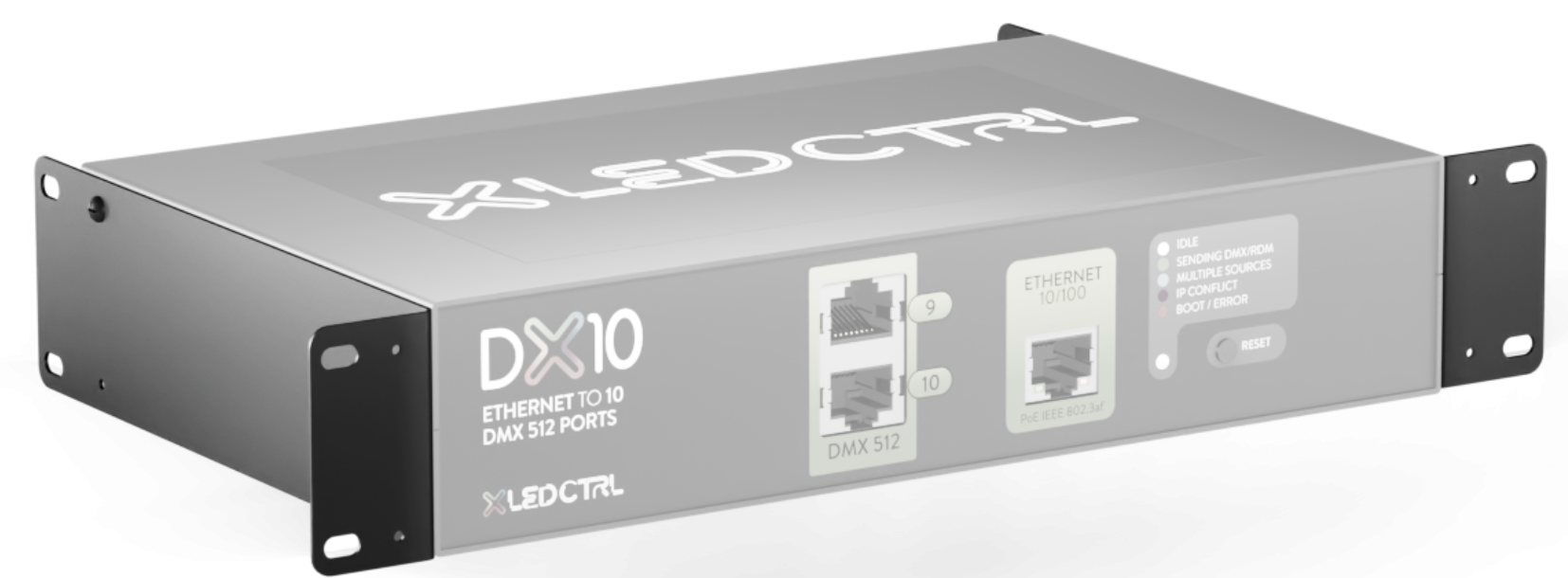

Half Width Mounting Rack Space-efficient half-rack presentation.

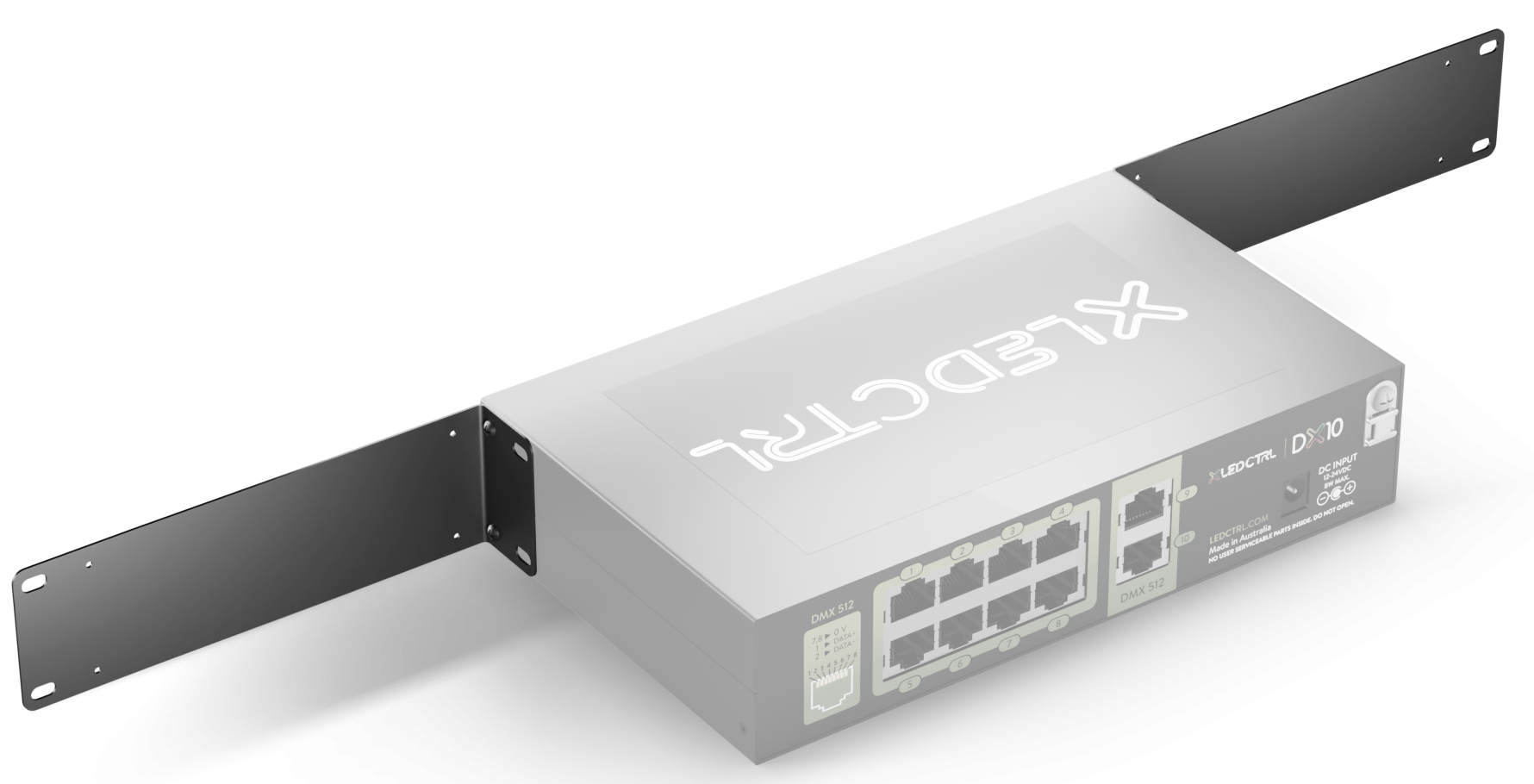

Full Width Mounting Rack Standard full-rack mounting hardware.

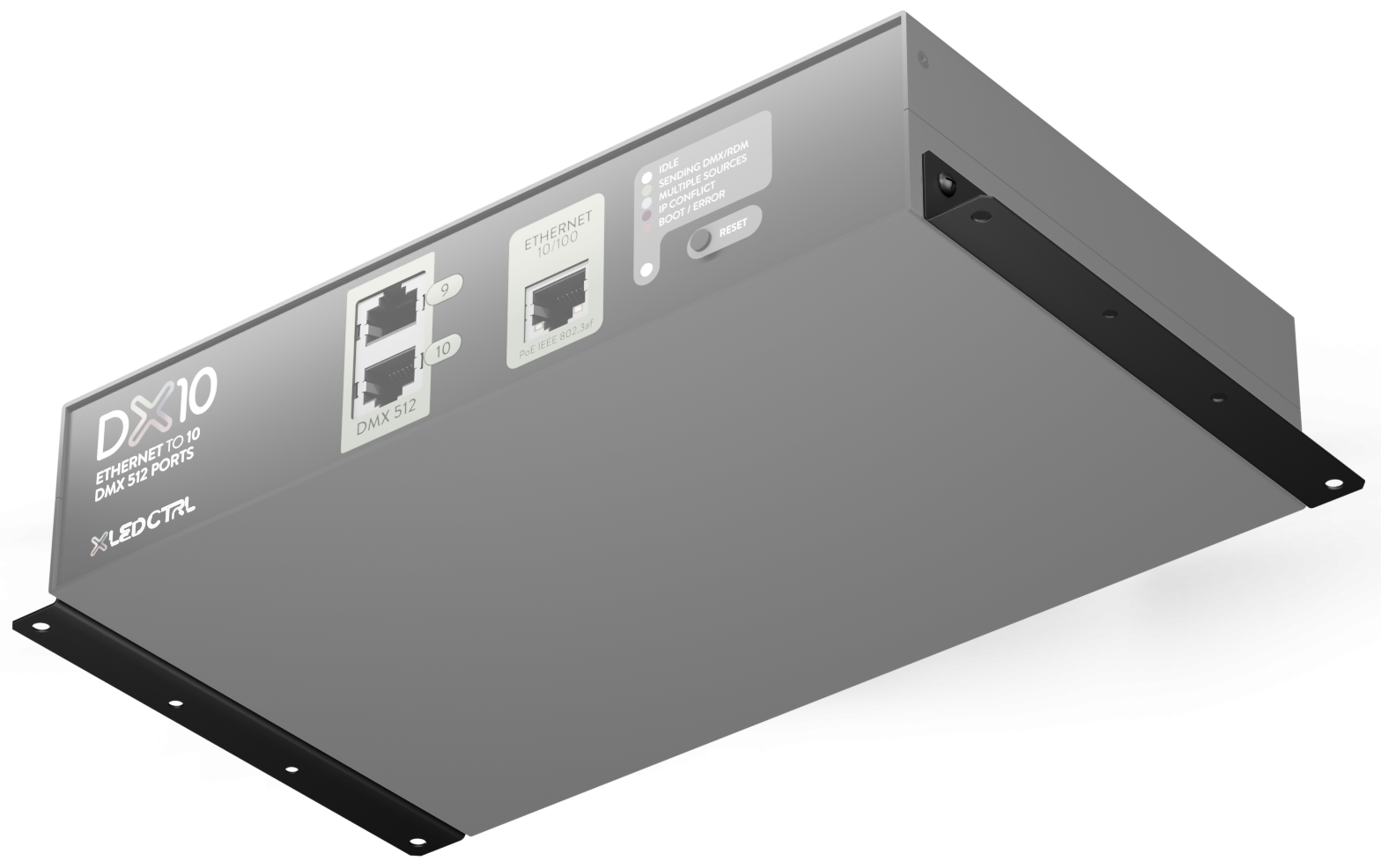

Surface Mounting Direct wall/surface mounting bracket.
DIN Rail Mounting DIN clip for control panels and cabinets.

MX96PRO Long Range Transmitter 3

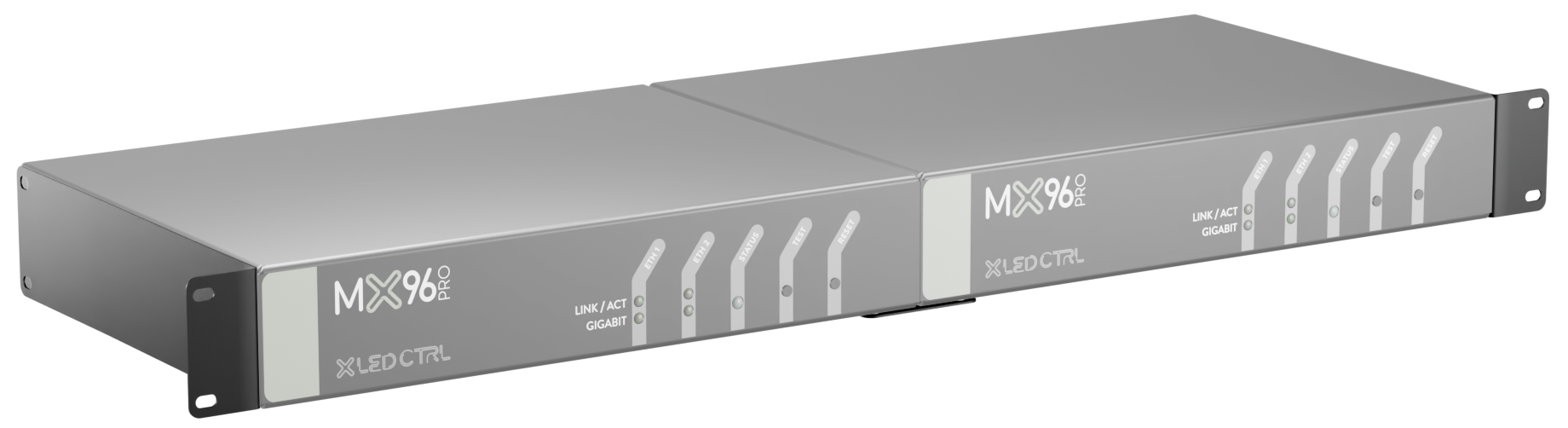

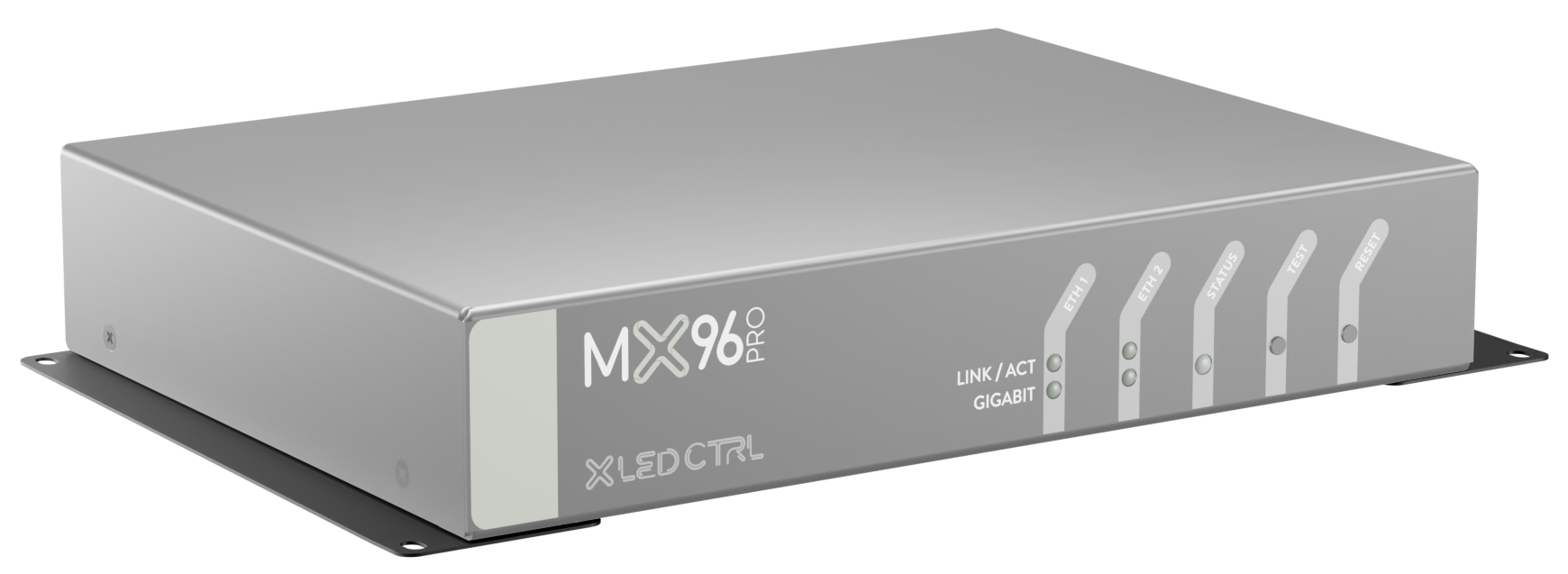

Flat Surface Front Mount Kit Clean front-mount on flat surfaces.

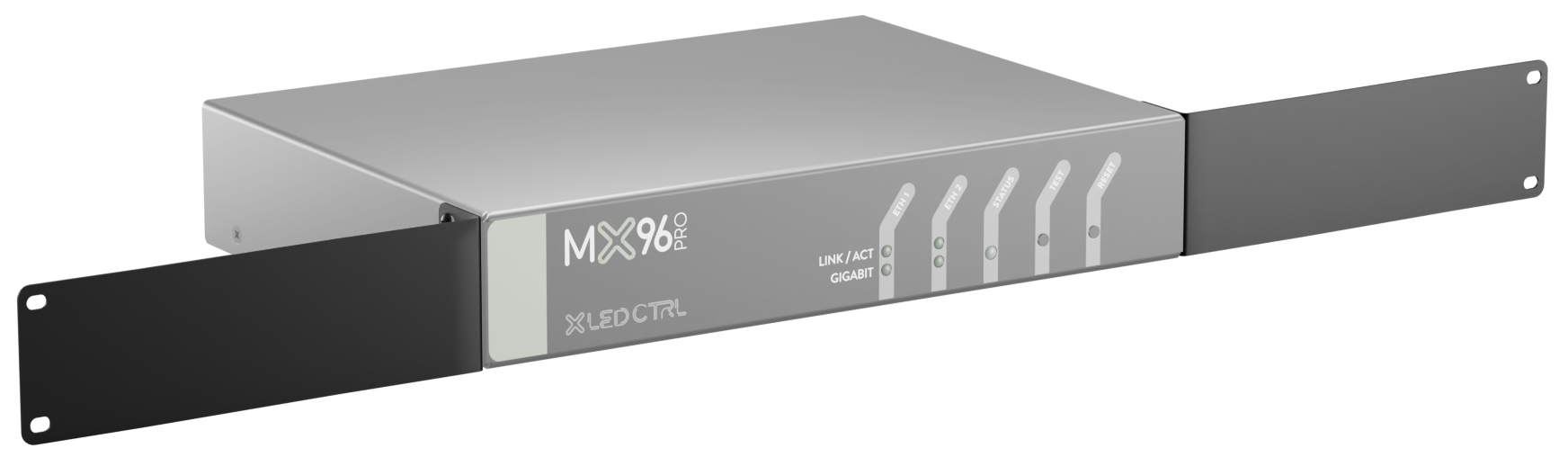

19" Data Rack Mount Kit Standard 19″ rack ears for data racks.
