Long Range Receiver

Paired with an MX96PRO, the SX4 receives differential long-distance data from up to 300 m away and converts it into a pixel-ready signal — up to 12 universes of data-only pixels, across four individually fused outputs.

  • Universes12
  • Outputs4 fused
  • RangeUp to 300 m
  • Power in5–24 V DC
Download Datasheet View Specifications

Four outputs, each on its own fuse

SX4 capacity and protection per pixel output
Specification Per output
Universes 3
Max pixels, RGB 510
Max pixels, RGBW 384
Max output current 7.5 A

Three universes on each of the four outputs — 12 across the receiver. Every output carries its own 7.5 A mini blade fuse. The SX4 drives data-only pixels, which the paired MX96PRO enables by running in expanded mode; universe, pixel-protocol and channel limits are set at the transmitter.

Full specifications

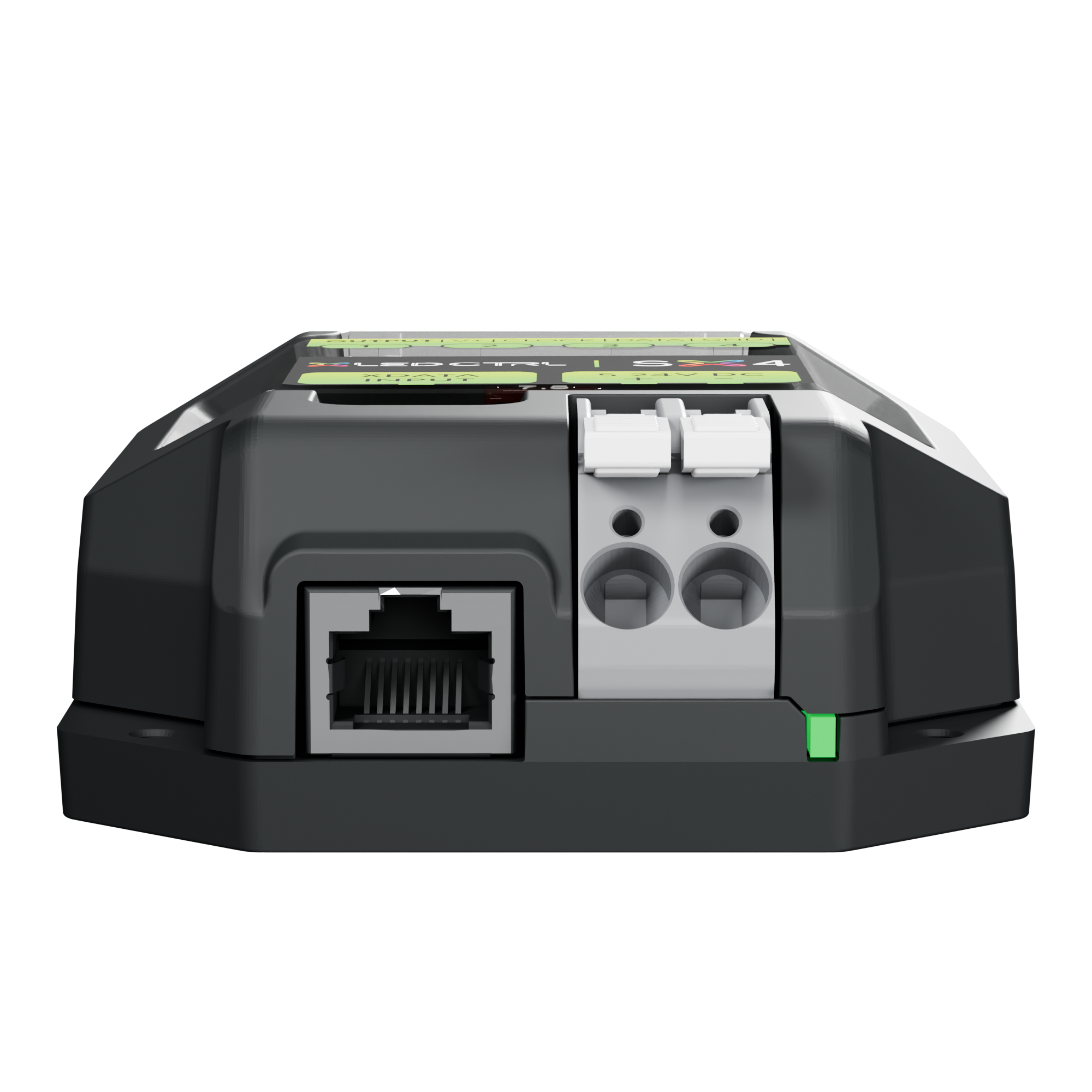

Front of the SX4 Long Range Receiver showing the RJ45 data input port, the two white lever-clamp power terminals beside it and the green power indicator at the right-hand edge

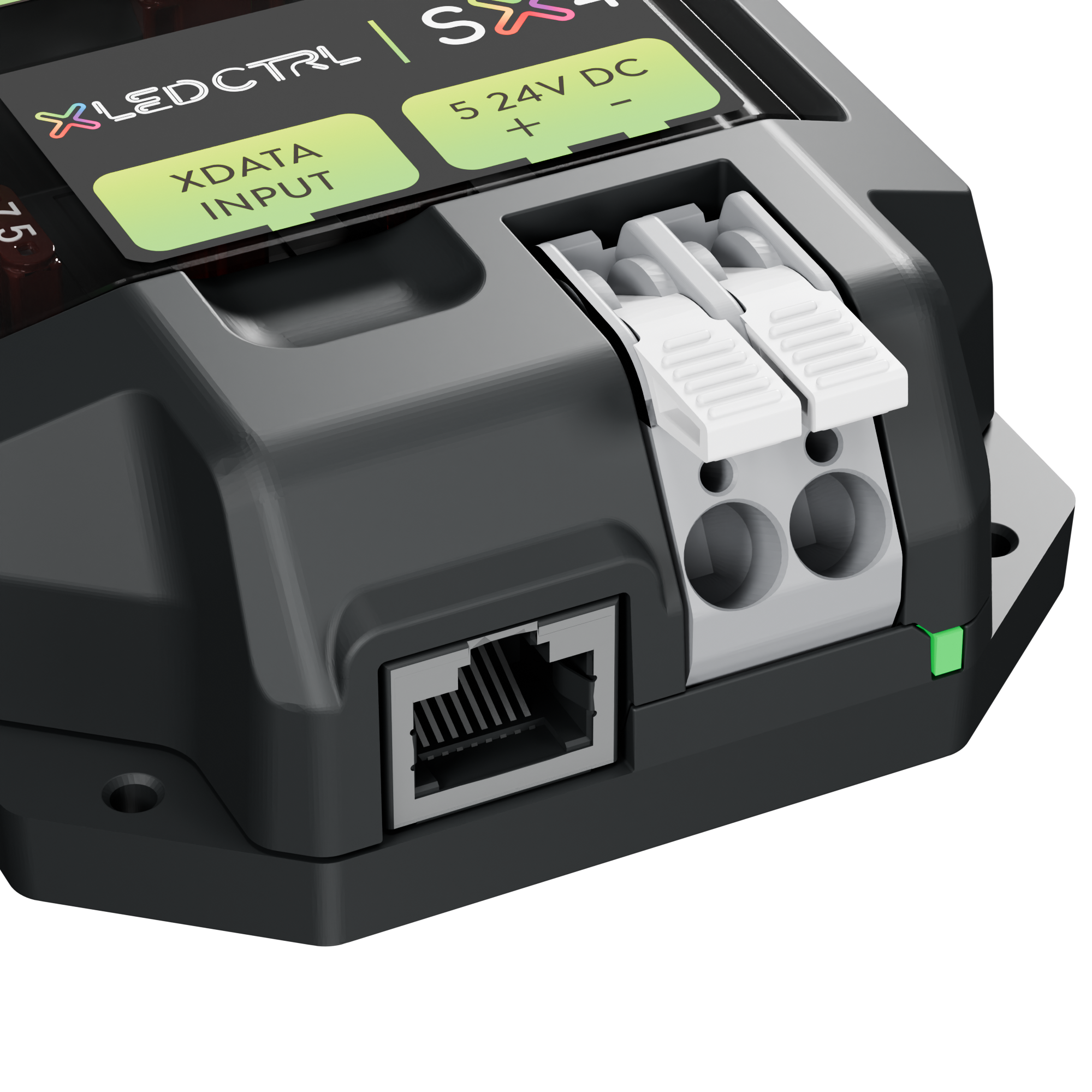

Close three-quarter view of the SX4 Long Range Receiver from the front right, showing the XDATA INPUT and 5 to 24 V DC markings on the top face, both white lever-clamp power terminals with their wire entries, the RJ45 data input below and the green power indicator

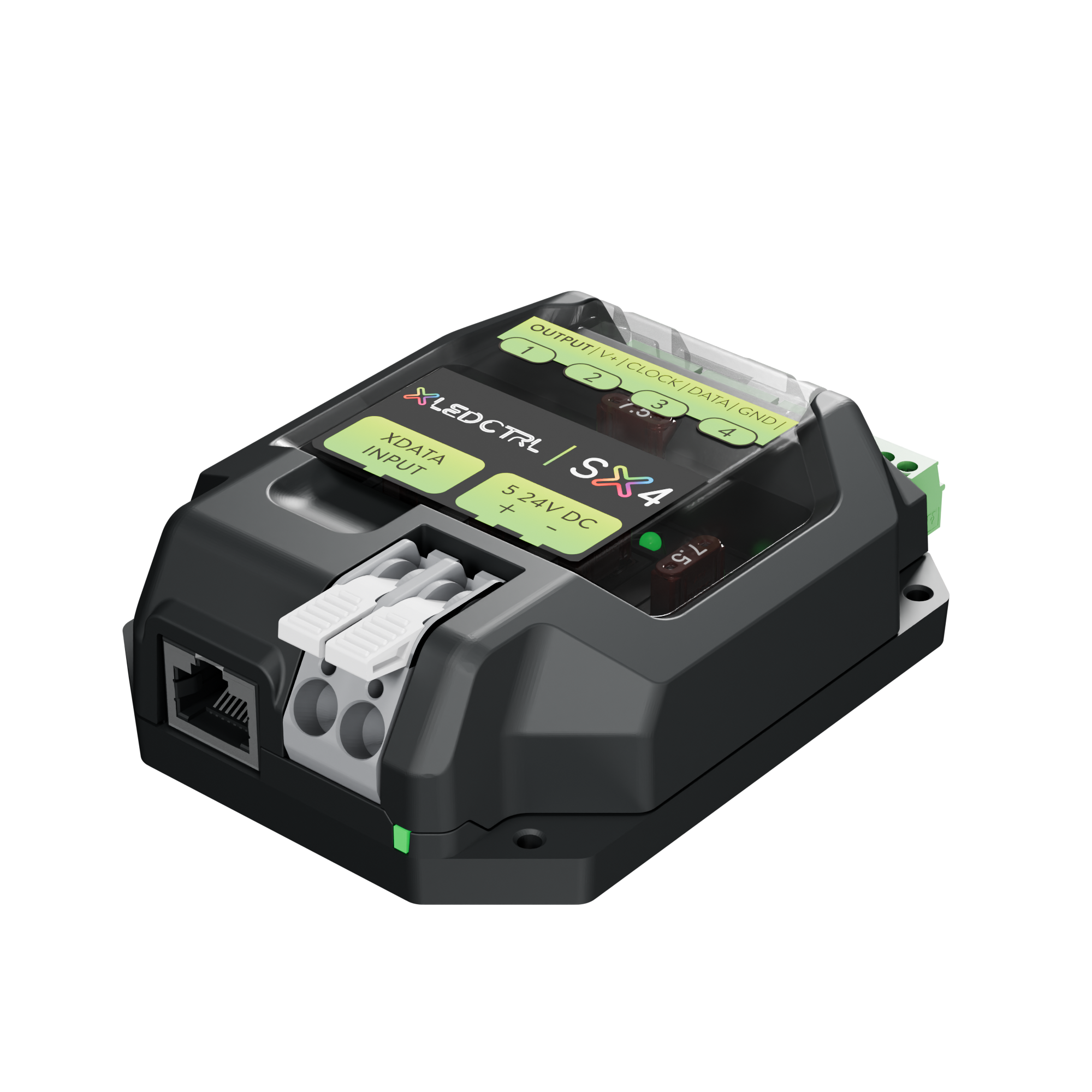

SX4 Long Range Receiver from above and to the right, showing the whole top face with its OUTPUT, V+, CLOCK, DATA and GND legend and the four numbered outputs, the blade fuses behind the tinted lid, the lever-clamp power terminals and RJ45 data input on the near face and a green output terminal at the far edge

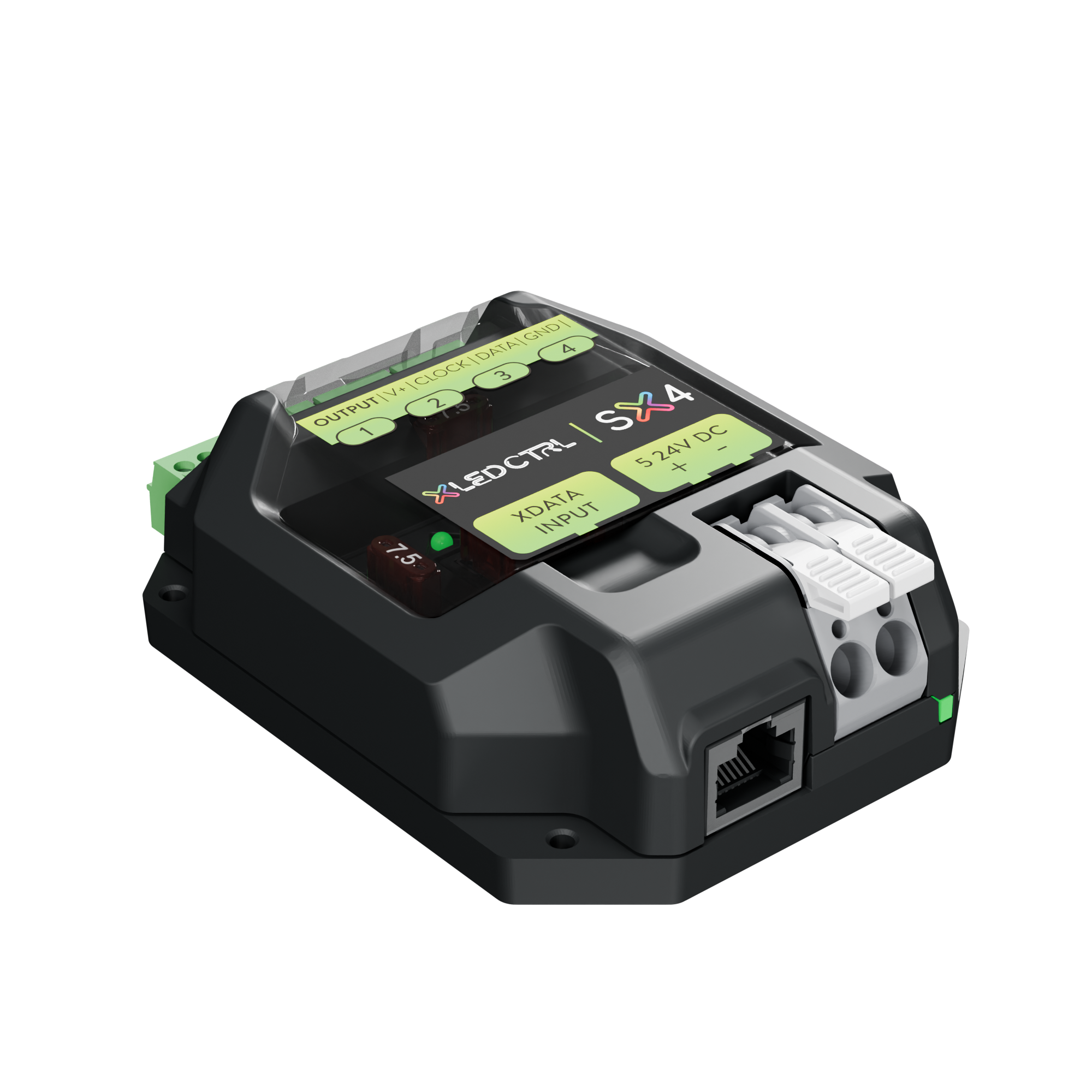

SX4 Long Range Receiver from above and to the left, showing the four green output terminals along the far edge, the top face legend numbered one to four, the XDATA INPUT and 5 to 24 V DC markings, the lever-clamp power terminals and the RJ45 data input on the near face

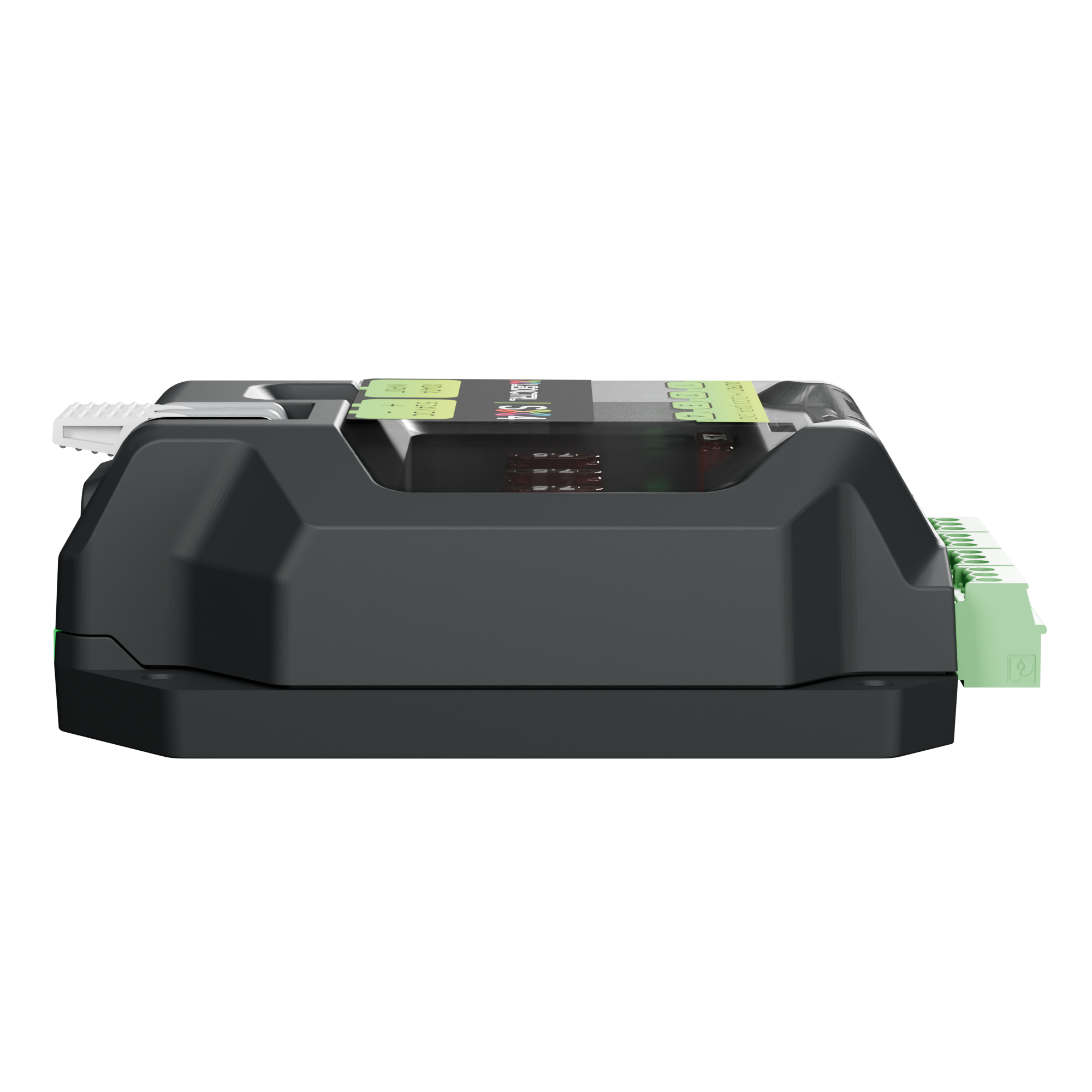

Side elevation of the SX4 Long Range Receiver showing the depth of the high-strength ABS case, the green output terminals along the far top edge and the moulded mounting flanges at each end

Mounting

Onto a wall, a plate, or a rail

The same enclosure does all three. Mounting holes take a wall or plate fixing directly, and the optional DIN Rail Mount Kit clips it onto rail instead. It is one SX4 either way — the mounting changes, the hardware does not.

  • 95 × 78 × 33 mm Dimensions, L × W × H
  • 0.2 kg Weight
  • Wall, plate or DIN-rail Mounting, rail via optional accessory

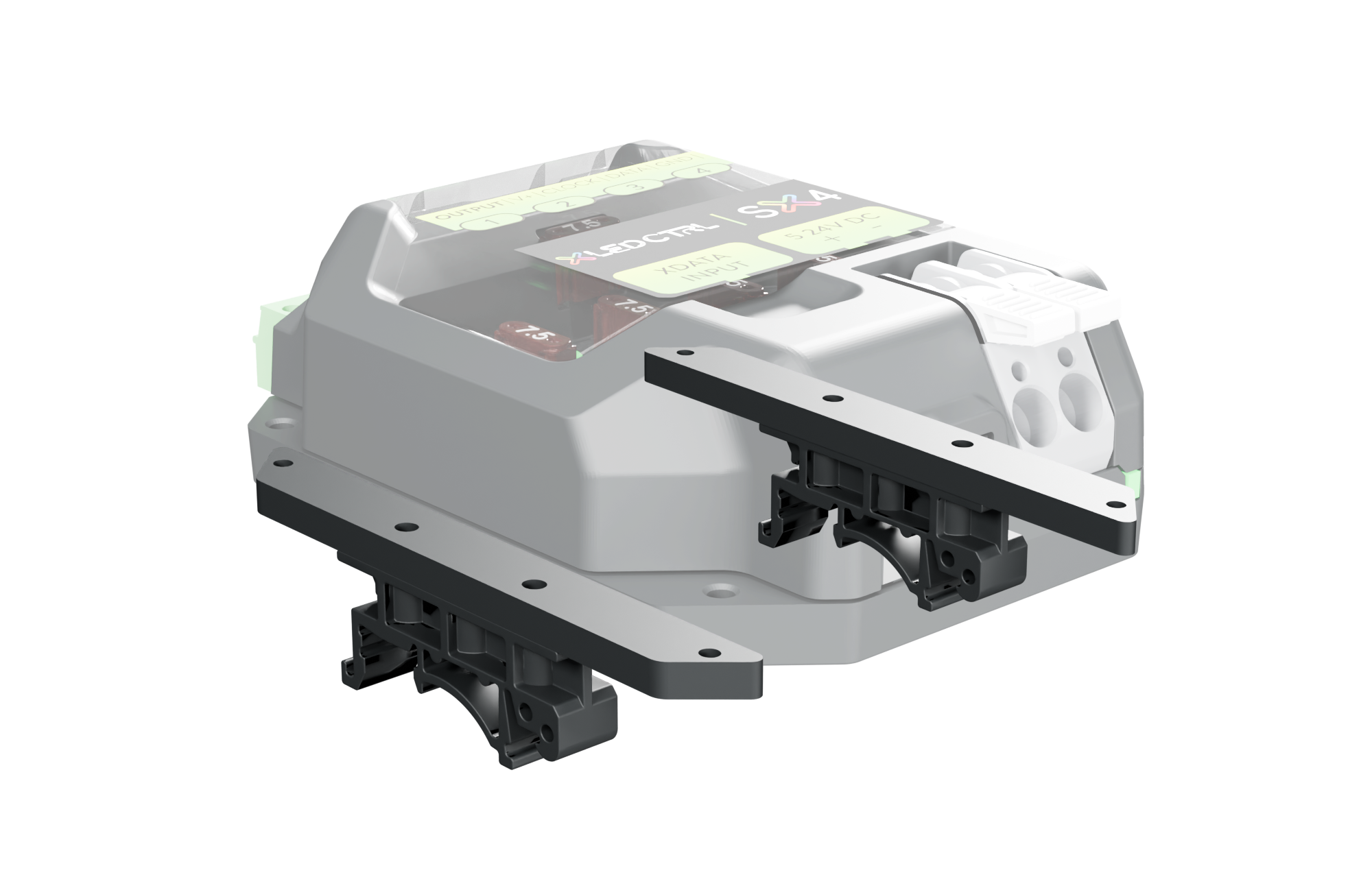

The SX4 Long Range Receiver with both DIN-rail mounting brackets fitted to its base, the receiver body faded back so the brackets and their rail clips read clearly, its four numbered outputs and their blade fuses showing through

Installed

The far end of the run

One MX96PRO feeds up to eight SX4 receivers, each as far as 300 m of differential cable from the transmitter and within 15 m of its first pixel. Rail-mounted side by side in a remote enclosure, every receiver carries its own power input and its own four outputs.

  • 8 Receivers per MX96PRO
  • 300 m Transmitter to receiver
  • 15 m Receiver to first pixel

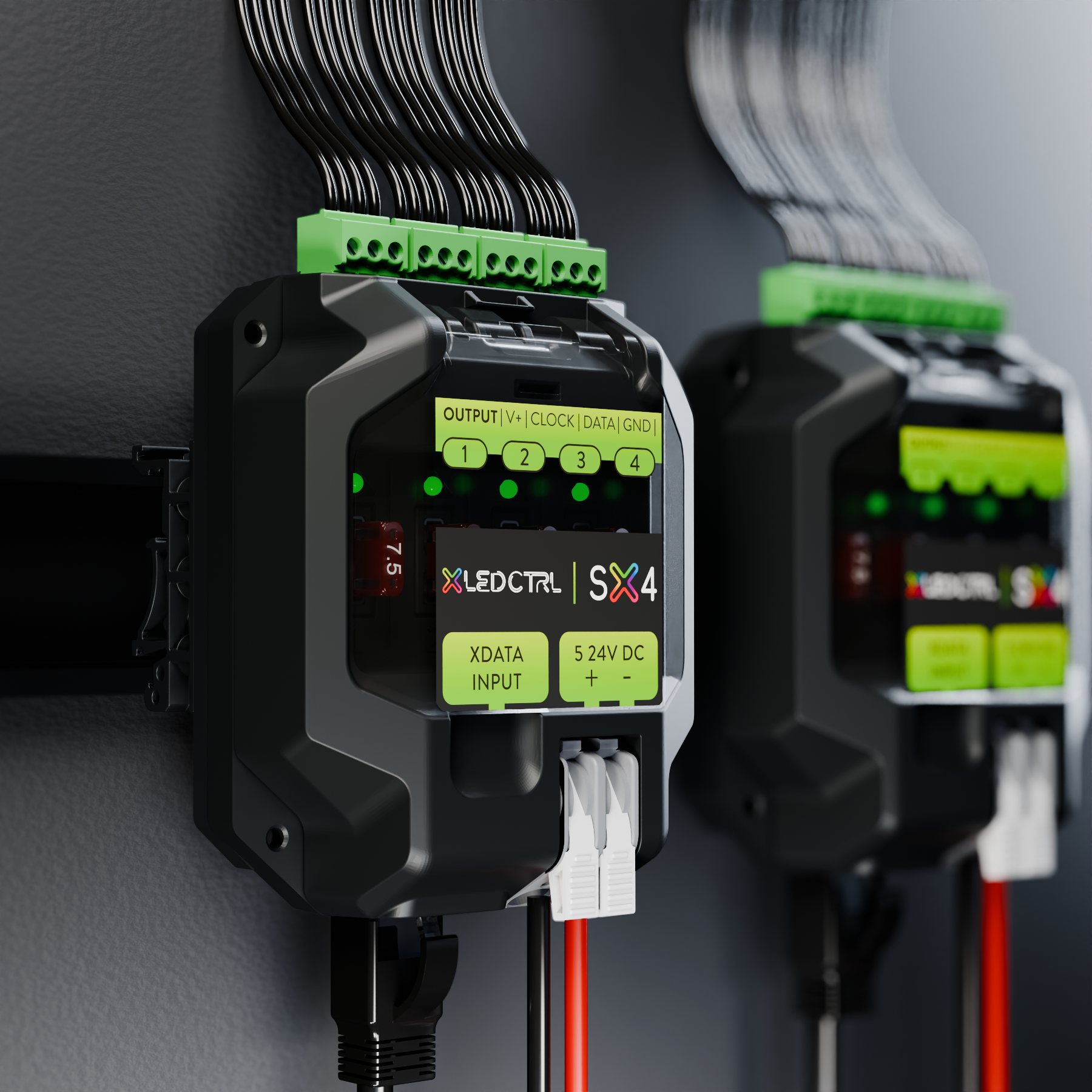

Two SX4 Long Range Receivers mounted side by side on DIN rail inside an equipment cabinet, the four numbered pixel outputs and their indicator LEDs across the front, terminal blocks wired along the top edge and the data input and quick-connect power clamps below

Key Specifications · SX4 Long Range Receiver

Pixel Data
Universes
12 Universes X-Data
Pixel Outputs 4 fused (data-only)
Max Pixels / Output 510 RGB · 384 RGBW
Network & Control
Data Input X-Data from MX96PRO transmitter
Transmission Range Up to 300 m from transmitter
Compatible Transmitters MX96PRO
Transmitter Mode Expanded mode, set at the MX96PRO
Output Protocols
X-Stream X-Stream
SPI SPI
Power
Input Voltage 5–24 V DC
Per Output Current Limit 7.5 A (mini blade fuse)
Fault Protection
Data Input Protection ±24 V DC fault protection
Pixel Output Clock/Data ±24 V DC fault protection
Pixel Output Power Over-current and short-circuit protection
Electrostatic Discharge (ESD) Protection on all pixel outputs and data input
Physical
Dimensions 95 × 78 × 33 mm
Weight 0.2 kg
Enclosure High-strength ABS · black
Mounting Wall, plate or DIN-rail (optional accessory)
Operating Temp. −20°C to +55°C
Warranty
Warranty 5 Years (Extendable Warranty Available)

Note: Specifications listed for quick evaluation and integration planning. Universe, pixel-protocol and channel limits per receiver are configured at the paired MX96PRO transmitter.

Overall Dimensions
SX4 overall dimensions
Mounting Dimensions
SX4 mounting dimensions

Downloads

SX4 Long Range Receiver Downloads

Specifications

SX4_Receiver_Specifications_Sheet.pdf

In the Box

  • SX4
  • Installation Guide

Accessories

SX4 Long Range Receiver Accessories

Mounting 1

DIN Rail Mount Kit
DIN Rail Mount Kit Clip-on mounting kit for rapid DIN-rail installations.

Compare

The rest of the hardware

Every LED CTRL hardware product, side by side. A dash means the datasheet does not state it, or the row does not apply to that kind of device.

Scroll the table sideways →
LED CTRL hardware compared across capacity, network, power, physical and environmental specifications
Product PX24 Pixel controller MX96PRO Long-range transmitter SX2 Long-range receiver SX4 You are here Long-range receiver CX10 Compute unit CX24 Compute unit CX64 Compute unit DX10 DMX / RDM gateway DSX2 DMX / RDM splitter DSX4 DMX / RDM splitter DSX6 DMX / RDM splitter DSX8 DMX / RDM splitter TX10 Trigger panel PXTR SPI booster pair
Universes 24 96 12 12 10 (licence) 24 (licence) 64 (licence) 10 — — — — — —
Pixel outputs 4 e-fused — 2 fused 4 fused — — — — — — — — — —
Max RGB pixels / output 1020 normal · 510 expanded — 1020 510 — — — — — — — — — —
Max RGBW pixels / output 768 normal · 384 expanded — 768 384 — — — — — — — — — —
Control protocols Art-Net · sACN Art-Net · sACN — — Art-Net Art-Net Art-Net Art-Net · sACN · ESP DMX-512 · RDM DMX-512 · RDM DMX-512 · RDM DMX-512 · RDM DMX —
Pixel protocols 60+ 70+ Set at transmitter Set at transmitter — — — — — — — — — —
Ethernet ports 2 × 10/100/1000 2 × 10/100/1000 — — 1 × 1000, 1 × 100 1 × 1000, 1 × 100 1 × 1000, 1 × 100 1 in (RJ45) — — — — — —
Dedicated data outputs — 8 × RJ45 — — — — — 10 + 2 DMX/RDM (RJ45) 2 isolated DMX/RDM + 1 Thru 4 isolated DMX/RDM + 1 Thru 6 isolated DMX/RDM + 1 Thru 8 isolated DMX/RDM + 1 Thru — —
Auxiliary port 1 × RS485 in/out 1 × RS485 in/out — — 2 × RS485, 2 × RS232 2 × RS485, 2 × RS232 2 × RS485, 2 × RS232 — — — — — — —
MicroSD card slot 1 1 — — 1 1 1 — — — — — — —
Range — Up to 300 m to receivers Up to 300 m from transmitter Up to 300 m from transmitter — — — — — — — — — Up to 100 m (SPI extension)
Input power 5–24 V DC 100–240 V DC 5–24 V DC 5–24 V DC 9–36 V DC 9–36 V DC 9–36 V DC 12–24 V DC or PoE 100–277 V AC 100–277 V AC 100–277 V AC 100–277 V AC 12–24 V DC 12–48 V DC
Per output current limit 7 A — 7.5 A (mini blade fuse) 7.5 A (mini blade fuse) — — — — — — — — — —
Device current rating — — — — — — — — — — — — — 6 A max, each unit
Total current 28 A — — — 24 W max 24 W max 24 W max — — — — — — —
Fault protection ESD all ports · ±36 V clock/data · ±48 V aux · reverse polarity ESD all ports · ±36 V data out · ±48 V aux ESD · ±24 V data and clock/data · over-current ESD · ±24 V data and clock/data · over-current ESD and surge on I/O ESD and surge on I/O ESD and surge on I/O Surge and reverse polarity on power — — — — — —
Dimensions 126.5 × 119 × 42 mm 221 × 169 × 42 mm 95 × 78 × 33 mm 95 × 78 × 33 mm 258 × 172 × 42 mm 258 × 172 × 42 mm 258 × 172 × 42 mm 200 × 120 × 42 mm 165 × 88.5 × 76.5 mm 165 × 88.5 × 76.5 mm 256 × 88.5 × 76.5 mm 256 × 88.5 × 76.5 mm 85.5 × 85.5 × 15 mm —
Weight 0.3 kg 1.1 kg 0.2 kg 0.2 kg 1.2 kg 1.2 kg 1.2 kg 0.46 kg — — — — — —
Enclosure Aluminium + ABS Aluminium High-strength ABS High-strength ABS — — — ABS + anodised aluminium Sheet metal, black powder coat Sheet metal, black powder coat Sheet metal, black powder coat Sheet metal, black powder coat Aluminium —
Mounting Wall & DIN-rail Panel, wall & rack Wall, plate or DIN-rail Wall, plate or DIN-rail Table or wall, VESA bracket Table or wall, VESA bracket Table or wall, VESA bracket Rack, surface or DIN DIN rail (35 mm) DIN rail (35 mm) DIN rail (35 mm) DIN rail (35 mm) Built-in —
IP rating — — — — — — — IP20 IP20 IP20 IP20 IP20 IP20 IP20
Ambient operating temperature −20 °C to +70 °C −10 °C to +60 °C −20 °C to +55 °C −20 °C to +55 °C −20 °C to +60 °C −20 °C to +60 °C −20 °C to +50 °C −20 °C to +50 °C −20 °C to +60 °C −20 °C to +60 °C −20 °C to +60 °C −20 °C to +60 °C −30 °C to +50 °C —

Frequently Asked Questions

7 Questions

Common questions, answered.

It drives 12 universes across four individually-fused outputs, each up to 510 RGB or 384 RGBW pixels.
The SX4 is the higher-density sibling — four data-only outputs versus the SX2's two — for larger pixel facades.
It receives X-Data from an MX96PRO transmitter over distances up to 300 m.
Each of the four outputs is fused to 7.5 A via a mini blade fuse.
The SX4 runs on 5–24 V DC.
It mounts on wall, plate or DIN-rail (optional accessory) in a high-strength black ABS enclosure measuring 95 × 78 × 33 mm at 0.2 kg.
It operates from −20°C to +55°C.
