PX24 Pixel Controller

Q: How many universes and pixel outputs does the PX24 drive?

The PX24 handles 24 universes over Art-Net / sACN across 4 powered outputs , expandable to 8 outputs .

Q: What pixel and control protocols does the PX24 support?

It supports 60+ pixel protocols and controls over DMX, X-Stream and SPI , with an auxiliary RS485 / DMX512 port that works as an input or an output.

Q: Does the PX24 protect its outputs and support data redundancy?

Yes. Each output has a Smart Electronic Fuse delivering up to 7 A , and the two Gigabit Ethernet ports support daisy-chaining and redundant data paths.

Q: How is the PX24 mounted and powered?

It mounts on a wall or DIN-rail , measures 126.5 × 119 × 42 mm at 0.3 kg, and runs on 5–24 V DC , operating from -20°C to +70°C.

Q: Can the PX24 store and play back shows on its own?

Yes — it has onboard microSD record and playback , and carries a 5-year warranty (extendable).

Pixel Controller

Small but powerful. The PX24 drives up to 6 universes of data on each of its 4 outputs — 24 universes of LED pixel control in a compact, wall- or DIN-rail-mountable enclosure. Smart Electronic Fusing on every output means you’ll never replace a fuse again.

Universes24 (Art-Net / sACN)
Outputs4 powered, 7A each
NetworkDual GbE
AuxRS485 DMX In/Out

Download Datasheet View Specifications

Normal or expanded

PX24 pixel data in normal and expanded mode
Mode	Normal	Expanded
Pixel outputs	4	8
RGB pixels per output	1020	510
RGBW pixels per output	768	384
Universes per output	6	3
Total universes	24	24

Certifications & marks

ETL
CE
FCC
ICES3
RCM
UKCA

Full specifications

Specifications Downloads Accessories Compare FAQs

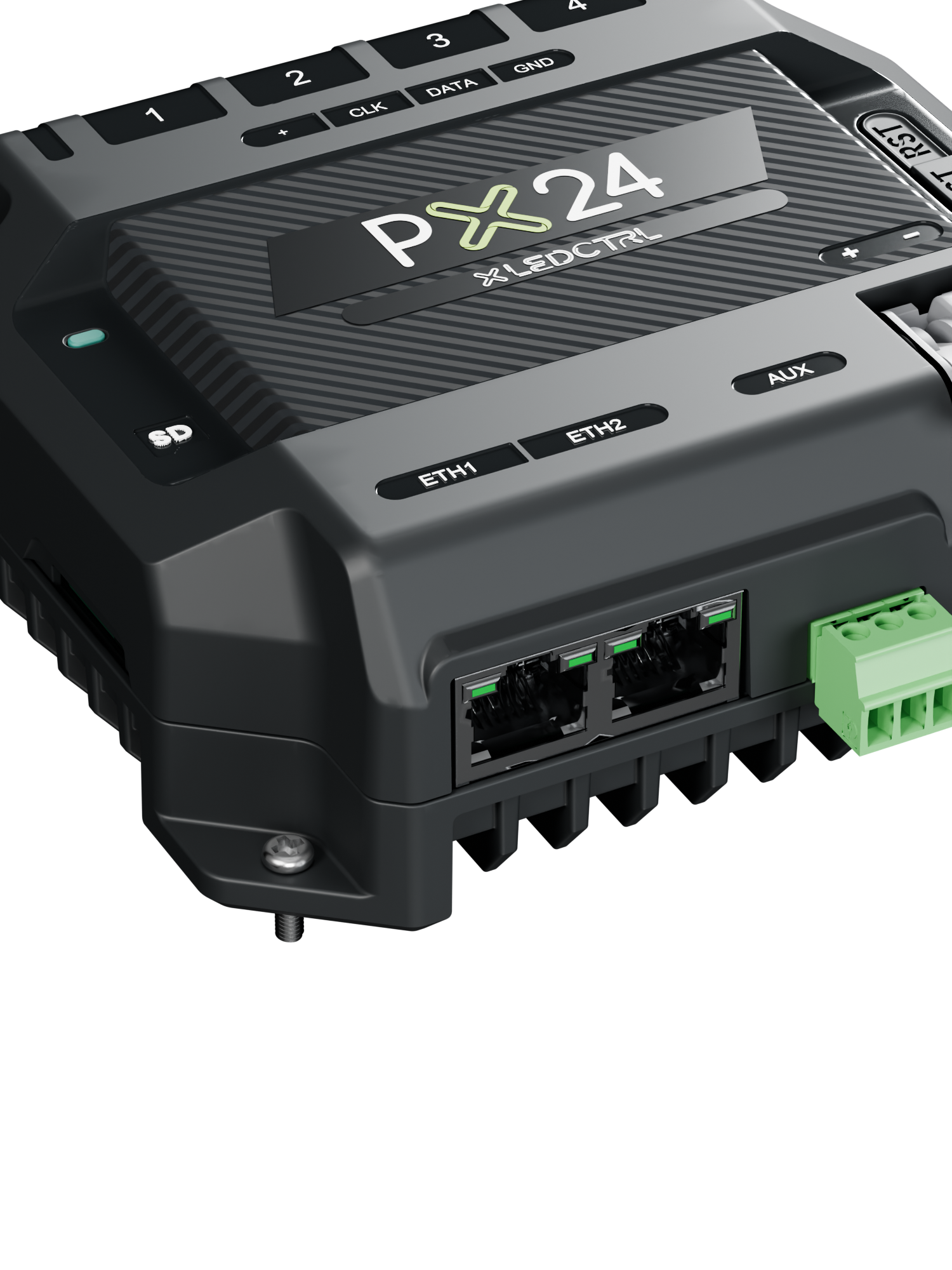

Close view of the PX24 Ethernet ports ETH1 and ETH2 beside the green auxiliary terminal

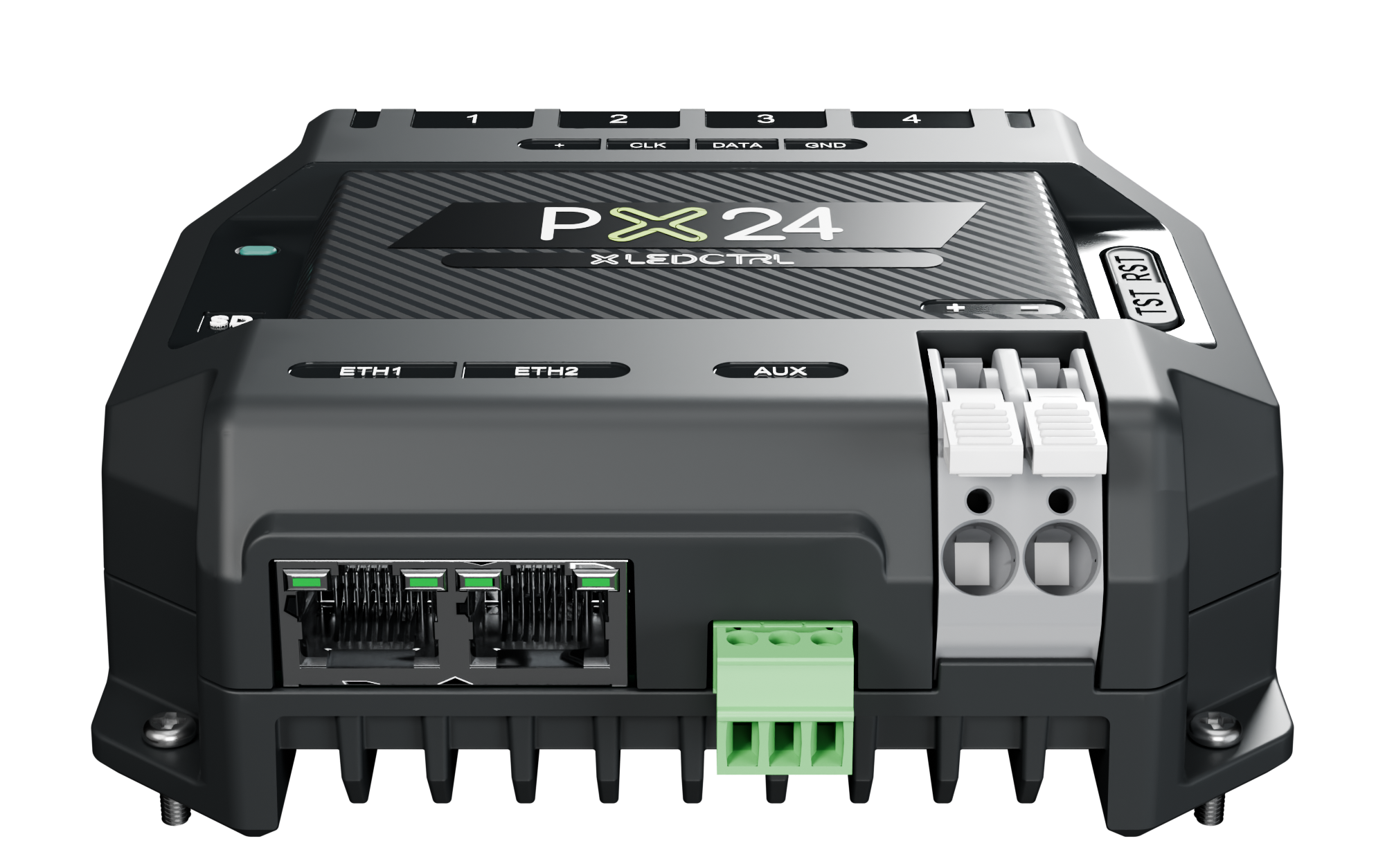

PX24 Pixel Controller from the front and slightly above, showing both Ethernet ports, the auxiliary terminal, the lever-clamp power connector and the top face

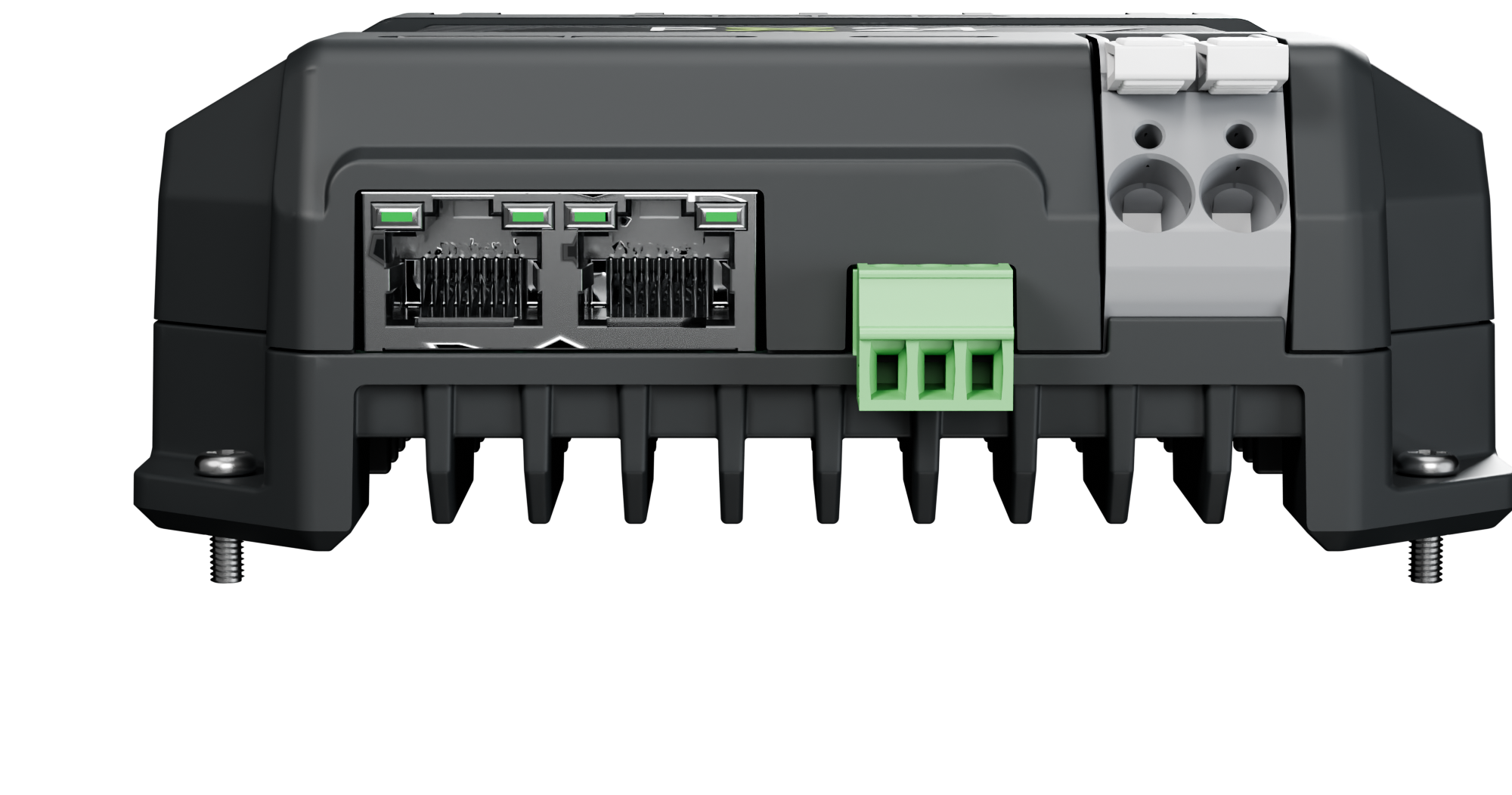

Front elevation of the PX24 Pixel Controller showing both Ethernet ports, the auxiliary terminal and the finned aluminium base

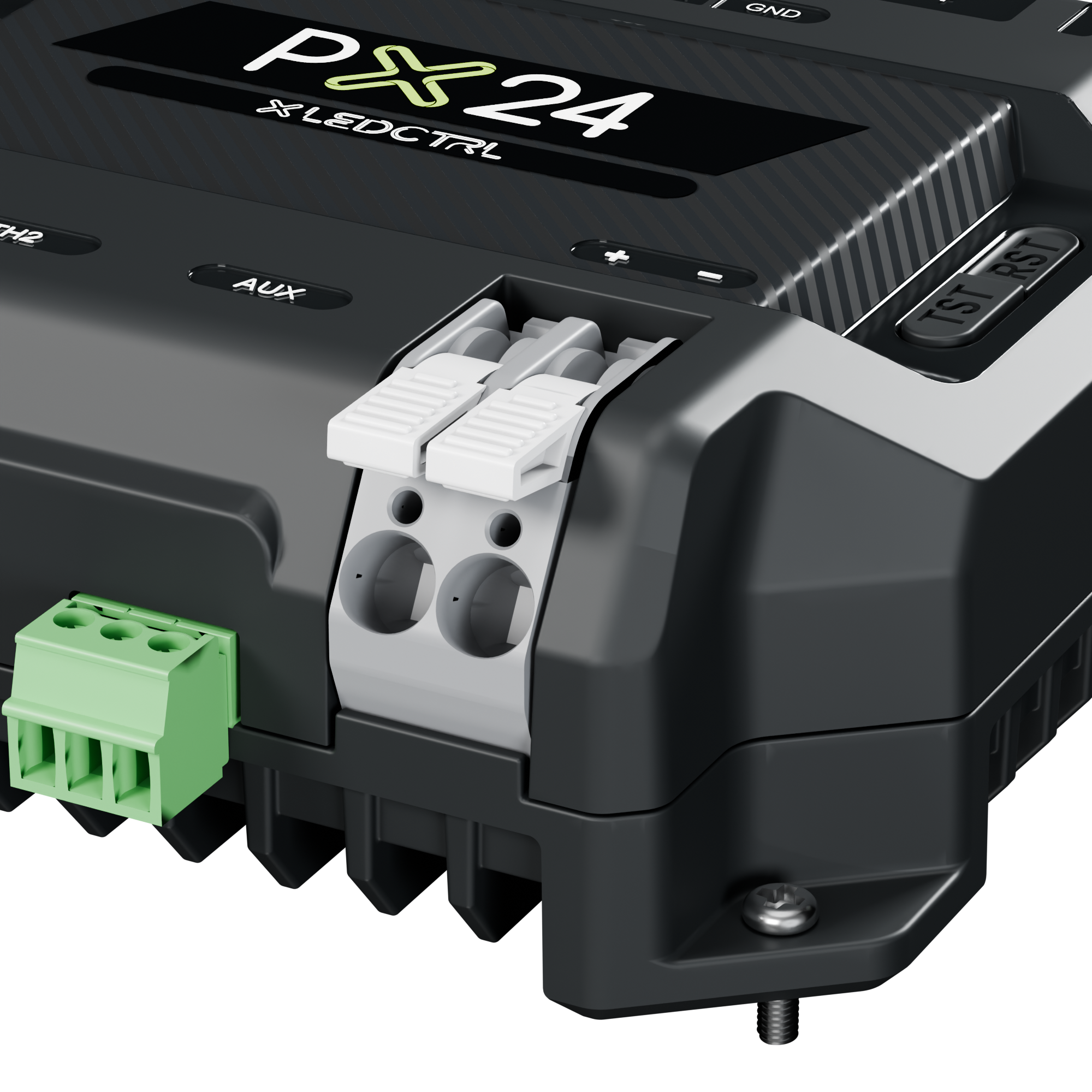

Close view of the PX24 white lever-clamp power terminal and the adjacent auxiliary terminal

Mounting

Onto a rail, or onto a wall

The same enclosure does both. The DIN Rail Mount Kit clips the PX24 onto DIN rail; without it, the controller wall-mounts directly. It is one controller either way — the mounting changes, the hardware does not.

126.5 × 119 × 42 mm Dimensions, including connectors
0.3 kg Weight, controller alone
Wall & DIN-rail Mounting

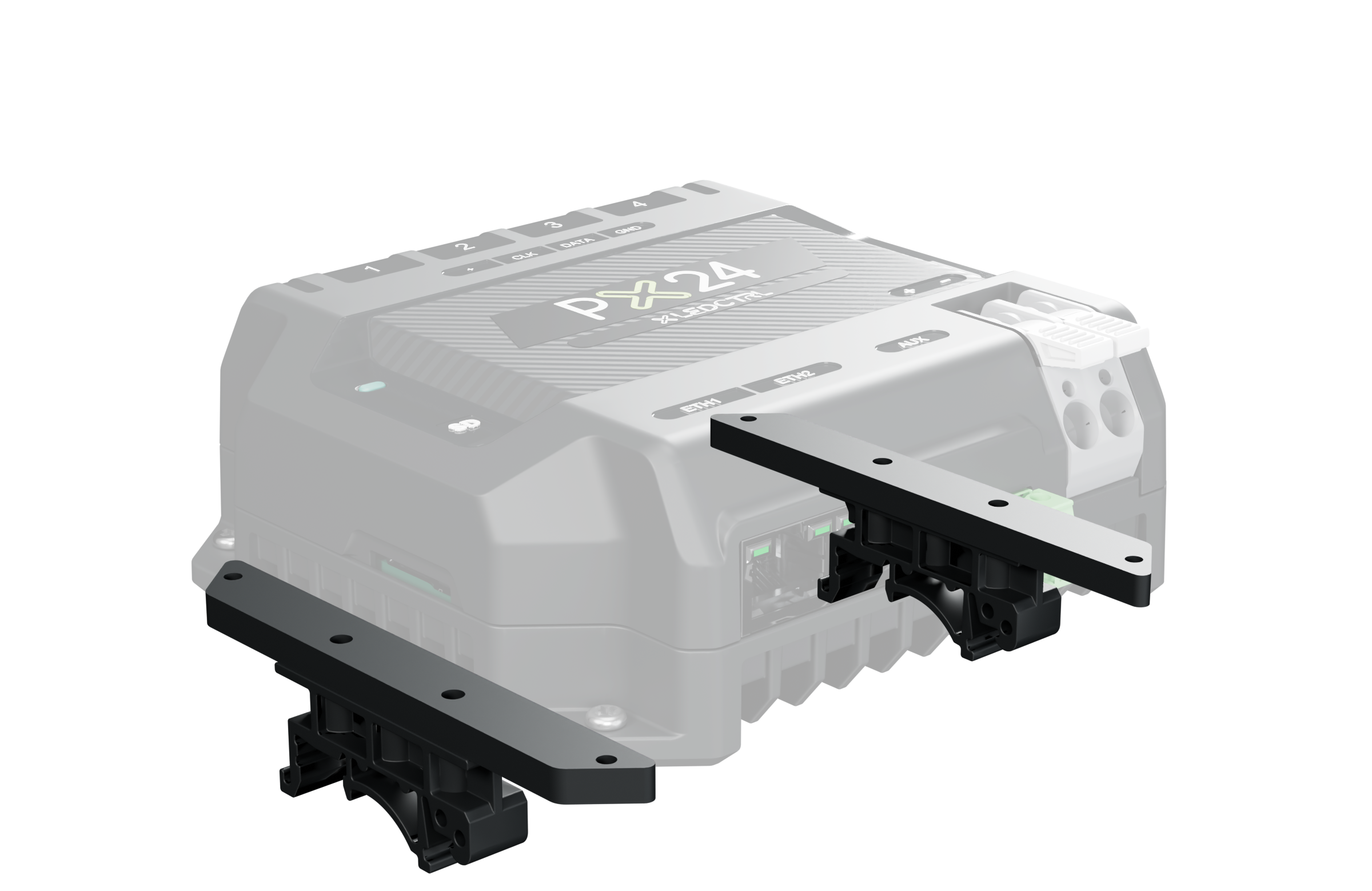

PX24 Pixel Controller with its DIN rail mounting brackets shown attached to the base, the controller body faded back

Thermal

The base is the heatsink

The solid aluminium base of the enclosure doubles as a heatsink, dissipating the heat that high-current installations generate and holding the device together at high ambient temperatures.

−20 °C to +70 °C Ambient operating temperature
7 A Per output, all four at once
Aluminium + ABS Enclosure

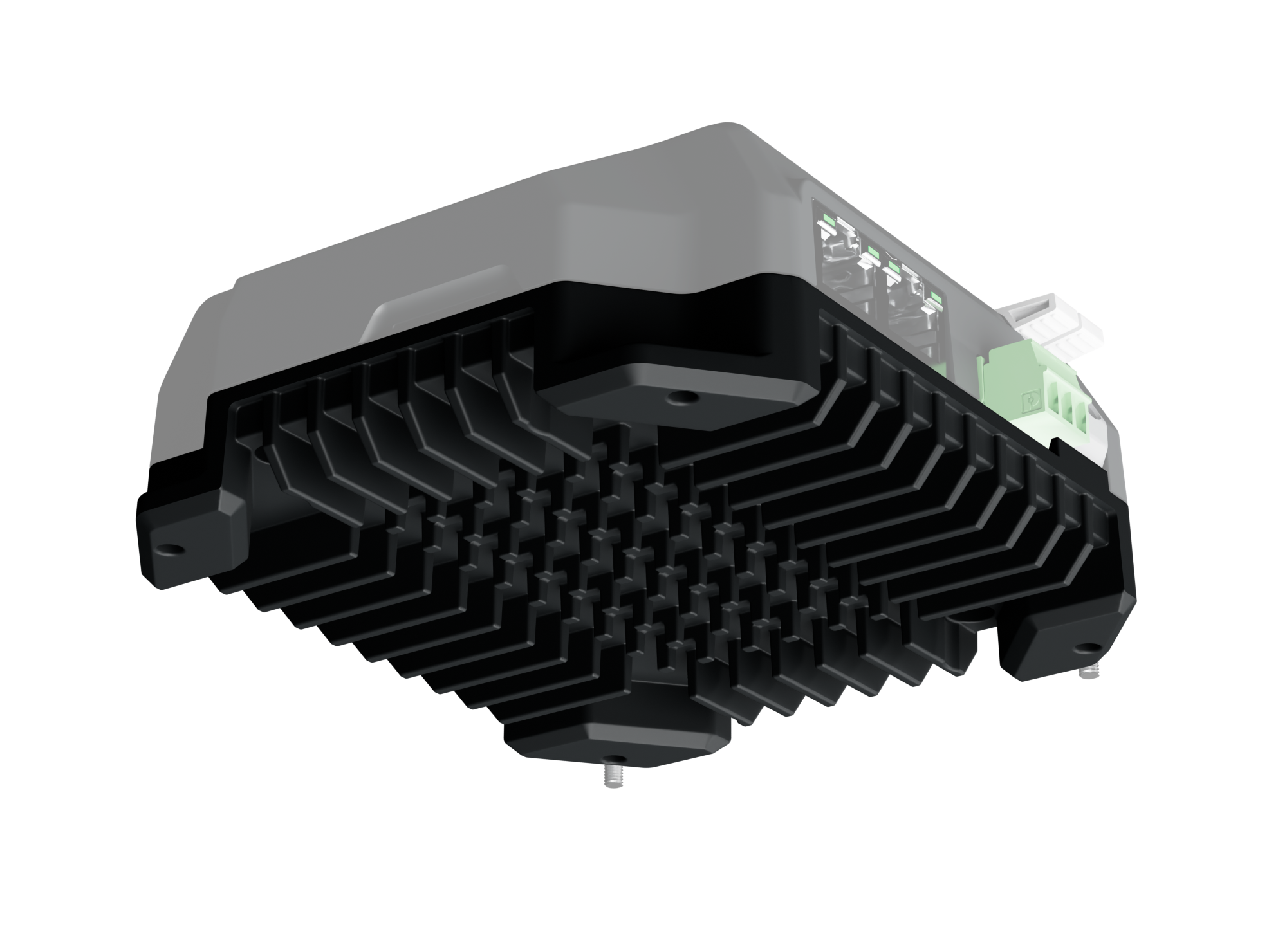

Underside of the PX24 Pixel Controller showing the finned solid aluminium base that acts as its heatsink, the rest of the body faded back

Installed

In the cabinet, on the rail

Pixel outputs terminate on one edge of the enclosure, Ethernet, auxiliary and power on the other, so cable runs leave in two directions rather than one bundle. The screw terminal blocks are removable and the microSD slot sits on the front face.

4 × powered Pixel outputs
2 × 10/100/1000 Mbit/s Ethernet ports
1 × RS485 Auxiliary port, input or output

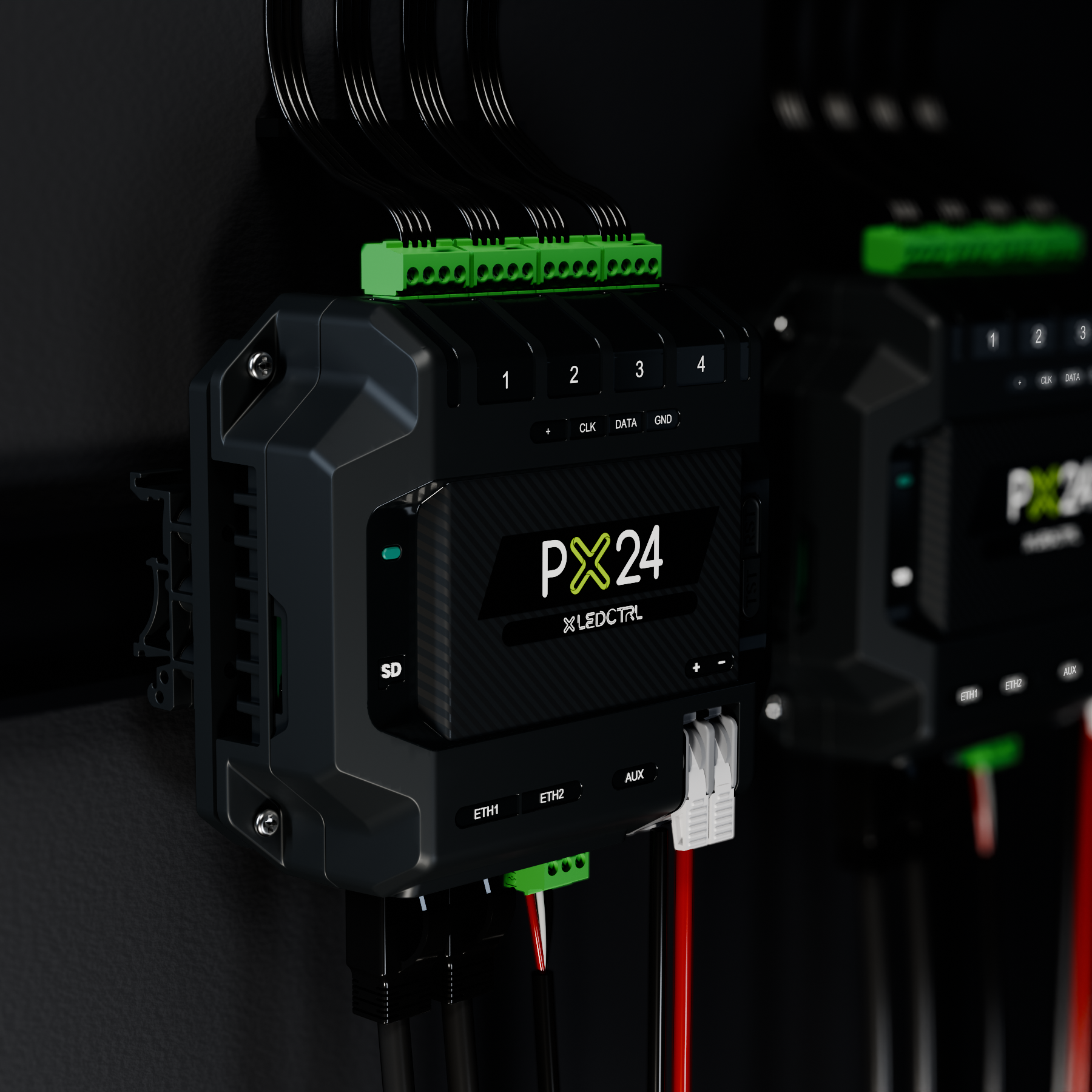

Two PX24 Pixel Controllers on DIN rail inside a dark equipment cabinet, pixel output terminal blocks wired along the top edge and ETH1, ETH2, AUX and power along the bottom

Key Specifications · PX24 Pixel Controller

Pixel Data
Universes	Art-Net / sACN
Pixel Outputs	4 Powered (8 in expanded mode)
Max Pixels / Output	1020 RGB · 768 RGBW
Pixel Protocols	60+ supported
Network & Control
Ethernet	2× Gigabit (Daisy-chain & redundant)
Auxiliary Port	RS485 · DMX512 In or Out
Storage	microSD · Record & Playback
Control Protocols	DMX X-Stream SPI
Power
Input Voltage	5–24 V DC
Output Current	Up to 7 A per output (Smart Electronic Fuse)
Physical
Dimensions	126.5 × 119 × 42 mm
Weight	0.3 kg
Mounting	Wall & DIN-rail
Operating Temp.	−20°C to +70°C
Warranty
Warranty	5 Years (Extendable Warranty Available)

Note: Specifications listed for quick evaluation and integration planning. Configuration of universes, outputs, pixel protocols, and DMX behaviour is fully managed via the web dashboard or LED CTRL software.

PX24 front dimensions — Front Dimensions

Downloads

PX24 Pixel Controller Downloads

Older versions (5)

Only install an older version if advised by LED CTRL support.

v3.14.0LED-Ctrl-Pixel-Mk3-3.14.0.zip v3.13.1LED-Ctrl-Pixel-Mk3-3.13.1.zip v3.13.0LED-Ctrl-Pixel-Mk3-3.13.0.fw v3.10.0LED-Ctrl-Pixel-Mk3-3.10.0.fw v3.8.0LED-Ctrl-Pixel-Mk3-3.8.0.fw

Accessories

PX24 Pixel Controller Accessories

Mounting 1

DIN Rail Mount Kit Compact DIN-rail mounting system for easy PX24 controller installation.

Compare

The rest of the hardware

Every LED CTRL hardware product, side by side. A dash means the datasheet does not state it, or the row does not apply to that kind of device.

Scroll the table sideways →

LED CTRL hardware compared across capacity, network, power, physical and environmental specifications
Product	PX24 You are here Pixel controller	MX96PRO Long-range transmitter	SX2 Long-range receiver	SX4 Long-range receiver	CX10 Compute unit	CX24 Compute unit	CX64 Compute unit	DX10 DMX / RDM gateway	DSX2 DMX / RDM splitter	DSX4 DMX / RDM splitter	DSX6 DMX / RDM splitter	DSX8 DMX / RDM splitter	TX10 Trigger panel	PXTR SPI booster pair

Universes	24	96	12	12	10 (licence)	24 (licence)	64 (licence)	10	—	—	—	—	—	—
Pixel outputs	4 e-fused	—	2 fused	4 fused	—	—	—	—	—	—	—	—	—	—
Max RGB pixels / output	1020 normal · 510 expanded	—	1020	510	—	—	—	—	—	—	—	—	—	—
Max RGBW pixels / output	768 normal · 384 expanded	—	768	384	—	—	—	—	—	—	—	—	—	—

Control protocols	Art-Net · sACN	Art-Net · sACN	—	—	Art-Net	Art-Net	Art-Net	Art-Net · sACN · ESP	DMX-512 · RDM	DMX-512 · RDM	DMX-512 · RDM	DMX-512 · RDM	DMX	—
Pixel protocols	60+	70+	Set at transmitter	Set at transmitter	—	—	—	—	—	—	—	—	—	—
Ethernet ports	2 × 10/100/1000	2 × 10/100/1000	—	—	1 × 1000, 1 × 100	1 × 1000, 1 × 100	1 × 1000, 1 × 100	1 in (RJ45)	—	—	—	—	—	—
Dedicated data outputs	—	8 × RJ45	—	—	—	—	—	10 + 2 DMX/RDM (RJ45)	2 isolated DMX/RDM + 1 Thru	4 isolated DMX/RDM + 1 Thru	6 isolated DMX/RDM + 1 Thru	8 isolated DMX/RDM + 1 Thru	—	—
Auxiliary port	1 × RS485 in/out	1 × RS485 in/out	—	—	2 × RS485, 2 × RS232	2 × RS485, 2 × RS232	2 × RS485, 2 × RS232	—	—	—	—	—	—	—
MicroSD card slot	1	1	—	—	1	1	1	—	—	—	—	—	—	—
Range	—	Up to 300 m to receivers	Up to 300 m from transmitter	Up to 300 m from transmitter	—	—	—	—	—	—	—	—	—	Up to 100 m (SPI extension)

Input power	5–24 V DC	100–240 V DC	5–24 V DC	5–24 V DC	9–36 V DC	9–36 V DC	9–36 V DC	12–24 V DC or PoE	100–277 V AC	100–277 V AC	100–277 V AC	100–277 V AC	12–24 V DC	12–48 V DC
Per output current limit	7 A	—	7.5 A (mini blade fuse)	7.5 A (mini blade fuse)	—	—	—	—	—	—	—	—	—	—
Device current rating	—	—	—	—	—	—	—	—	—	—	—	—	—	6 A max, each unit
Total current	28 A	—	—	—	24 W max	24 W max	24 W max	—	—	—	—	—	—	—
Fault protection	ESD all ports · ±36 V clock/data · ±48 V aux · reverse polarity	ESD all ports · ±36 V data out · ±48 V aux	ESD · ±24 V data and clock/data · over-current	ESD · ±24 V data and clock/data · over-current	ESD and surge on I/O	ESD and surge on I/O	ESD and surge on I/O	Surge and reverse polarity on power	—	—	—	—	—	—

Dimensions	126.5 × 119 × 42 mm	221 × 169 × 42 mm	95 × 78 × 33 mm	95 × 78 × 33 mm	258 × 172 × 42 mm	258 × 172 × 42 mm	258 × 172 × 42 mm	200 × 120 × 42 mm	165 × 88.5 × 76.5 mm	165 × 88.5 × 76.5 mm	256 × 88.5 × 76.5 mm	256 × 88.5 × 76.5 mm	85.5 × 85.5 × 15 mm	—
Weight	0.3 kg	1.1 kg	0.2 kg	0.2 kg	1.2 kg	1.2 kg	1.2 kg	0.46 kg	—	—	—	—	—	—
Enclosure	Aluminium + ABS	Aluminium	High-strength ABS	High-strength ABS	—	—	—	ABS + anodised aluminium	Sheet metal, black powder coat	Sheet metal, black powder coat	Sheet metal, black powder coat	Sheet metal, black powder coat	Aluminium	—
Mounting	Wall & DIN-rail	Panel, wall & rack	Wall, plate or DIN-rail	Wall, plate or DIN-rail	Table or wall, VESA bracket	Table or wall, VESA bracket	Table or wall, VESA bracket	Rack, surface or DIN	DIN rail (35 mm)	DIN rail (35 mm)	DIN rail (35 mm)	DIN rail (35 mm)	Built-in	—
IP rating	—	—	—	—	—	—	—	IP20	IP20	IP20	IP20	IP20	IP20	IP20

Ambient operating temperature	−20 °C to +70 °C	−10 °C to +60 °C	−20 °C to +55 °C	−20 °C to +55 °C	−20 °C to +60 °C	−20 °C to +60 °C	−20 °C to +50 °C	−20 °C to +50 °C	−20 °C to +60 °C	−20 °C to +60 °C	−20 °C to +60 °C	−20 °C to +60 °C	−30 °C to +50 °C	—

Frequently Asked Questions

5 Questions

Common questions, answered.

How many universes and pixel outputs does the PX24 drive?

The PX24 handles 24 universes over Art-Net / sACN across 4 powered outputs, expandable to 8 outputs.

What pixel and control protocols does the PX24 support?

It supports 60+ pixel protocols and controls over DMX, X-Stream and SPI, with an auxiliary RS485 / DMX512 port that works as an input or an output.

Does the PX24 protect its outputs and support data redundancy?

Yes. Each output has a Smart Electronic Fuse delivering up to 7 A, and the two Gigabit Ethernet ports support daisy-chaining and redundant data paths.

How is the PX24 mounted and powered?

It mounts on a wall or DIN-rail, measures 126.5 × 119 × 42 mm at 0.3 kg, and runs on 5–24 V DC, operating from -20°C to +70°C.

Can the PX24 store and play back shows on its own?

Yes — it has onboard microSD record and playback, and carries a 5-year warranty (extendable).
