Aqua Underwater Drum Light
S
8

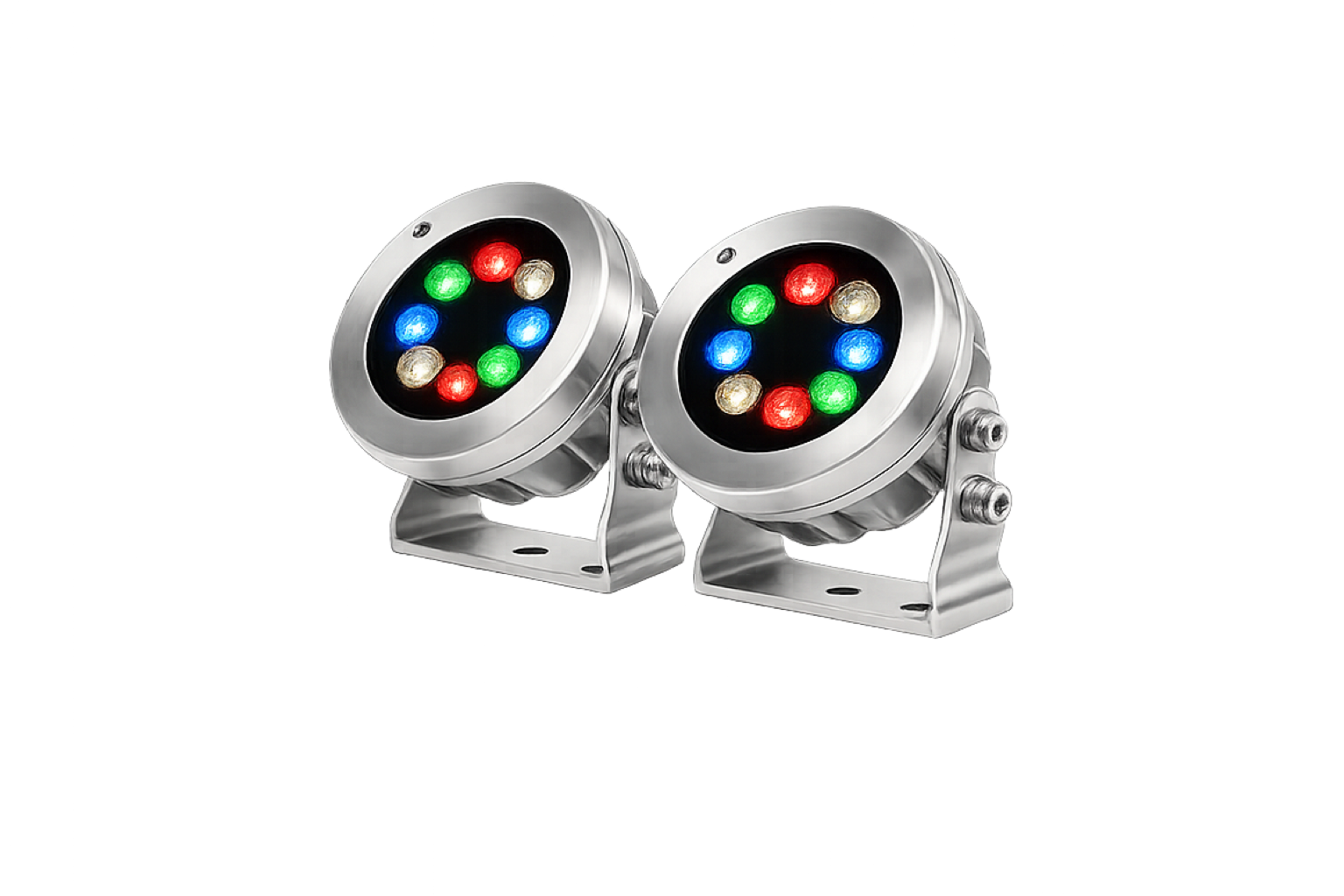

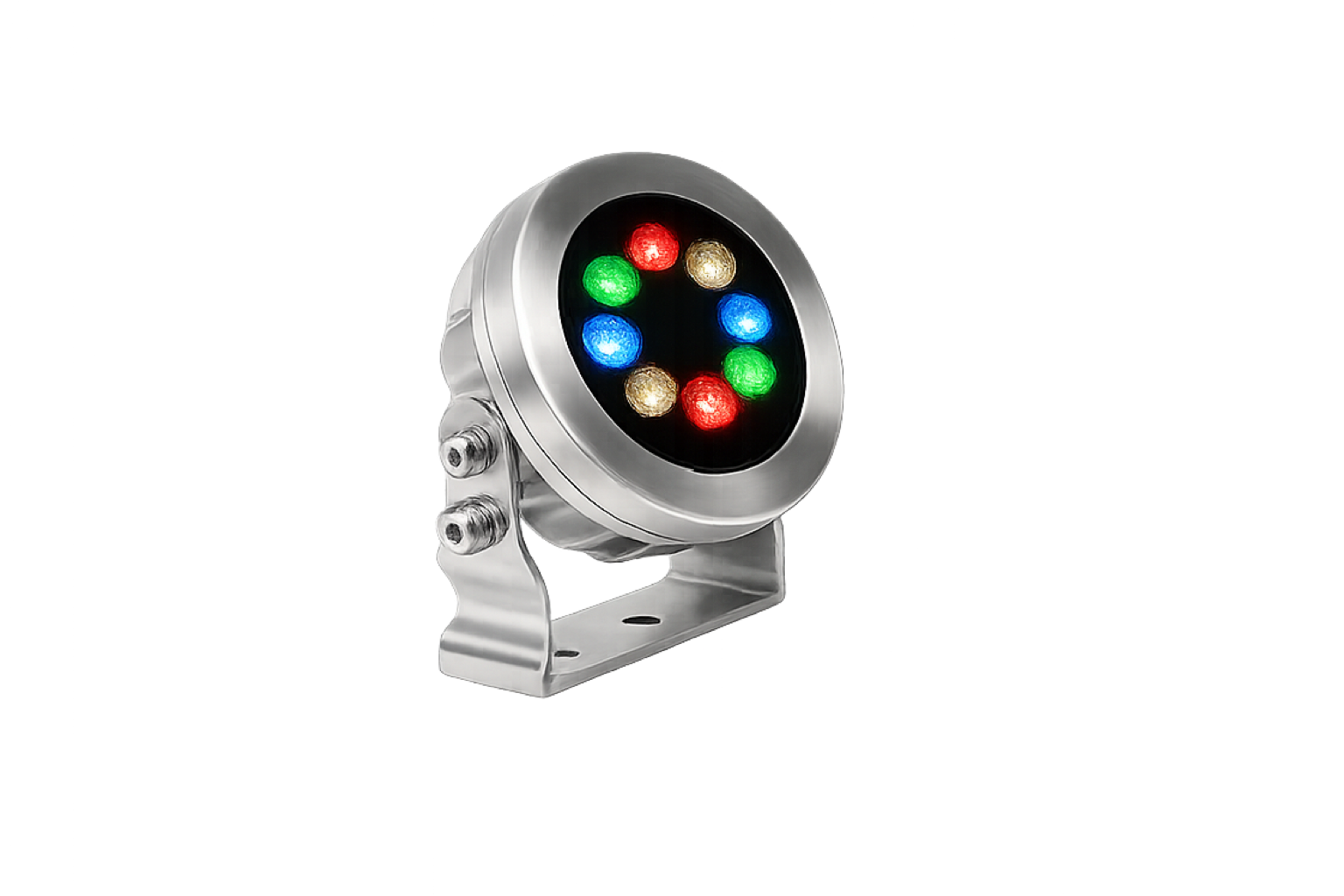

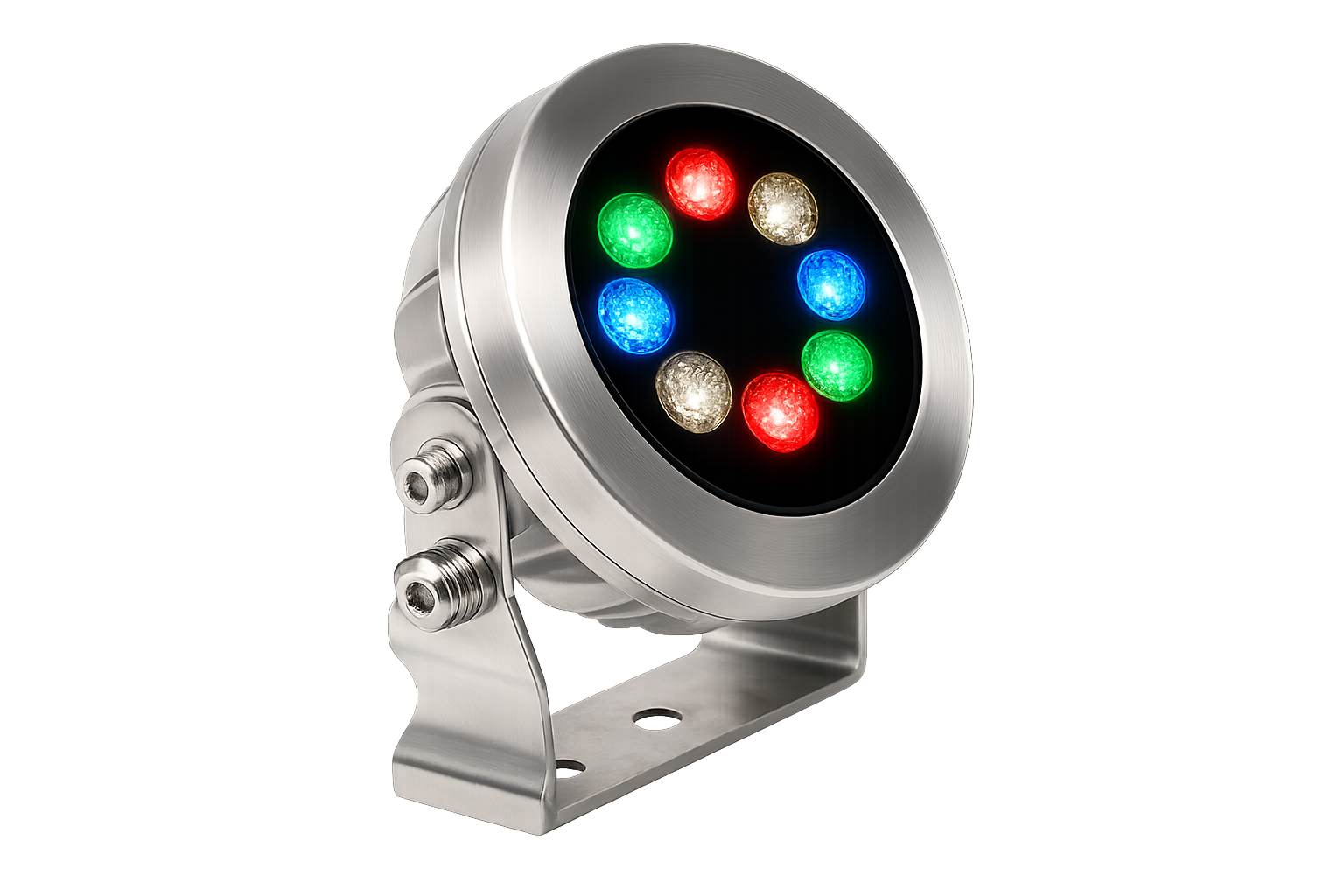

The AXS8 is a multi-LED underwater drum light for pools, fountains, and marine installations. Eight high-power LEDs deliver beam angles from 10° to 60°, available in RGB, RGBW, or single-colour white. Die-cast 316L stainless steel, IP68 to 6 m depth, in underwater and in-ground configurations.
| Electrical | |
|---|---|
| Power Consumption | 8 W max |
| Operating Voltage | 24 V DC |
| Operating Temperature | −20°C to +50°C (−4°F to +122°F) |
| Storage Temperature | −20°C to +70°C (−4°F to +158°F) |
| Physical | |
| Fixture Dimensions | ø125 mm × H 108 mm |
| Housing | Die-Cast 316L Stainless Steel (Marine Grade) |
| Source Life | 50,000 – 70,000 hours / L70 at 25°C |
| Mounting Accessories | Underwater & In-Ground Configurations |
| Optical | |
| Beam Angle | 10° – (25° – 40° – 10°×35° – 10°×60° optional) with encapsulated lens |
| Colour Range |
RGBW
RGB
DW
W
|
| White CCT |
2400K
2700K
3000K
3500K
4000K
5000K
6000K
|
| LED Type | 8 × High-Power LEDs |
| Control | |
| Control Features | External constant current driver · DMX/RDM addressable |
| Ratings | |
| Ingress Rating |
IP68
|
| Warranty | 5 Years (Extendable Warranty Available) |
Note: Specification summary for quick evaluation and layout planning. Colour mode, CCT, beam angle, and lens option are configurable for underwater or in-ground pool, fountain, or marine installations.
AXS 8 Aqua Underwater Drum Light Downloads
Interactive Configurator
Pick colour mode, CCT, beam angle, lens option, and configuration type. Get a build-ready AXS 8 solution for your underwater or in-ground pool, fountain, or marine installation.
