Aqua Underwater Drum Light

A S 18

The AXS18 is a high-output RGBW underwater drum light for large-scale pools, fountains, and marine installations. Eighteen high-power LEDs span beam angles from 10° to 60°, available in RGBW, RGB, or white. Die-cast 316L stainless steel, IP68 to 6 m depth, with daisy-chain support for up to four units per driver.

  • Colour RGBW · RGB · DW · W
  • Beam 10°
  • Build IP68
  • Control DMX
Configure Your Product View Specifications

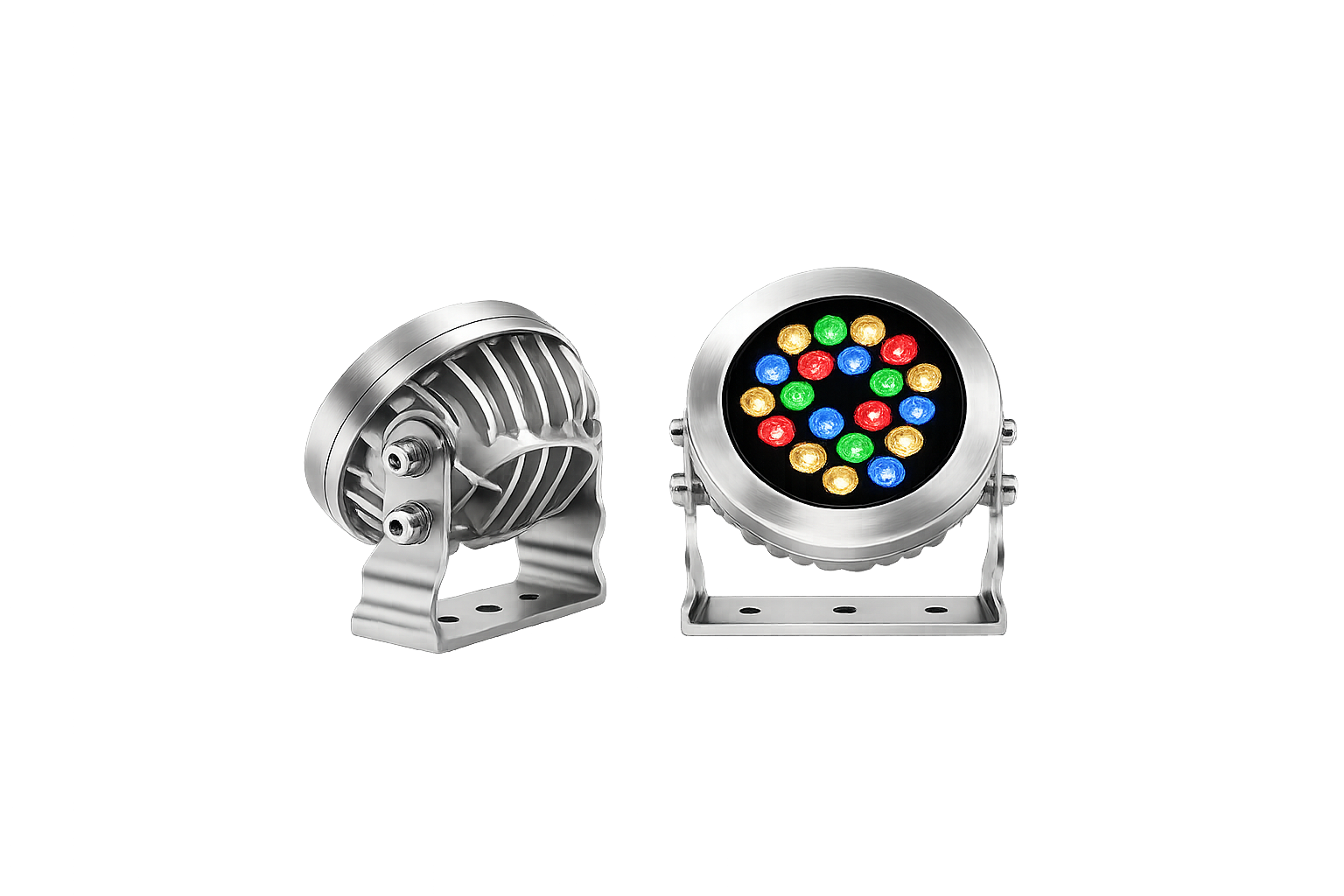

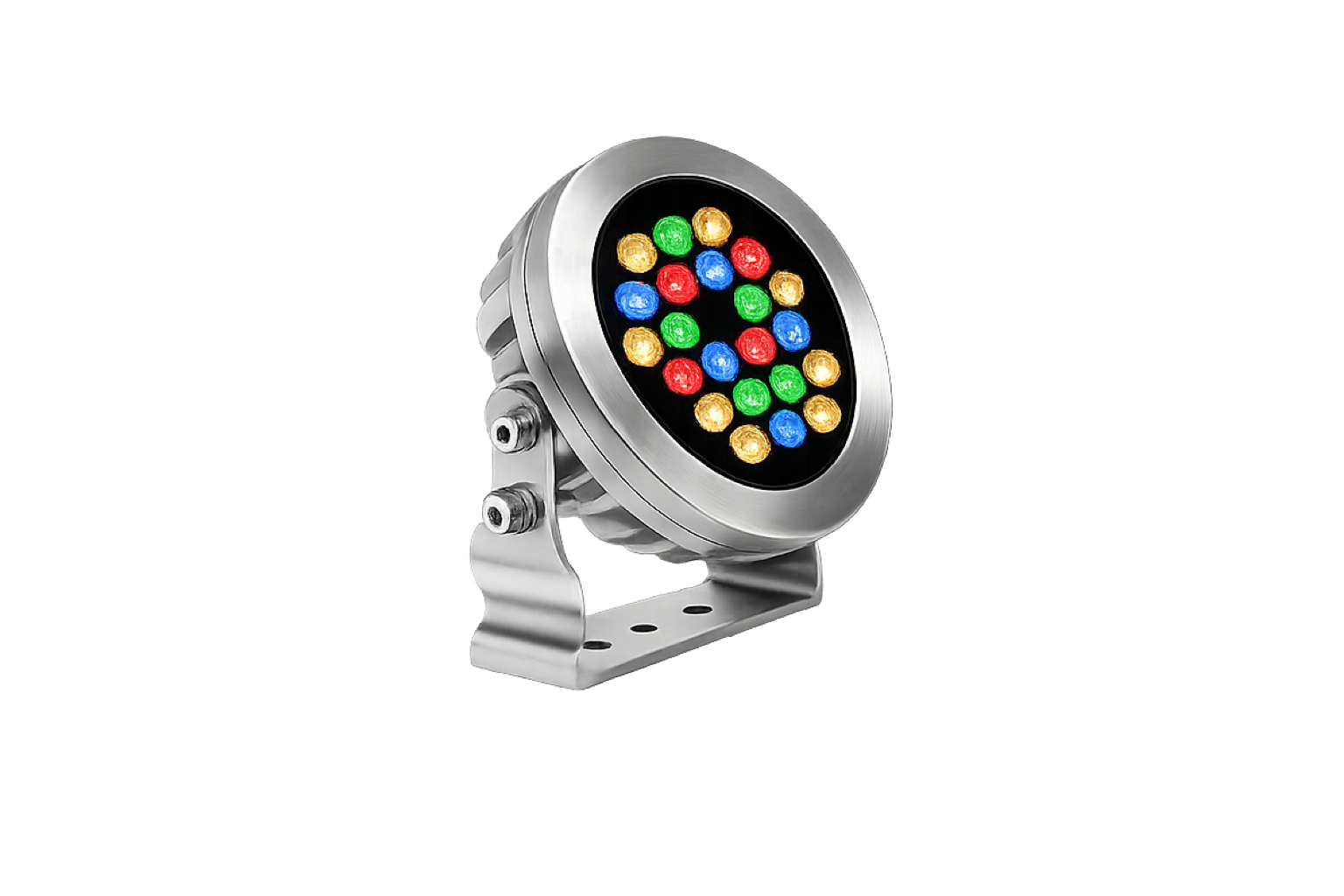

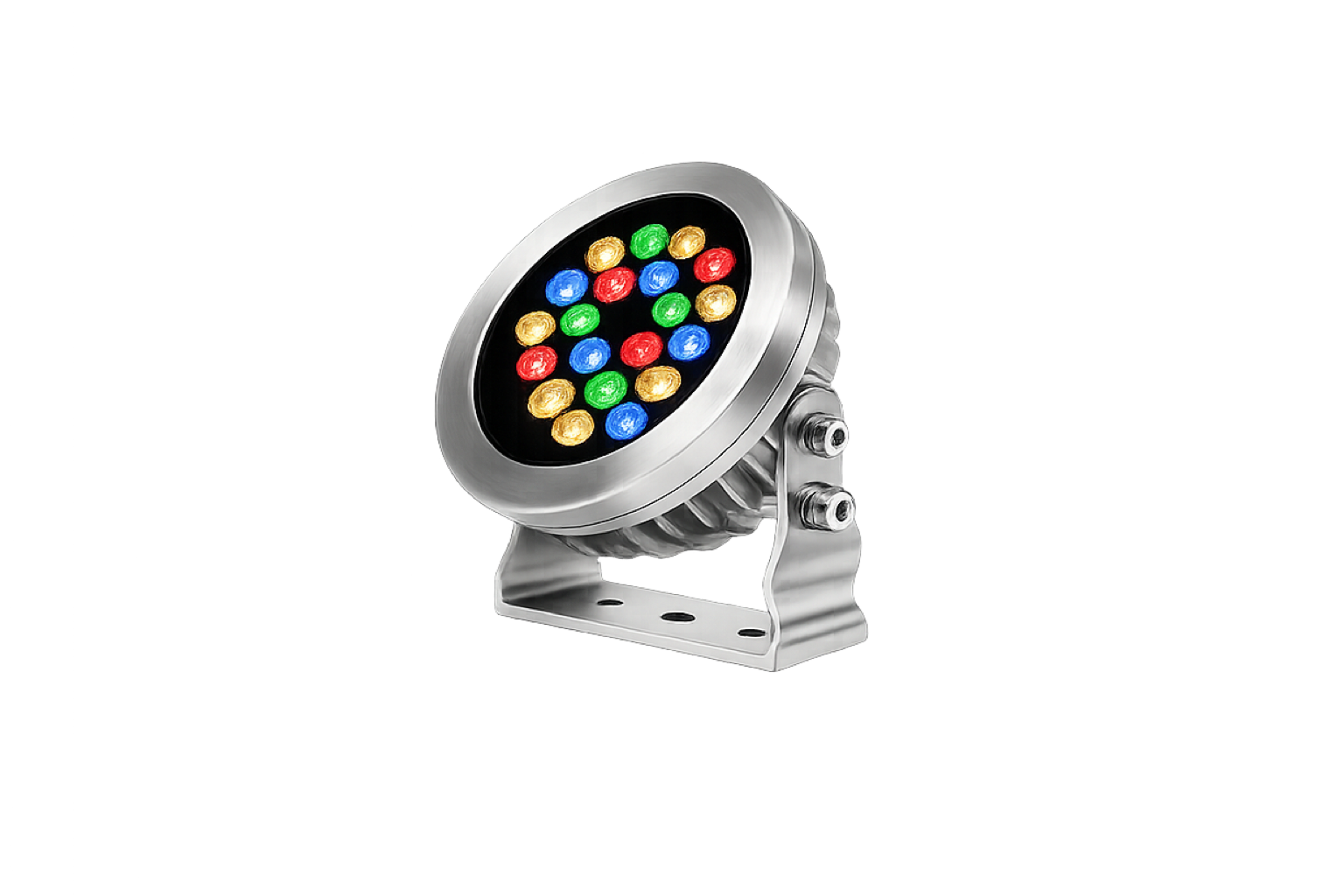

AXS 18 Aqua Underwater Drum Light render
1 / 4

Key Specifications · AXS 18 Aqua Underwater Drum Light

Electrical
Power Consumption 18 W max
Operating Voltage 24 V DC
Operating Temperature −20°C to +50°C (−4°F to +122°F)
Storage Temperature −20°C to +70°C (−4°F to +158°F)
Physical
Fixture Dimensions ø166 mm × H 130 mm
Housing Die-Cast 316L Stainless Steel (Marine Grade)
Source Life 50,000 – 70,000 hours / L70 at 25°C
Optical
Beam Angle 10° – (25° – 40° – 10°×35° – 10°×60° optional) with encapsulated lens
Colour Range
RGBW RGBW
RGB RGB
Dynamic White DW
White W
White CCT
2400K 2400K
2700K 2700K
3000K 3000K
3500K 3500K
4000K 4000K
5000K 5000K
6000K 6000K
LED Type High Power LEDs
Light Source 18pcs LEDs
Control
Control Protocols
DMX DMX / RDM
Ratings
Ingress Rating
IP rating icon IP68
Warranty 5 Years (Extendable Warranty Available)

Note: Specification summary for quick evaluation and layout planning. Colour mode, CCT, beam angle, and lens option are configurable for underwater or in-ground pool, fountain, or marine installations.

Fixture Dimensions
AXS 18 fixture dimensions
In-Ground Dimensions
AXS 18 in-ground dimensions

Downloads

AXS 18 Aqua Underwater Drum Light Downloads

Specifications

AXS18_Specifications_Sheet.pdf

Product Configurator

Interactive Configurator

Configure AXS 18 for Your Project

Pick colour mode, CCT, beam angle, lens option, and configuration type. Get a build-ready AXS 18 solution for your underwater or in-ground pool, fountain, or marine installation.

  • Live 3D Preview
  • Rule-Validated Options
  • Instant Part Number

Frequently Asked Questions

7 Questions

Common questions, answered.

Yes — it is rated IP68 in a die-cast 316L marine-grade stainless steel housing.
It measures Ø166 mm × 130 mm high.
A 10° beam as standard, with 25°, 40°, 10°×35° and 10°×60° optional via encapsulated lens.
It offers RGBW, RGB, Dynamic White and White, with white from 2400K to 6000K.
Up to 18 W on 24 V DC, from 18 high-power LEDs.
50,000–70,000 hours (L70 at 25°C).
It is controlled over DMX / RDM and carries a 5-year warranty (extendable).
