Pixel LED Grazer

B G 40

Q: What beam angles are available on the BXG 40?

The grazer is offered in 15°, 25°, 40° and 60° round beams plus elliptical 10°×35°, 10°×60° and 30°×60° distributions.

Q: What control protocols does the BXG 40 support?

It supports X-Stream, DMX and SPI .

Q: Is the BXG 40 suitable for exposed outdoor facades?

Yes — it is rated IP66 and IK07 , built from corrosion-resistant anodised brushed aluminium with a tempered-glass lens, and operates from -20°C to +50°C.

Q: What are the power and length options?

The BXG is available in three lengths — 500 mm (20 W), 1000 mm (40 W) and 1500 mm (60 W) — all 70 mm wide and 35 mm high, running on 100–240 V AC.

Q: What colours and CRI does the BXG 40 offer?

Colour options are RGBW, RGB, RGBA, Dynamic White and White , with white from 2400K to 6000K. CRI is greater than 82, with 92 available on request .

Q: How is the BXG 40 mounted and what warranty does it carry?

It fixes via a 30° swivel, 90° swivel or foot mount and carries a 5-year warranty (extendable). Rated source life is 50,000 hours (L70 at 25°C).

The BXG 40 is a high-power LED grazer for architectural work, with bright uniform wash across facades, walls, and structural detail. Anodised aluminium body, tempered glass lens, IP66 and IK07. Multiple beam angles and control options for creative and precision lighting.

Colour RGBW, RGB, DW, W
Pixels 6 px / 1.5 m
Build IP66 · IK07
Control X-Stream · DMX · SPI

Configure Your Product View Specifications

1 / 6

Specifications Downloads Accessories Configurator FAQs

Key Specifications · BXG 40 Pixel LED Grazer

Electrical
Power Consumption	20 W (500 mm) / 40 W (1000 mm) / 60 W (1500 mm)
Operating Voltage	100–240 V AC
Operating Temperature	−20°C to +50°C (−4°F to +122°F)
Storage Temperature	−20°C to +80°C (−4°F to +176°F)
Physical
Fixture Dimensions	(L) 500 mm / 1000 mm / 1500 mm · (W) 70 mm · (H) 35 mm
Housing	Anodised Aluminium, Black, White or Custom
Weight	1.9 kg (500 mm) / 3.8 kg (1000 mm) / 5.7 kg (1500 mm)
Finish	Anodised Brushed Aluminium, Corrosion Resistant
Lens	Tempered Glass
Mounting Options	30° Swivel Mount, 90° Swivel Mount, Foot Mount
Source Life	50,000 hours / L70 at 25°C
Connection	6-Pin AC / DMX Cable In/Out c/w IP Connectors
Connectors	Multipin IP68 Connectors
Optical
Beam Angle	15° · 25° · 40° · 60° · 10°×35° · 10°×60° · 30°×60°
Pixels	Up to 6 pixels per 1.5 m / fixture
CRI	>82 (92 available on request)
Colour Range
White CCT	2400K 2700K 3000K 3500K 4000K 5000K 6000K
LED Type	High Power LEDs
Control
Control Protocols	X-Stream DMX SPI
Ratings
Ingress & Impact	IP66 IK07
Warranty	5 Years (Extendable Warranty Available)

Note: Specification summary for quick evaluation and layout planning. Length, beam angle, colour, and finish are configurable to suit your grazer installation.

BXG 40 dimensions side — Dimensions (Side)

Downloads

BXG 40 Grazer Downloads

Specifications

BXG40_Grazer_Specification_Sheet.pdf

Accessories

BXG 40 Pixel LED Grazer Accessories

Mounting Brackets 3

Foot Mount Solid base for wall or ground installation.

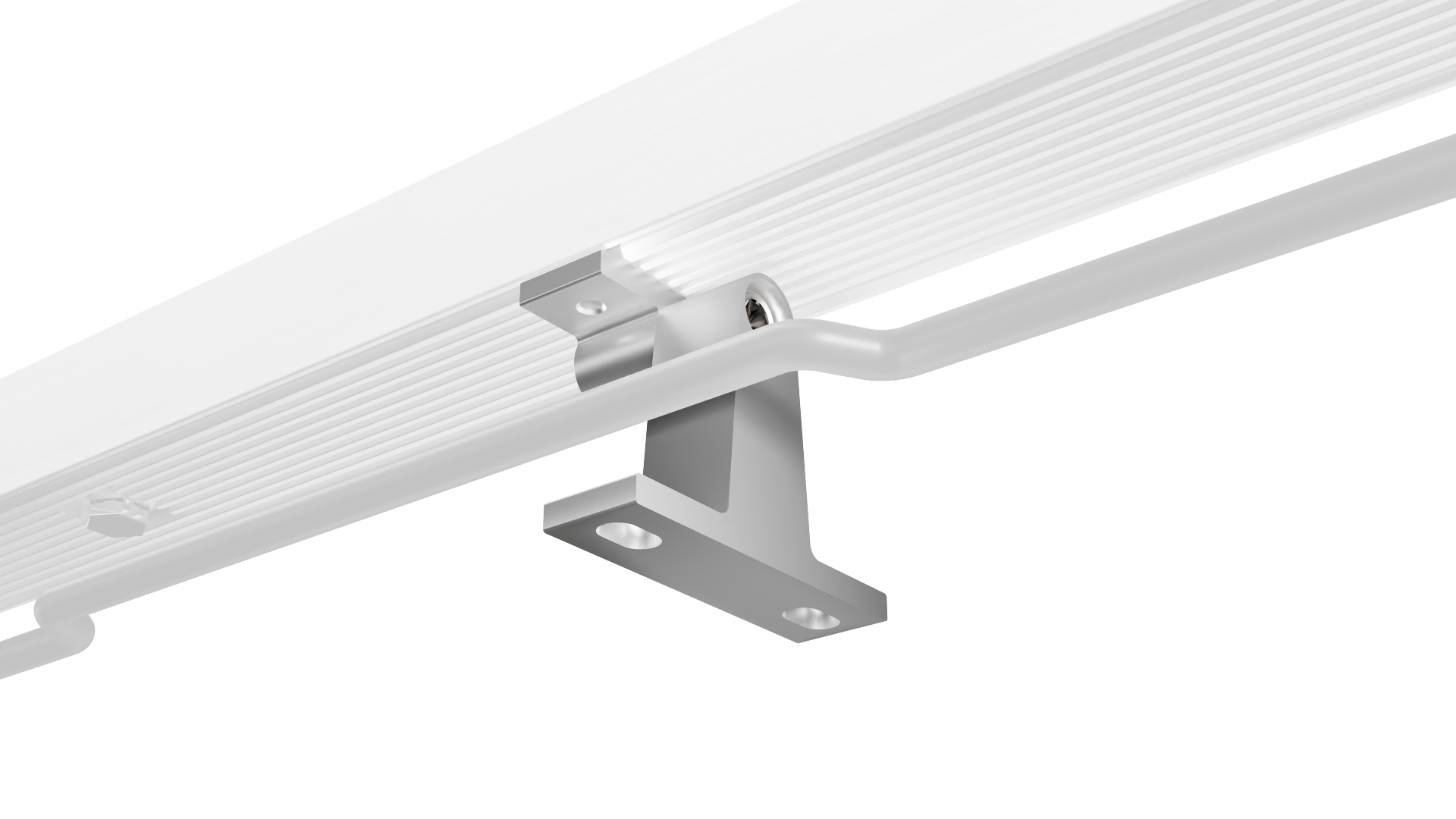

30° Swivel Mount Compact bracket for quick ±30° aiming.

90° Swivel Mount Wide-angle bracket with ±90° adjustment.

Product Configurator

Interactive Configurator

Configure BXG 40 for Your Project

Pick length, beam angle, colour, control, and finish. Get a build-ready BXG 40 configuration for your install.

Live 3D Preview
Rule-Validated Options
Instant Part Number

Frequently Asked Questions

6 Questions

Common questions, answered.

What beam angles are available on the BXG 40?

The grazer is offered in 15°, 25°, 40° and 60° round beams plus elliptical 10°×35°, 10°×60° and 30°×60° distributions.

What control protocols does the BXG 40 support?

It supports X-Stream, DMX and SPI.

Is the BXG 40 suitable for exposed outdoor facades?

Yes — it is rated IP66 and IK07, built from corrosion-resistant anodised brushed aluminium with a tempered-glass lens, and operates from -20°C to +50°C.

What are the power and length options?

The BXG is available in three lengths — 500 mm (20 W), 1000 mm (40 W) and 1500 mm (60 W) — all 70 mm wide and 35 mm high, running on 100–240 V AC.

What colours and CRI does the BXG 40 offer?

Colour options are RGBW, RGB, RGBA, Dynamic White and White, with white from 2400K to 6000K. CRI is greater than 82, with 92 available on request.

How is the BXG 40 mounted and what warranty does it carry?

It fixes via a 30° swivel, 90° swivel or foot mount and carries a 5-year warranty (extendable). Rated source life is 50,000 hours (L70 at 25°C).
