Linear Grazer Maximum Output

B G 100

The BXG 100 is a high-performance architectural linear LED grazer engineered for façade, bridge and infrastructure lighting where maximum output and long-term reliability are essential. Built from corrosion-resistant anodised aluminium with tempered glass and rated IP66 / IK08, it performs in demanding outdoor environments with support for DMX and X-Stream control.

  • Colour RGBW, RGBA, RGB, DW, W
  • Power 30–150 W
  • Build IP66 · IK08 · CE
  • Control X-Stream · DMX · SPI
Configure Your Product View Specifications

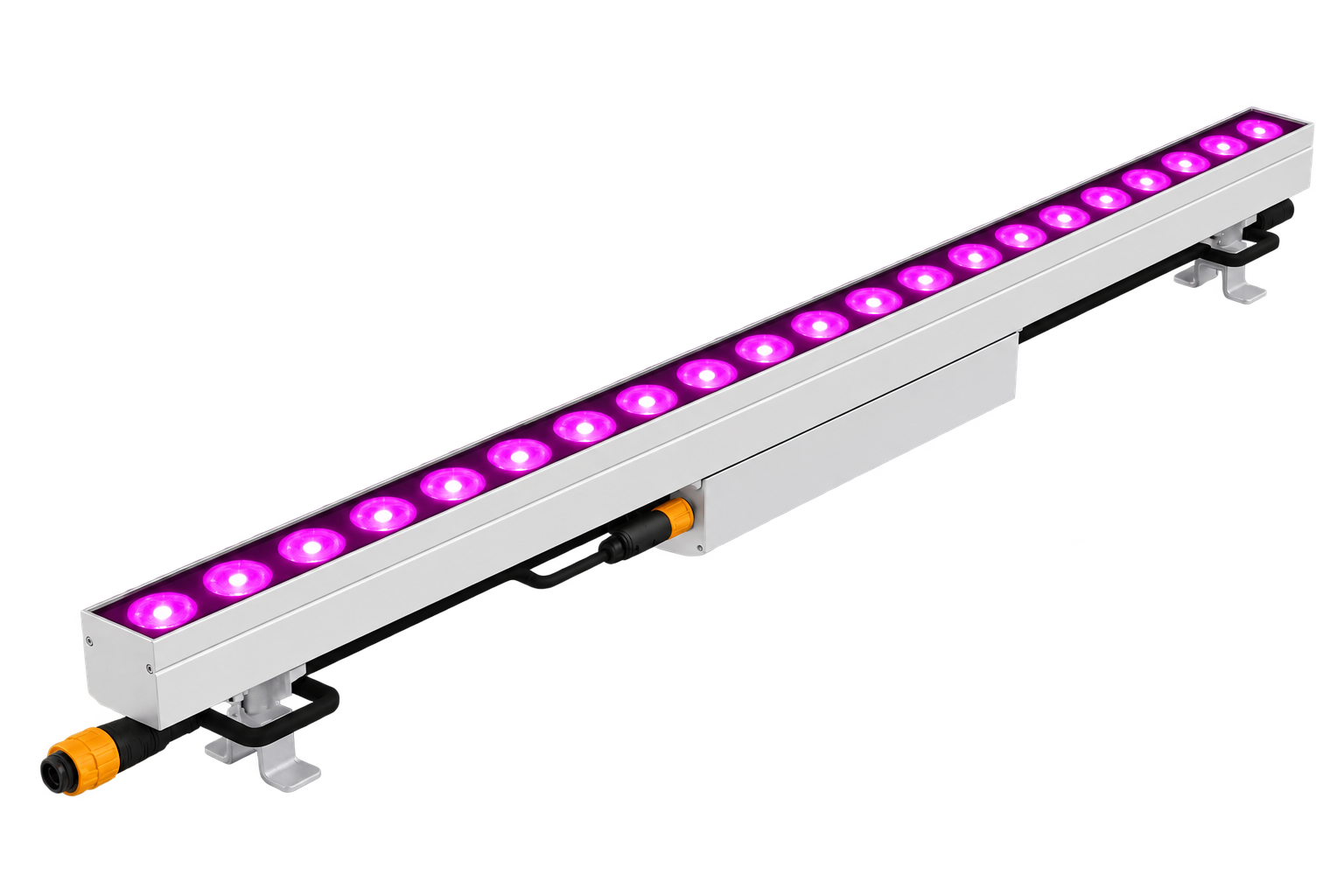

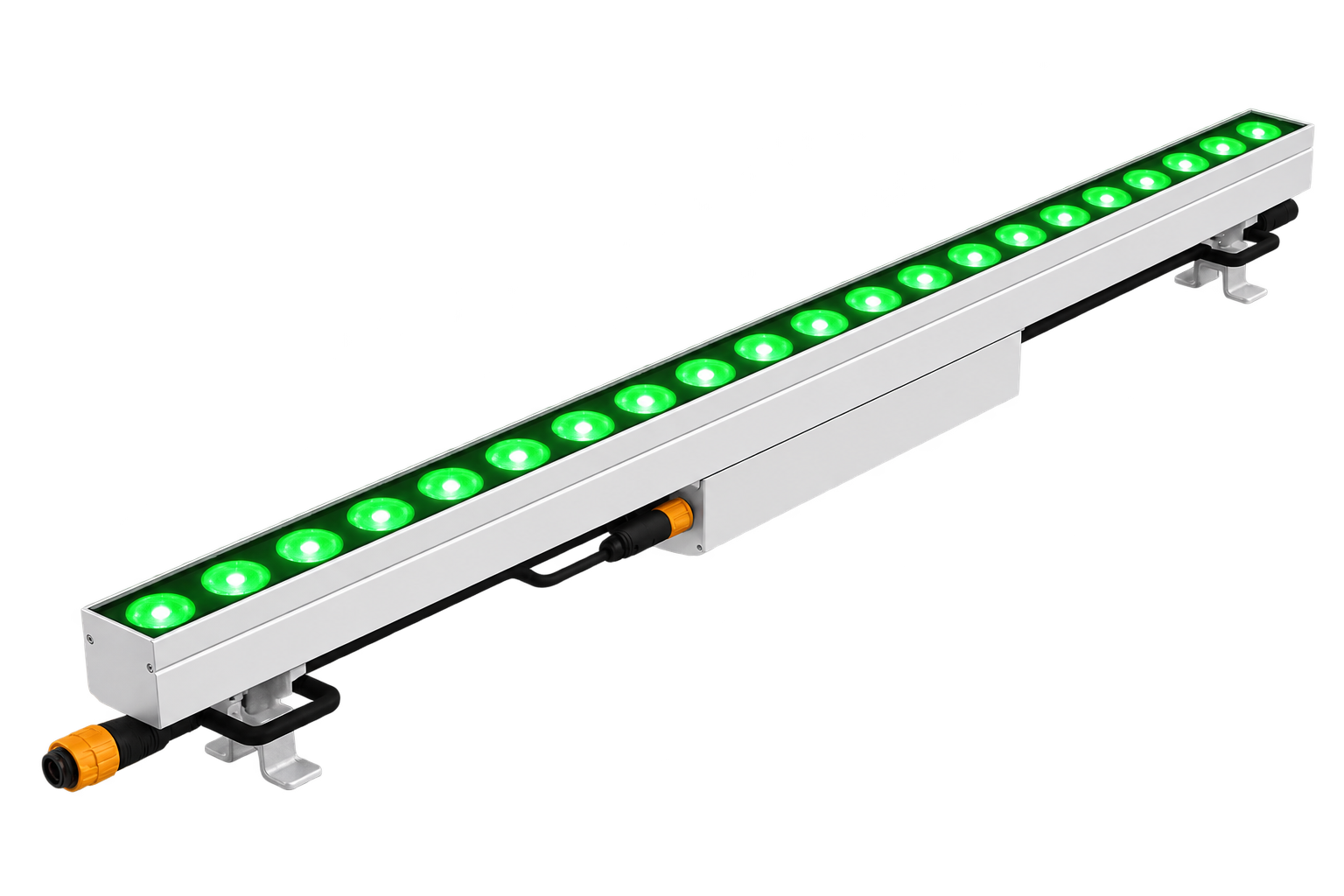

BXG 100 Linear Grazer Maximum Output render
1 / 4

Key Specifications · BXG 100 Linear Grazer Maximum Output

Electrical
Power Consumption 30 W (300 mm) · 60 W (600 mm) · 90 W (900 mm) · 100 W (1000/1200 mm) · 150 W (1500 mm)
Operating Voltage 100–277 V AC
Operating Temperature −40°C to +50°C (−40°F to +122°F)
Physical
Fixture Dimensions (L) 300 / 600 / 900 / 1000 / 1200 / 1500 mm · (W) 56 mm · (H) 114 mm
Weight 1.63 kg (300 mm) · 3.3 kg (600 mm) · 4.88 kg (900 mm) · 5.41 kg (1000 mm) · 6.5 kg (1200 mm) · 8.12 kg (1500 mm)
Housing Anodised Aluminium, Black, White or Custom RAL (with Tempered Glass Lens)
Finish Anodised Brushed Aluminium, Corrosion Resistant
Source Life 50,000 hours / L70 at 25°C
Mounting Options Swivel Mount & Lockable Mount
Connectors 6-Core AC/DMX Cable with IP Connectors
Maximum Fixtures in Series 15 m (50) @120 V · 30 m (100) @240/277 V AC
Optical
Beam Angle 10° · 25° · 40° · 60° · 80° · 10°×25° · 10°×40° · 10°×60° · 30°×60° · 40°×70°
Colour Range
RGBW
RGBA
RGB
Dynamic White
White
White CCT
2400K 2400K
2700K 2700K
3000K 3000K
3500K 3500K
4000K 4000K
5000K 5000K
6000K 6000K
Accurate Colour Control RGBW Configurations with Selectable CCT
LED Type High-Power Quad-Chip 4-in-1 RGBW
Centre Beam Candela 1979 cd (RGBW 10°×60°, full on)
Control
Control Protocols
X-Stream X-Stream
DMX DMX
SPI SPI
Ratings
Ingress & Certification
IP rating icon IP66
IK rating icon IK08
CE
Warranty 5 Years (Extendable Warranty Available)

Note: Specification summary for quick evaluation and layout planning. Length, beam angle, colour, and finish are configurable to suit your grazer installation.

Bracket Dimensions
BXG 100 bracket dimensions

Downloads

BXG 100 Linear Grazer Maximum Output Downloads

Specifications

BXG100_Grazer_Specification_Sheet.pdf

Product Configurator

Interactive Configurator

Configure BXG 100 for Your Project

Pick length, beam angle, colour, control, and finish. Get a build-ready BXG 100 configuration for your install.

  • Live 3D Preview
  • Rule-Validated Options
  • Instant Part Number

Frequently Asked Questions

8 Questions

Common questions, answered.

The BXG 100 is the maximum-output model in the BXG grazer range, a linear LED grazer for façade, bridge and infrastructure lighting, rated IP66 and IK08 for demanding outdoor environments.
Lengths of 300, 600, 900, 1000, 1200 and 1500 mm, drawing 30 W to 150 W depending on length.
It runs on 100–277 V AC mains.
It uses a 4-in-1 high-power RGBW chip (also RGBA, RGB and Dynamic White), with selectable CCT from 2400K to 6000K.
10°, 25°, 40°, 60°, 80°, plus asymmetric 10°×25°, 10°×40°, 10°×60°, 30°×60° and 40°×70°.
Up to 15 m (50 fixtures) at 120 V, or 30 m (100 fixtures) at 240/277 V AC.
It supports X-Stream (with data redundancy), DMX and SPI.
50,000 hours (L70 at 25°C), with a 5-year warranty (extendable).
