Linear Grazer Mini

B G 14

The BXG 14 is a compact pixel LED grazer for architectural and façade lighting, with a slim aluminium-extrusion housing and tempered glass rated IP66 for outdoor use. Its 4-in-1 RGBW LEDs with SPI and X-Stream control enable precise pixel mapping across linear beam and mounting options for a wide range of projects.

  • Colour RGBW, RGBA, RGB, DW, W
  • Beam 20°×90° / 40°×90°
  • Build IP66 · CE
  • Control X-Stream · DMX · SPI
Configure Your Product View Specifications

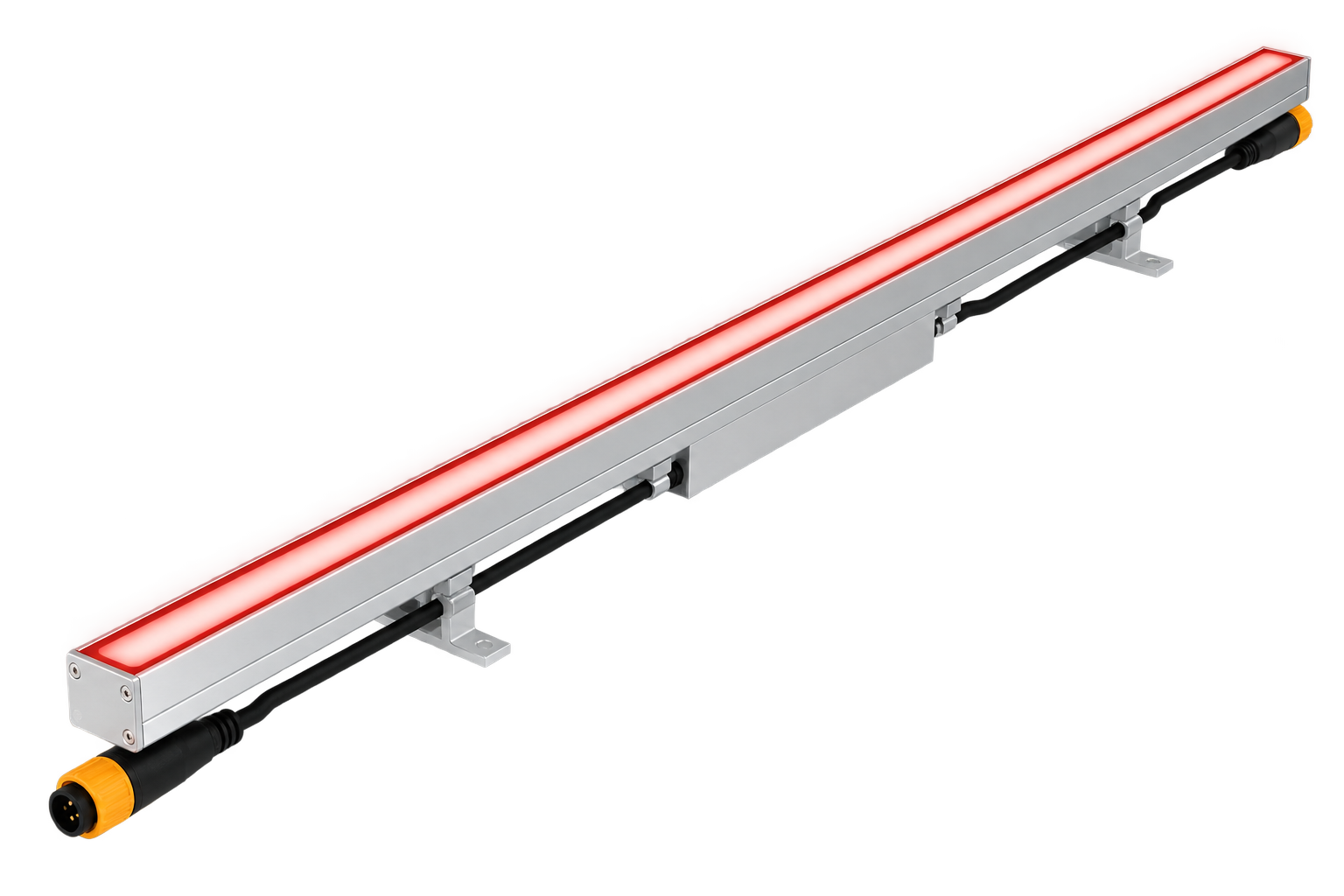

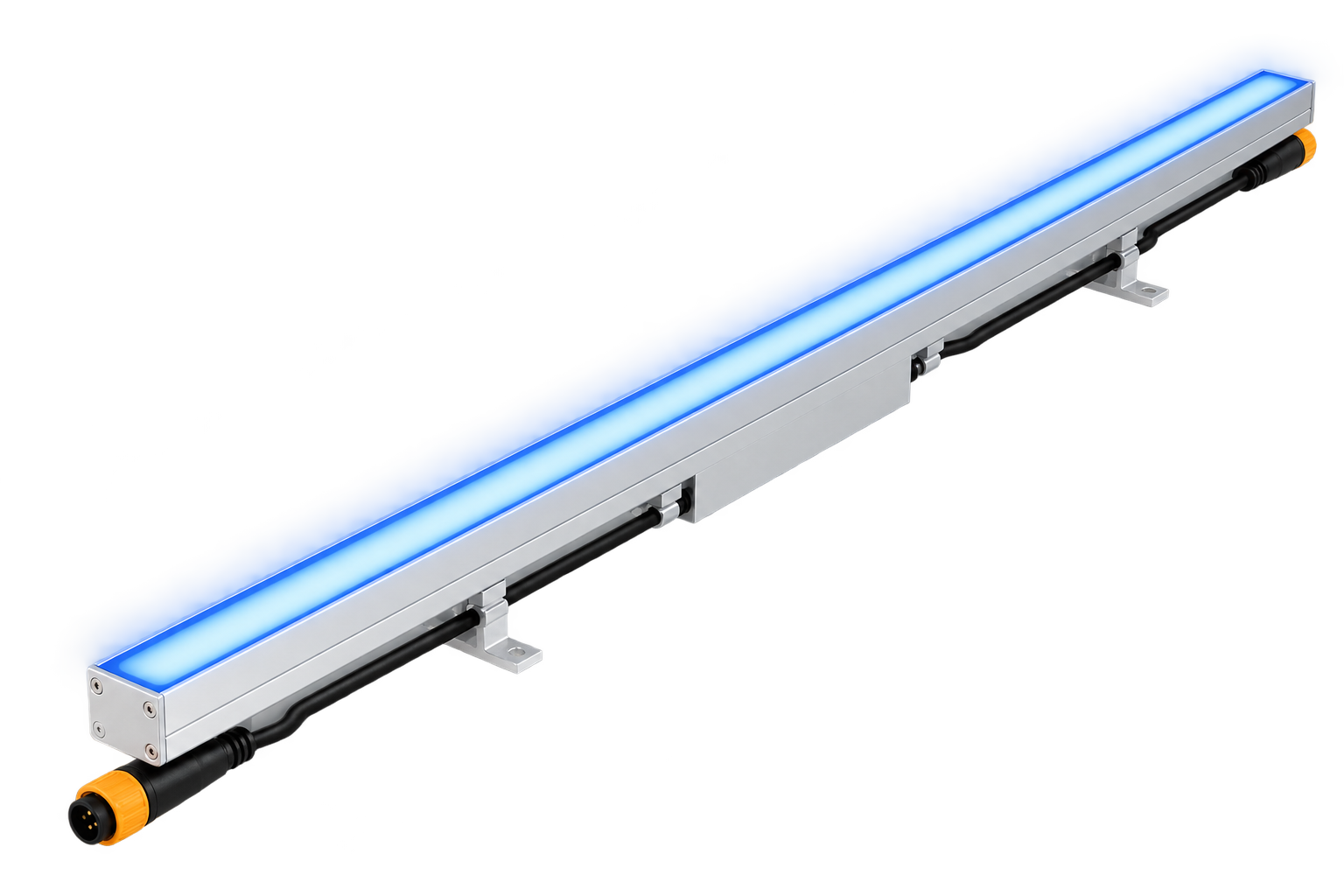

BXG 14 Linear Grazer Mini render
1 / 4

Key Specifications · BXG 14 Linear Grazer Mini

Electrical
Power Consumption 7 W (500 mm) / 14 W (1000 mm)
Operating Voltage 24 V DC / 48 V DC
Operating Temperature −20°C to +50°C (−4°F to +122°F)
Storage Temperature −20°C to +70°C (−4°F to +158°F)
Physical
Fixture Dimensions (Hook-On Bracket) (L) 500 mm / 1000 mm · (W) 26.7 mm · (H) 52.5 mm
Fixture Dimensions (Adjustable Bracket) (L) 500 mm / 1000 mm · (W) 30 mm · (H) 54.8 mm
Housing Aluminium Extrusion with Tempered Clear Glass
Housing Colours Anodised Aluminium, Black, White or Custom RAL
Weight 0.925 kg (500 mm) / 1.85 kg (1000 mm)
Pixels 4 pixels (500 mm) / 8 pixels (1000 mm)
Mounting Options 30° Adjustable Bracket, 90° Adjustable Bracket, Hook-On Bracket
Source Life 50,000 hours / L70 at 25°C
Connection 4-Core DC/SPI Cable In & Out C/W Connectors
Connectors Multipin Connectors
Optical
Beam Angle 20°×90° · 40°×90° (Linear Line Effect)
Colour Range
RGBW
RGBA
RGB
Dynamic White
White
White CCT
2400K 2400K
2700K 2700K
3000K 3000K
3500K 3500K
4000K 4000K
5000K 5000K
6000K 6000K
Accurate Colour Control RGBW Configurations with Selectable CCT
LED Type SMD LEDs
Control
Control Protocols
X-Stream X-Stream
DMX DMX
SPI SPI
Ratings
Ingress & Certification
IP rating icon IP66
CE
Warranty 5 Years (Extendable Warranty Available)

Note: Specification summary for quick evaluation and layout planning. Length, beam angle, colour, and finish are configurable to suit your grazer installation.

Adjustable Bracket
BXG 14 adjustable bracket dimensions
Hook-On Bracket
BXG 14 hook-on bracket dimensions

Downloads

BXG 14 Linear Grazer Mini Downloads

Specifications

BXG14_Grazer_Specification_Sheet.pdf

Accessories

BXG 14 Linear Grazer Mini Accessories

Mounting Brackets 2

30 degree Swivel Mount
30° Swivel Mount Quick-aim bracket with ±30° adjustment.
90 degree Swivel Mount
90° Swivel Mount Extended-angle bracket with ±90° tilt.

Product Configurator

Interactive Configurator

Configure BXG 14 for Your Project

Pick length, beam angle, colour, control, and finish. Get a build-ready BXG 14 configuration for your install.

  • Live 3D Preview
  • Rule-Validated Options
  • Instant Part Number

Frequently Asked Questions

8 Questions

Common questions, answered.

The BXG 14 is the compact "mini" model in the BXG grazer range, a slim linear LED grazer for architectural and façade lighting, with an aluminium-extrusion housing and tempered glass rated IP66 for outdoor use.
It comes in 500 mm and 1000 mm lengths, drawing 7 W (500 mm) or 14 W (1000 mm).
It runs on 24 V or 48 V DC.
It uses 4-in-1 RGBW LEDs (also RGBA, RGB, Dynamic White and White), with selectable CCT of 2400K, 2700K, 3000K, 3500K, 4000K, 5000K and 6000K.
Linear line-effect optics of 20°×90° or 40°×90°.
It supports X-Stream (with data redundancy), DMX and SPI.
Via a hook-on, 30° adjustable or 90° adjustable bracket, using a 4-core DC/SPI cable in and out with connectors.
50,000 hours (L70 at 25°C), with a 5-year warranty (extendable).
