Architectural Dot
AD5

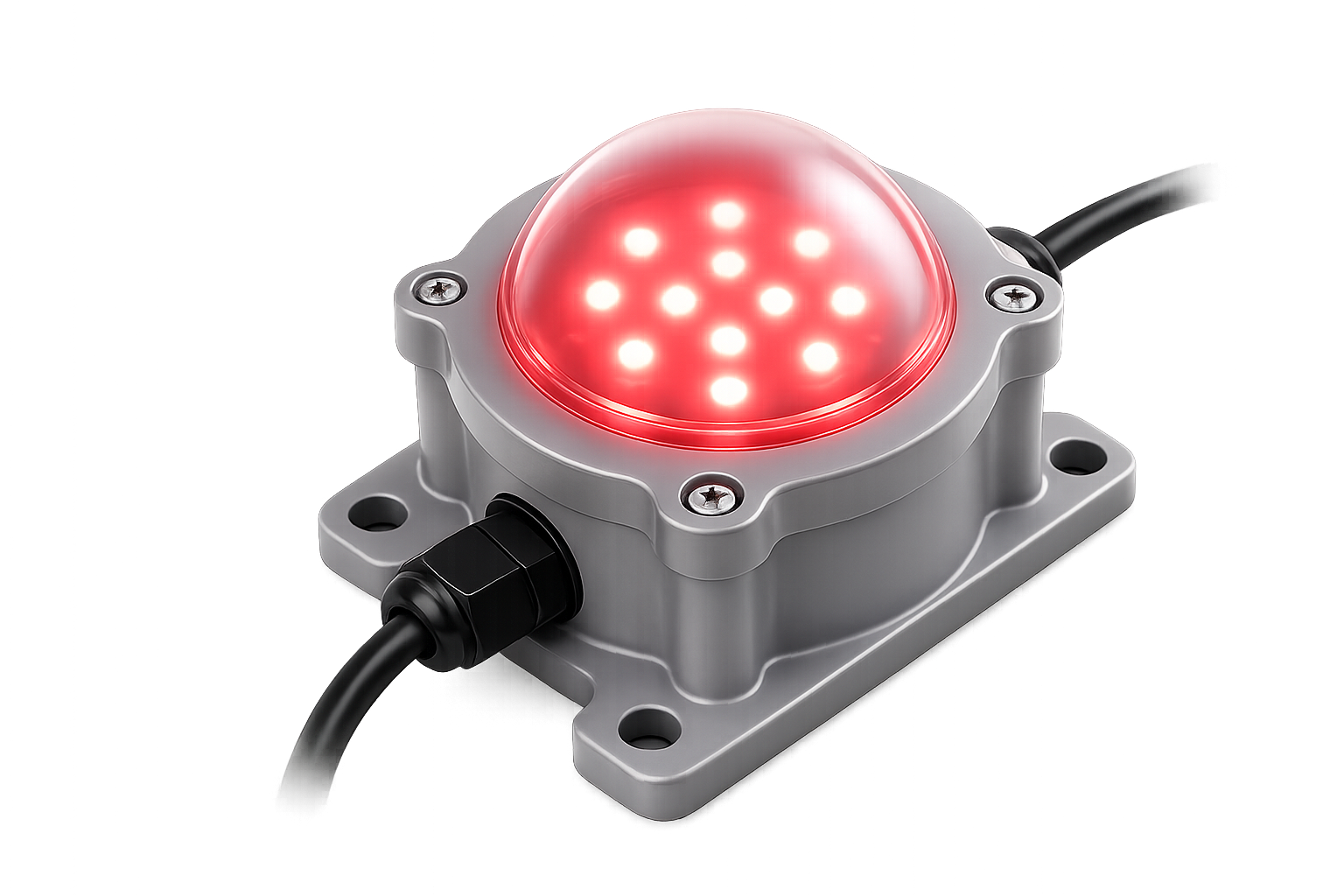

Compact architectural dot for precise feature and façade lighting in indoor environments. High-intensity LEDs deliver vibrant RGBW colour or clean white output across a wide 125° beam at 5 W. Die-cast aluminium housing with CE certification for reliable performance in 24 V DC and DMX/RDM systems.
| Electrical | |
|---|---|
| Power Consumption | 5 W Max |
| Operating Voltage | 24 V DC |
| Operating Temperature | −20°C to +50°C (−4°F to +122°F) |
| Storage Temperature | −20°C to +70°C (−4°F to +158°F) |
| Physical | |
| Dimensions | Ø58 mm × 66 mm (H) |
| Housing | Die-cast aluminium |
| Connectors | 5-pin DC/DMX cable entry side c/w IP connectors |
| Source Life | 50,000–70,000 hours L70 at 25°C |
| Mounting | Clip Mount |
| Lens | Flat, Dome |
| Optical | |
| Beam Angle | 125° |
| Colour Range |
RGBW
RGB
DW
W
|
| White CCT |
2200K
2700K
3000K
3500K
4000K
5000K
6000K
|
| Luminous Flux | 145 lm (RGBW) / 580 lm (6000K) |
| Control | |
| Control Protocol |
SPI
X-Stream
|
| Ratings | |
| Ingress Rating |
IP20
|
| Warranty | 5 Years (Extendable Warranty Available) |
Specification summary for quick evaluation. Colour mode, CCT, control protocol, housing colour, and mount type are configurable — see the part number configurator for your XAD 5 configuration.
XAD 5 Architectural Dot Downloads
Interactive Configurator
Pick colour mode, CCT, control protocol, housing colour, and mount type. Get a build-ready XAD 5 configuration for your feature or façade lighting installation.
