Architectural Dot
AD3
Compact high-output architectural dot for dynamic façade and feature lighting. High-intensity LEDs deliver vibrant RGBW colour or clean white output — ideal for media features, structural accents, and creative installations. Die-cast aluminium housing with IP66 protection for demanding indoor and outdoor environments.
| Electrical | |
|---|---|
| Power Consumption | 3 W Max |
| Operating Voltage | 24 V DC |
| Operating Temperature | −20°C to +50°C (−4°F to +122°F) |
| Storage Temperature | −20°C to +70°C (−4°F to +158°F) |
| Physical | |
| Dimensions | Ø48 mm × 37 mm (H) |
| Housing | Die-cast aluminium |
| Connectors | 5-pin DC/DMX both side entry cable c/w IP connectors |
| Mounting | Clip Mount, Surface Mount |

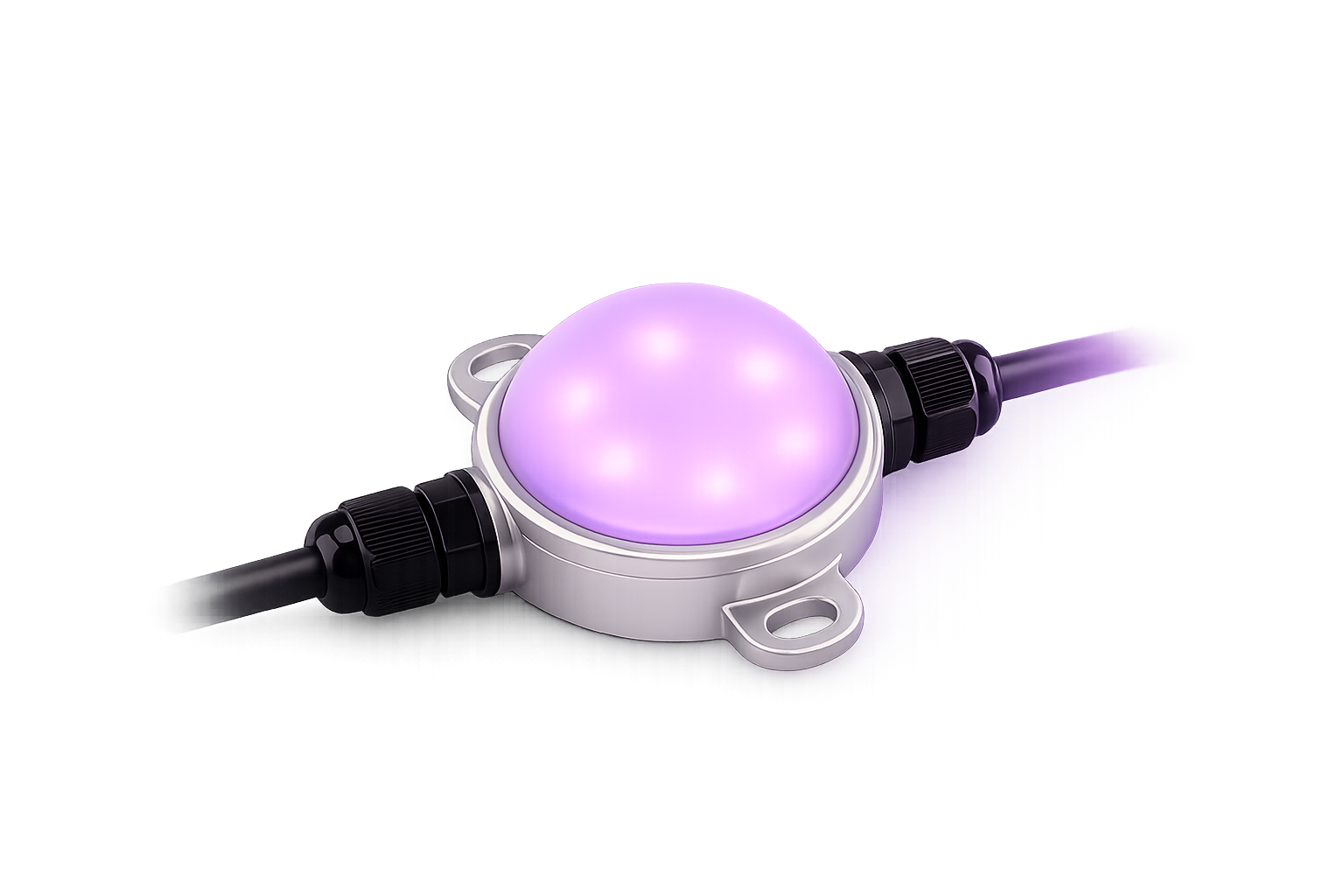

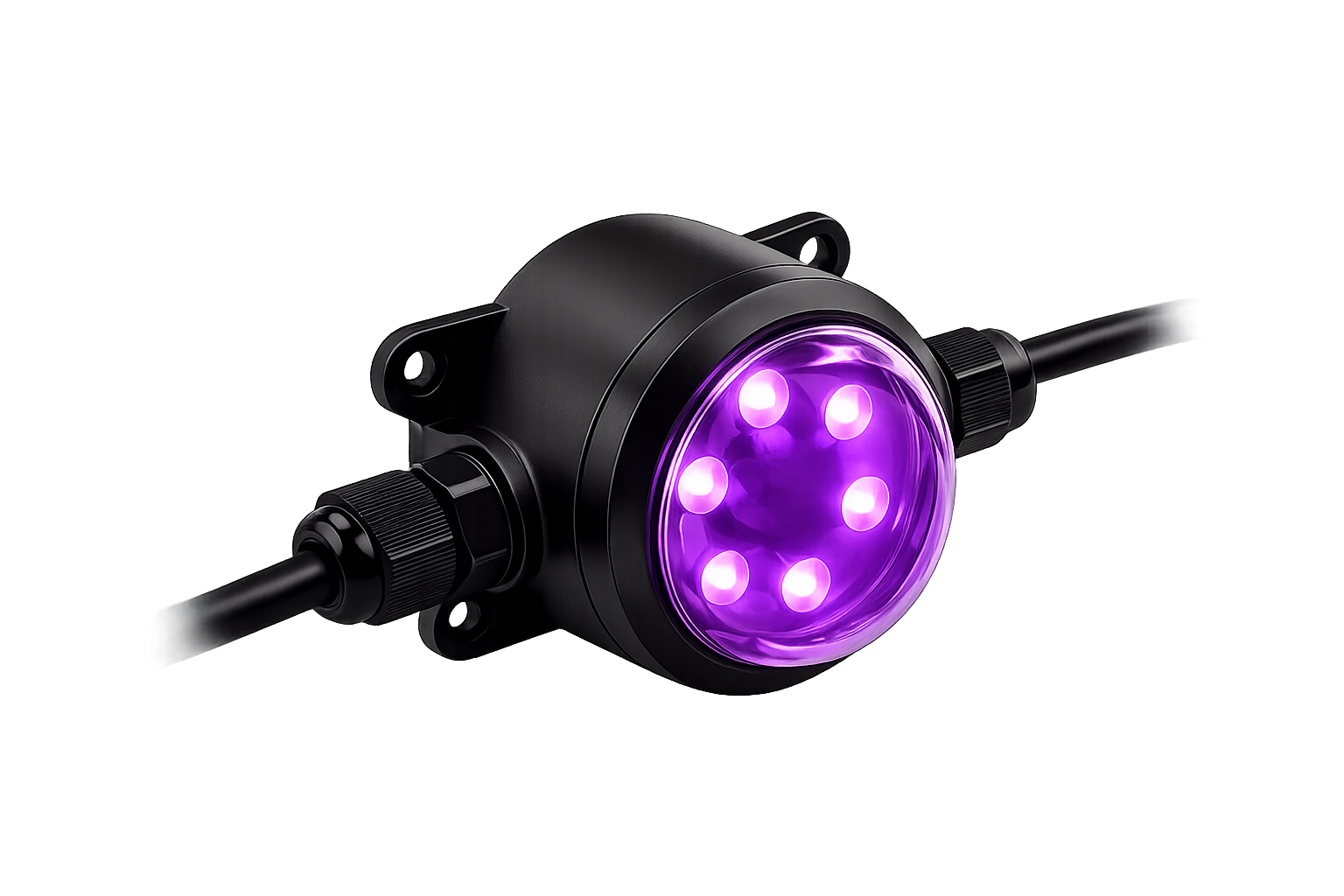

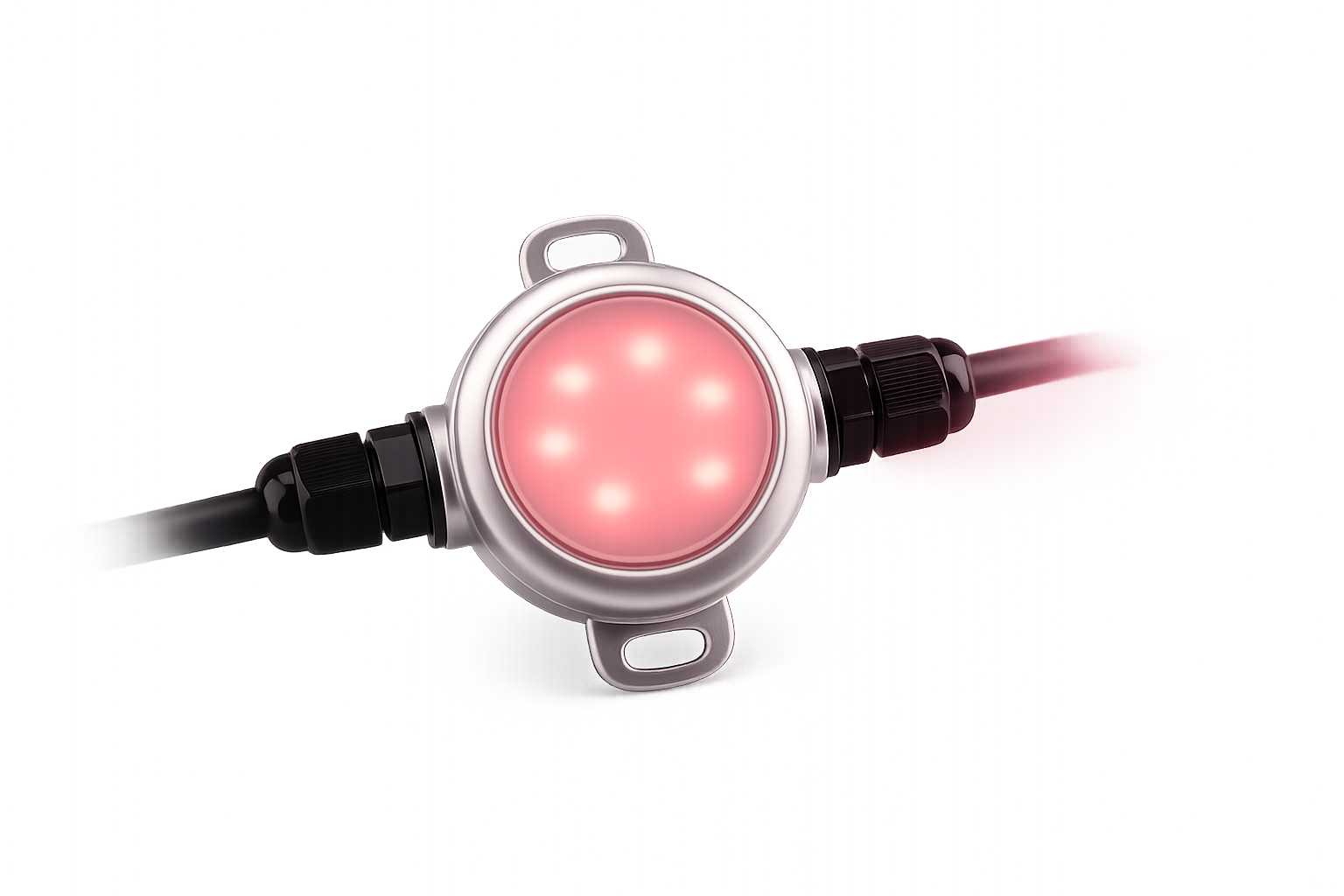

| Lens | Flat Clear, Dome Clear, Flat Diffused, Dome Diffused |
| Optical | |
| Source Life | 50,000–70,000 hours L70 at 25°C |
| Beam Angle | 125° |
| Colour Range |
RGBW
RGB
DW
W
|
| White CCT |
2200K
2700K
3000K
3500K
4000K
5000K
6000K
|
| Luminous Flux | 86 lm (RGBW) / 265 lm (6000K, diffused dome) |
| Control | |
| Control Protocol |
SPI
X-Stream
|
| Ratings | |
| Ingress Rating |
IP66
|
| Warranty | 5 Years (Extendable Warranty Available) |
Specification summary for quick evaluation. Colour mode, CCT, control protocol, housing colour, and mount type are configurable — see the part number configurator for your XAD 3 configuration.
XAD 3 Architectural Dot Downloads
Interactive Configurator
Pick colour mode, CCT, control protocol, housing colour, and mount type. Get a build-ready XAD 3 configuration for your façade, feature, or media lighting installation.
