Pipe Dream Pendant

P D GLO

The PDX GLO is a round pendant luminaire delivering true 360° even illumination with hotspot-free output and 16-bit LED control. Custom lengths from 500 mm to 1500 mm in RGBW, RGBA, RGB, Dynamic White, or White; CCT 2400K–6000K. IP20-rated, DMX, SPI, and X-Stream — backed by a 5-year warranty.

  • Colour RGBW · RGB · DW · W
  • Build IP20
  • Beam 360°
  • Control DMX · SPI · X-Stream
Configure Your Product View Specifications

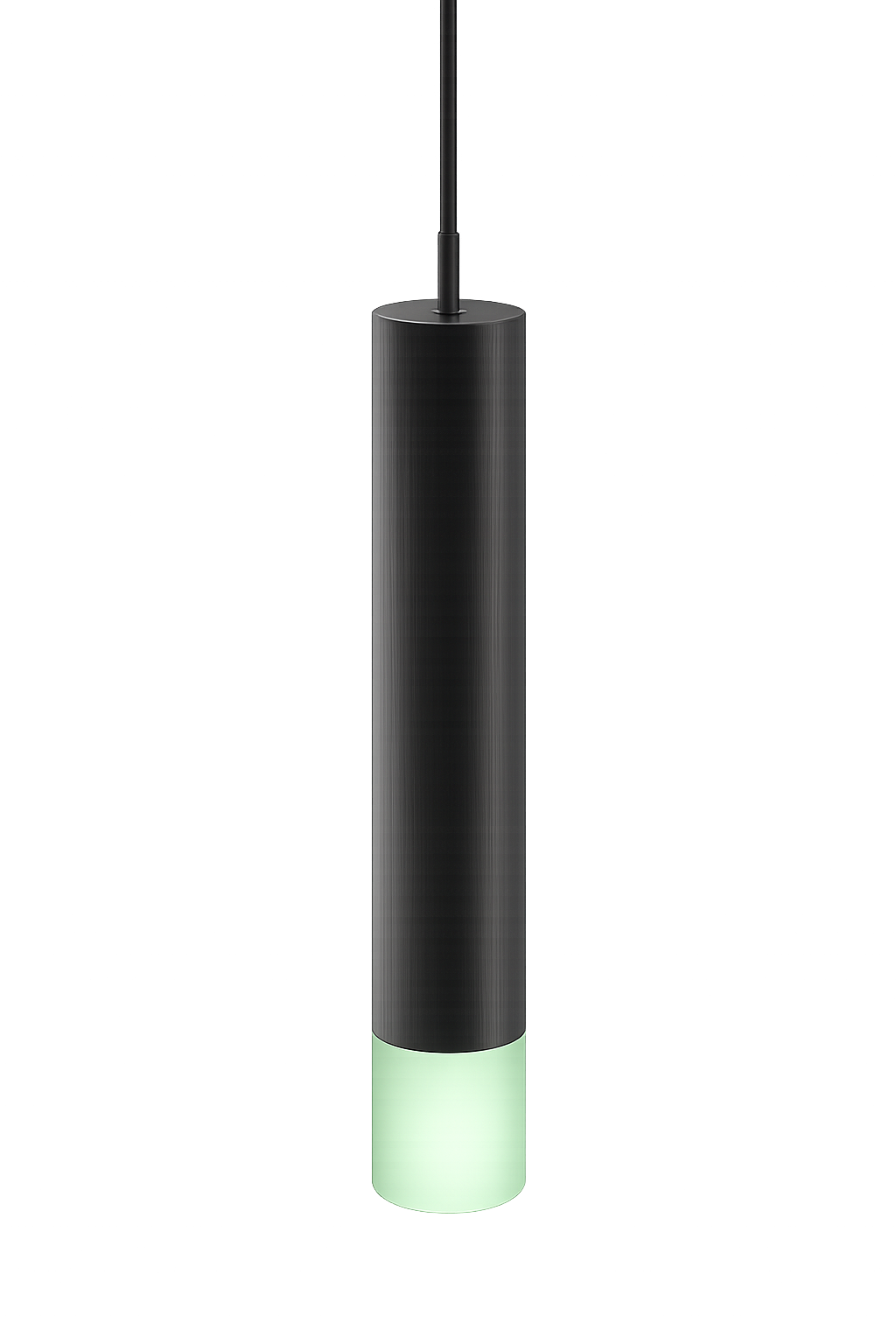

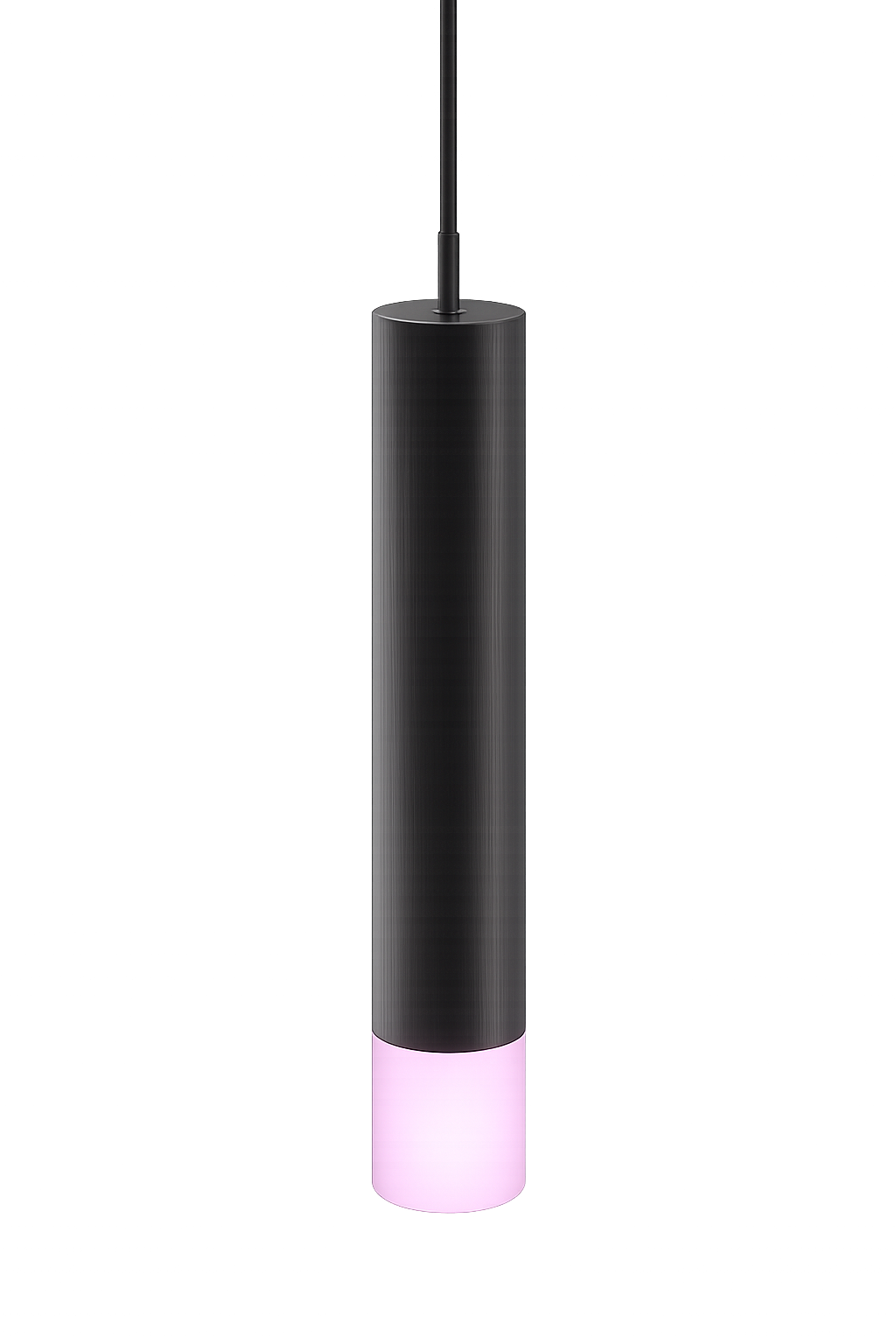

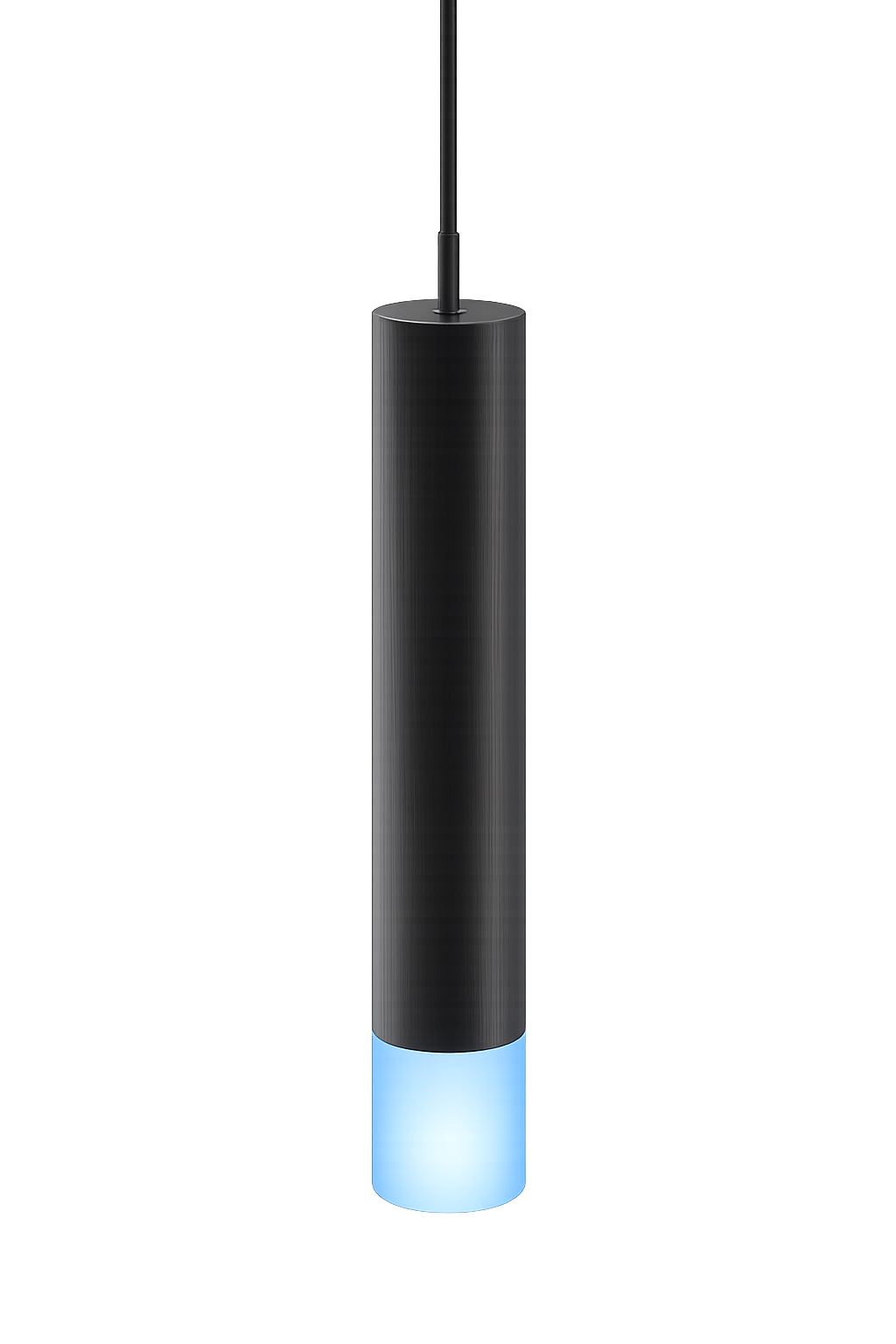

PDX GLO Pipe Dream Pendant render
1 / 4

Key Specifications · PDX GLO Pipe Dream Pendant

Electrical
Power Consumption 18 W
Operating Voltage 24 V DC
Operating Temperature −20°C to +50°C (−4°F to +122°F)
Physical
Fixture Dimensions ø54 mm × L 500–1500 mm
IP Rating IP20
Source Life 50,000 hours at L70, 25°C
Optical
Beam Angle 360° — Even Illumination
Colour Range
RGBW RGBW
RGBA RGBA
RGB RGB
Dynamic White DW
White W
White CCT
2400K 2400K
2700K 2700K
3000K 3000K
3500K 3500K
4000K 4000K
5000K 5000K
6000K 6000K
Dimming & Control
Control Protocol
DMX DMX
SPI SPI
X-Stream X-Stream
Ratings
Ingress Rating
IP rating icon IP20
Warranty 5 Years

Note: Specification summary for quick evaluation and layout planning. Tube length, colour mode, and CCT are configurable. Custom lengths available on request.

Fixture Dimensions
PDX GLO fixture dimensions

Downloads

PDX GLO Pipe Dream Pendant Downloads

Specifications

PDX_GLO_Pipe_Dream_Pendant_Datasheet.pdf

Product Configurator

Interactive Configurator

Configure PDX GLO for Your Project

Pick tube length, colour mode, and CCT. Get a build-ready PDX GLO configuration for your architectural or commercial pendant installation.

  • Live 3D Preview
  • Rule-Validated Options
  • Instant Part Number

Frequently Asked Questions

7 Questions

Common questions, answered.

Ø54 mm × 500–1500 mm long.
360° even illumination.
RGBW, RGBA, RGB, Dynamic White and White; white from 2400K to 6000K.
18 W on 24 V DC.
DMX, SPI and X-Stream.
Rated IP20; 50,000 hours (L70 at 25°C).
A 5-year warranty.
