In Ø54 mm or Ø80 mm diameters, 500–1500 mm long.
Fixtures
Fixtures
360° Pendant Luminaire
360

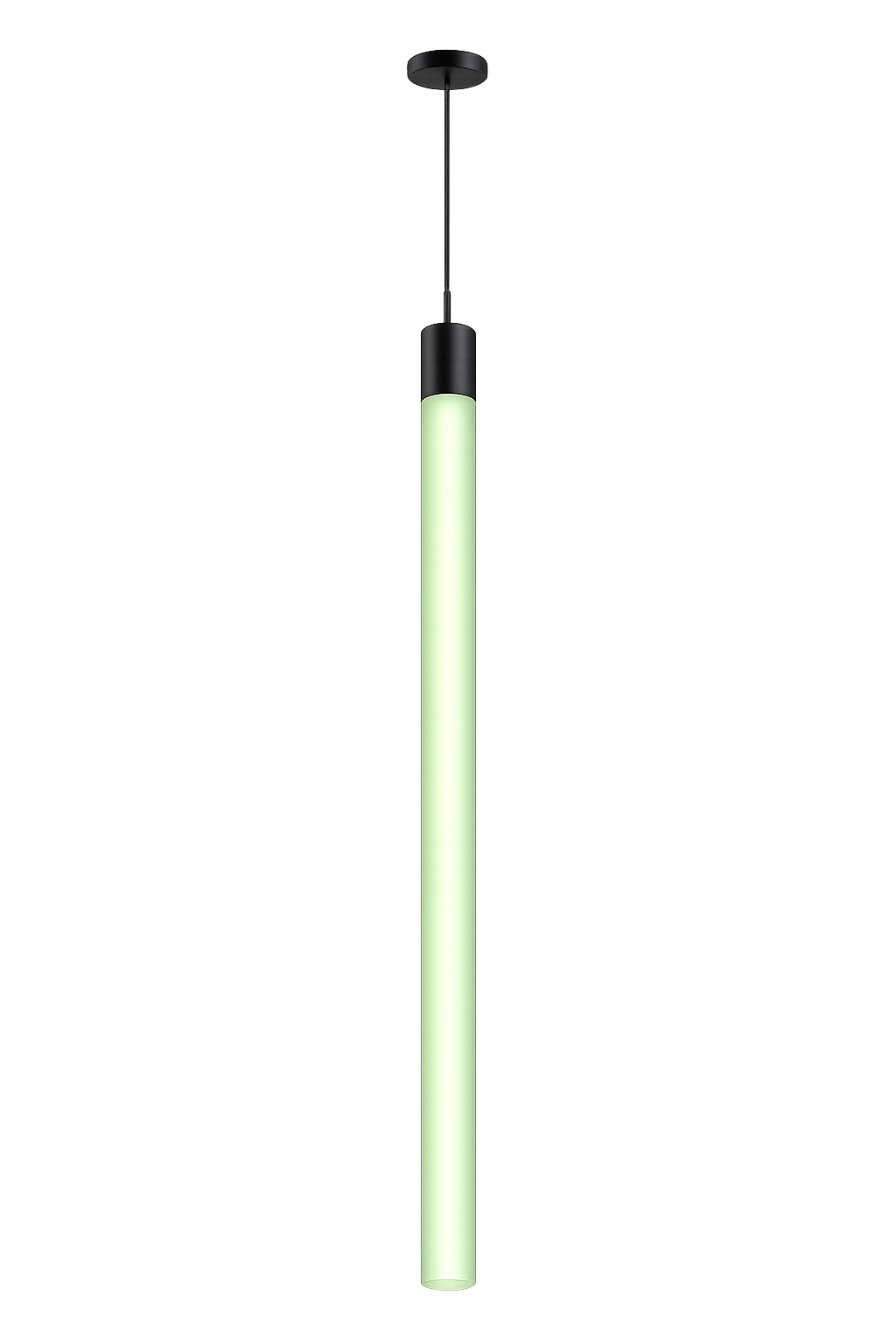

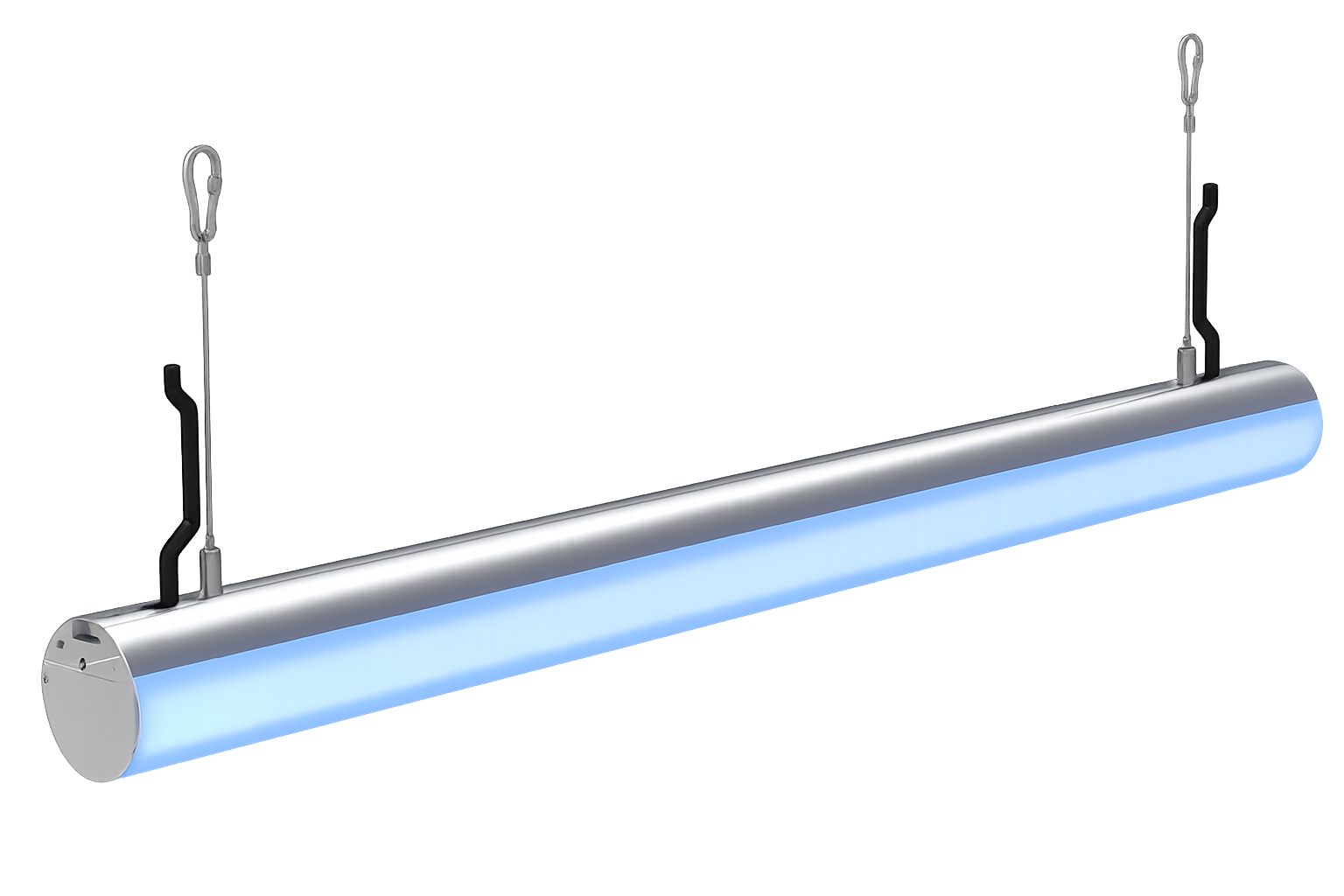

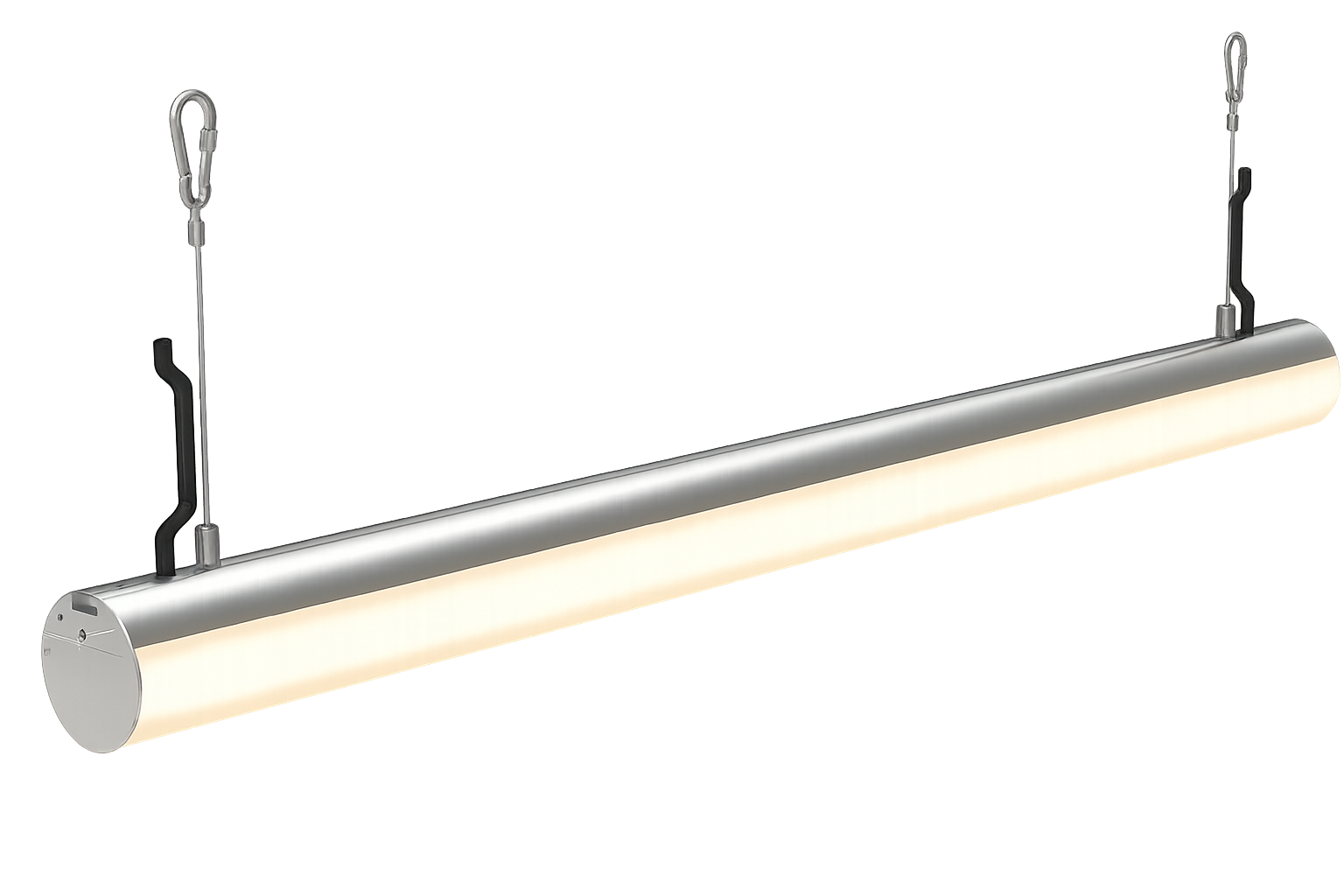

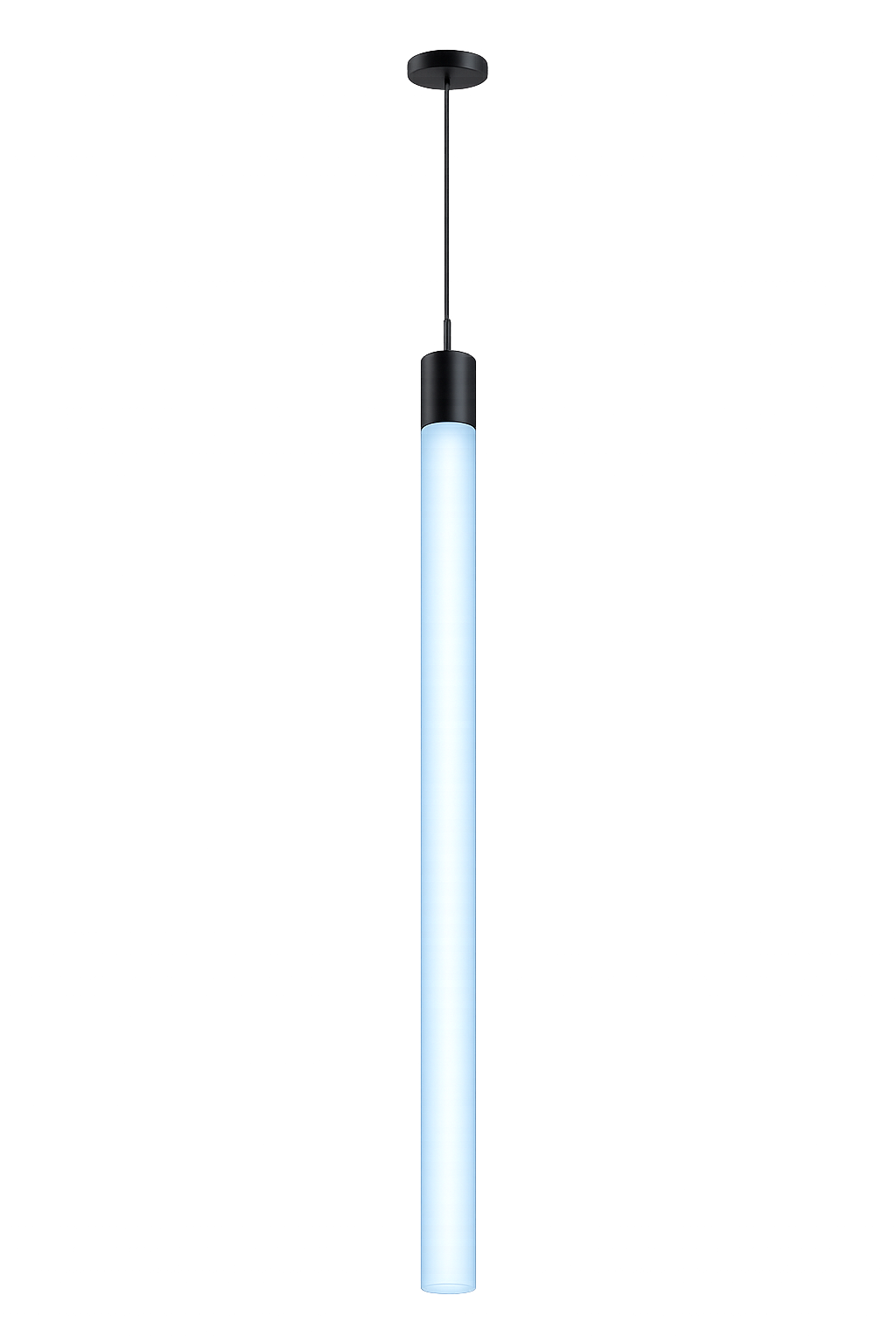

The PDX 360 is a 360° pendant luminaire delivering uniform, hotspot-free illumination across its full circumference. Available in ø54 mm or ø80 mm tube, custom lengths from 500 mm to 1500 mm, in RGBW, RGBA, RGB, Dynamic White, or White; CCT from 2400K to 6000K. IP65-rated with wall, pendant, suspension, and truss mounting — controlled via DMX, SPI, or X-Stream.
| Electrical | |
|---|---|
| Power Consumption | 35 W/m |
| Operating Voltage | 24 V DC |
| Operating Temperature | −20°C to +50°C (−4°F to +122°F) |
| Physical | |
| Dimensions | ø54 mm – L 500–1500 mm ø80 mm – L 500–1500 mm |
| Material | Frosted PC Light Diffuser – 360° |
| Mounting Accessories | Wall Mount · Pendant Mount · Suspension Mount · Truss Mount |
| Optical | |
| Beam Angle | 360° |
| Colour Range |
RGBW
RGBA
RGB
DW
W
|
| White CCT |
2400K
2700K
3000K
3500K
4000K
5000K
6000K
|
| Control | |
| Control Protocol |
DMX
SPI
X-Stream
|
| Ratings | |
| Ingress Rating |
IP65
|
| Warranty | 5 Years |
Note: Specification summary for quick evaluation and layout planning. Length, colour mode, CCT, and mounting type are configurable to suit your pendant luminaire installation.
PDX 360 Pendant Luminaire Downloads
Interactive Configurator
Pick length, colour mode, CCT, and mounting type. Get a build-ready PDX 360 configuration for your architectural or commercial pendant installation.
