LED Spotlight

B S 72

Q: What beam angles are available on the BXS 72?

The BXS 72 offers 10°, 25° and 40° beams.

Q: How is glare controlled on the BXS 72?

Glare-control accessories are available as a half snoot or full snoot .

Q: How is the BXS 72 mounted and wired?

It mounts on a bracket and connects via a 6-pin cable with terminal connector .

Q: What control protocols does the BXS 72 support?

It supports X-Stream , DMX and SPI .

Q: What colours and white tones does the BXS 72 offer?

It runs RGBW, RGB, Dynamic White and White engines, with white CCTs of 2700K, 3000K, 3500K, 4000K, 5000K, 6000K and 6500K and a dynamic white range of 2000K–5000K .

Q: What are the BXS 72's power, output and size?

It is a 72 W fixture running on 100–240 V AC , delivering 2850 lm (RGBW full on, 10°) , in a Ø180 mm × 180 mm body weighing 6.2 kg .

Q: What warranty does the BXS 72 carry?

The BXS 72 carries a 5-year warranty , with extended warranty available.

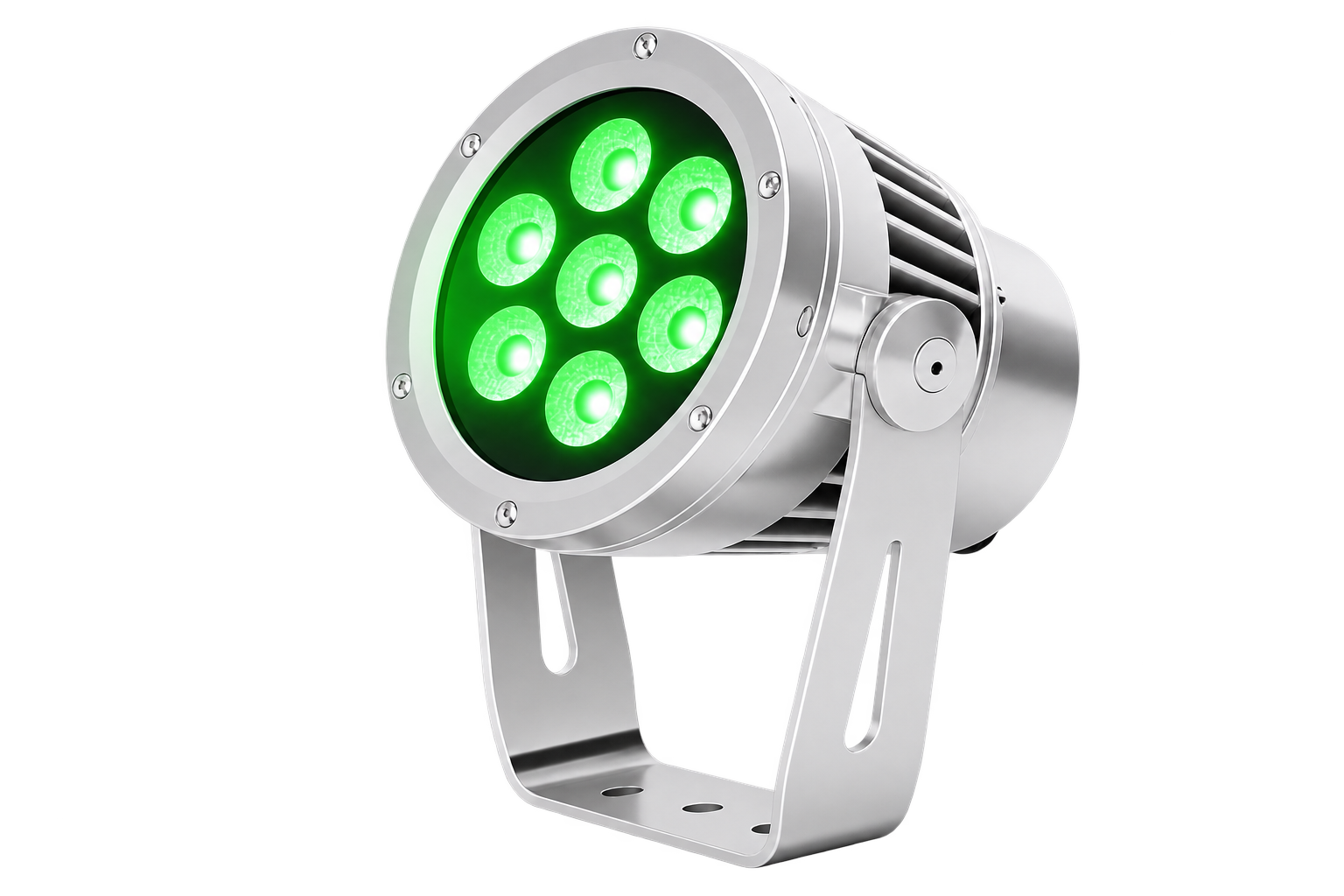

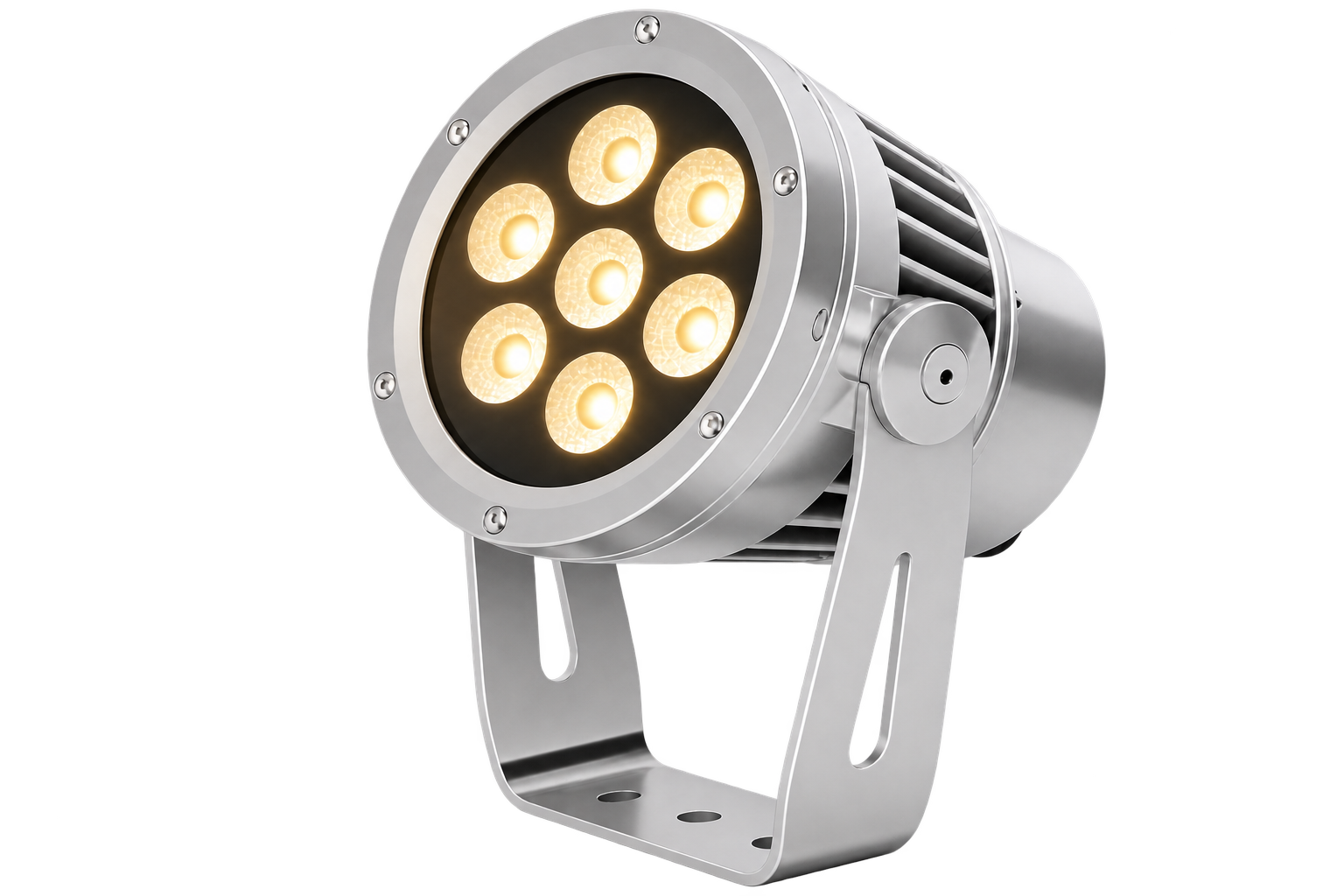

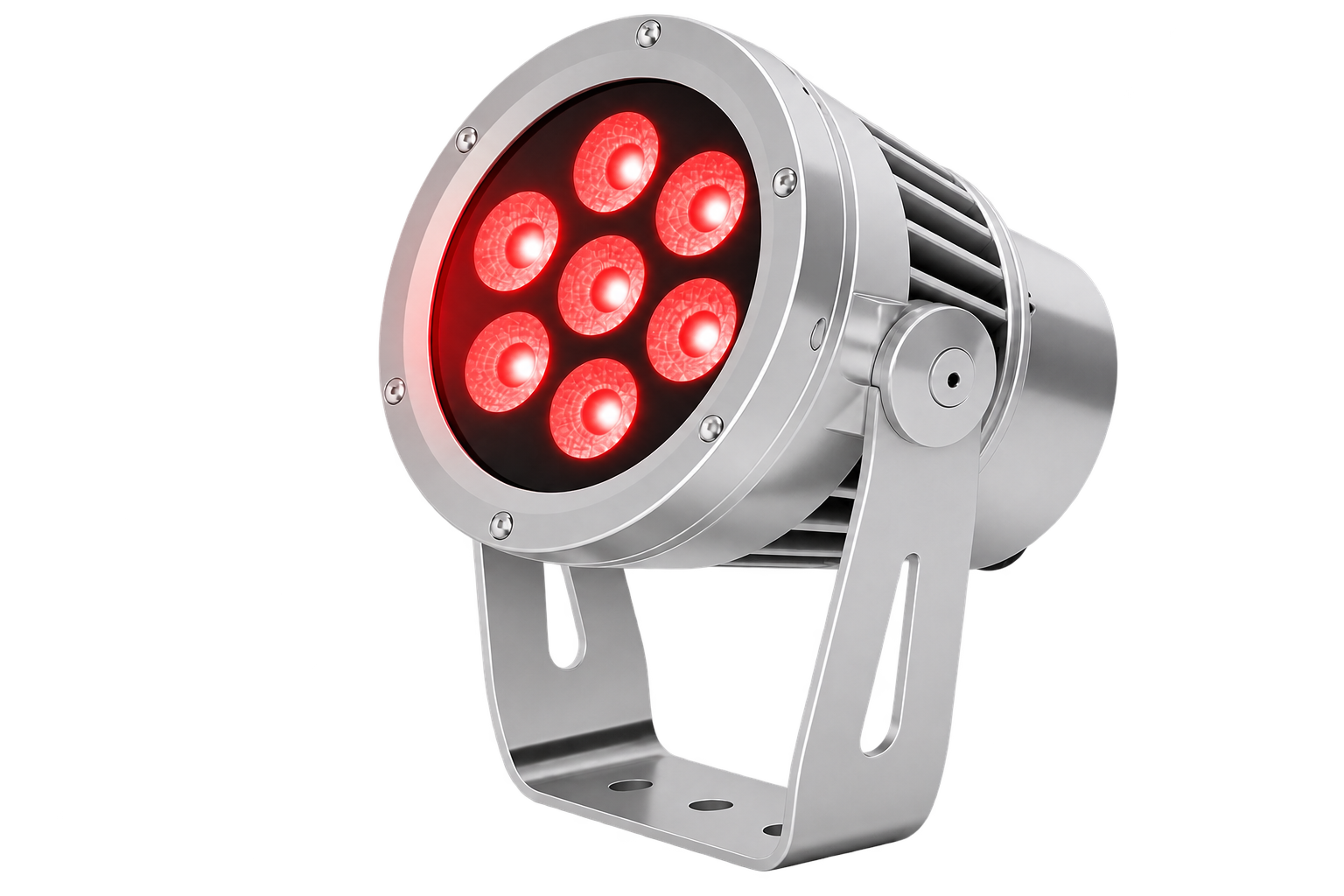

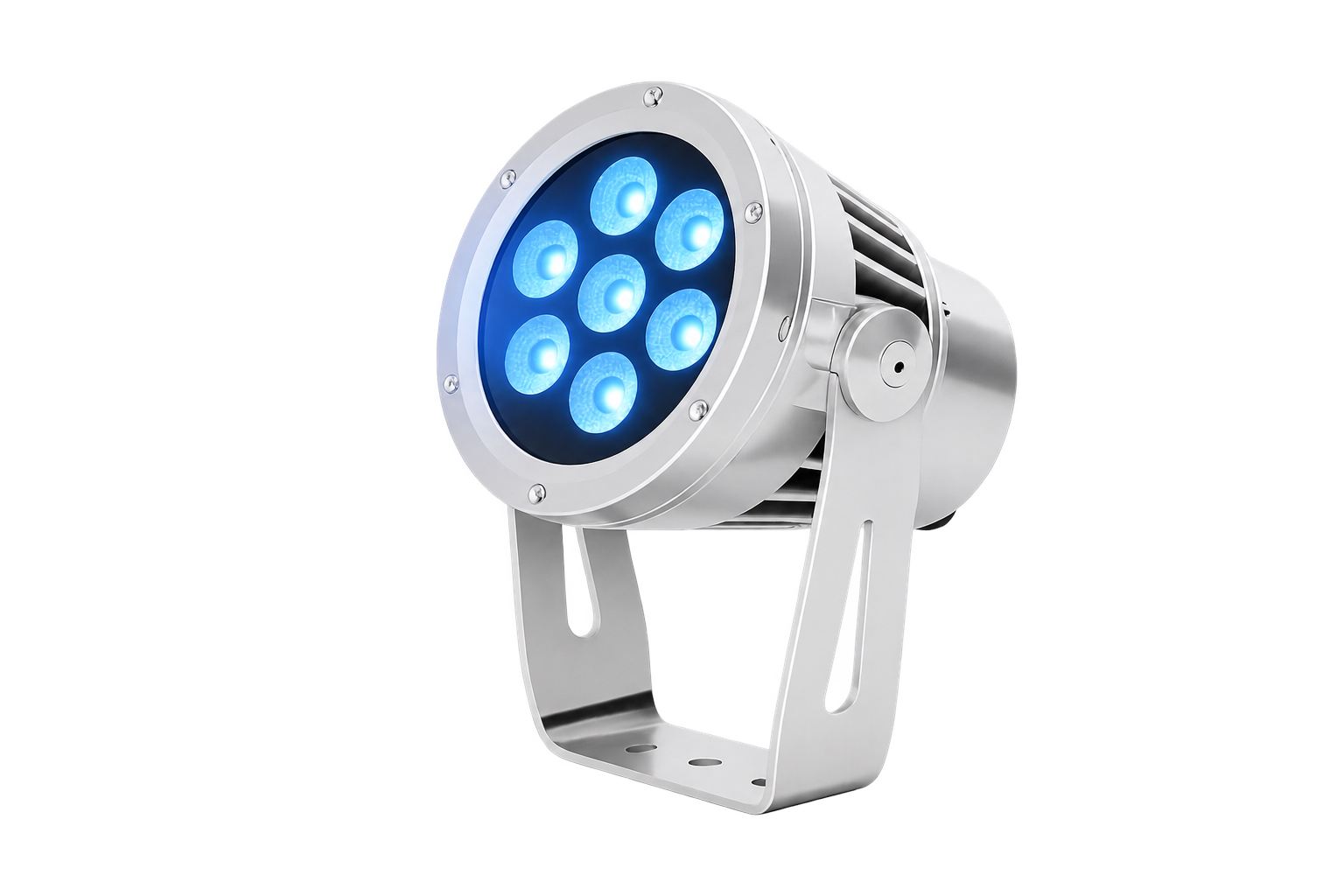

The BXS 72 is the flagship high-output LED spotlight in the BX Beam range, for architectural, landscape, façade, and public space applications that demand long-throw reach. Multiple colour engines, a powerful optical system, and interchangeable lenses deliver precise beam control across large-scale installations. Die-cast aluminium body, IP66 and IK07 rated for harsh outdoor environments.

Colour RGBW, RGB, DW, W
Output 10° · 25° · 40°
Build IP66 · IK07
Control X-Stream · DMX · SPI

Configure Your Product View Specifications

1 / 5

Specifications Downloads Accessories Configurator FAQs

Key Specifications · BXS 72 LED Spotlight

Electrical
Power Consumption	72 W
Operating Voltage	100–240 V AC Input
Operating Temperature	−20°C to +50°C (−4°F to +122°F)
Storage Temperature	−40°C to +70°C (−40°F to +158°F)
Physical
Fixture Dimensions	Ø180 mm × 180 mm (H)
Housing	Die-Cast Aluminium, Custom RAL
Weight	6.2 kg
Snoot Options	Half Snoot, Full Snoot
Source Life	50,000 hours / L70 at 25°C
Connection	6-Pin Cable with Terminal Connector
Optical
Beam Angle	10° · 25° · 40°
Colour Range
White CCT	2700K 3000K 3500K 4000K 5000K 6000K 6500K
Dynamic White Range	2000K – 5000K
Accurate Colour Control	RGBW Configurations with Selectable CCT
Luminous Flux	2850 lm (RGBW Full On, 10°)
Control
Control Protocols	X-Stream DMX SPI
Ratings
Ingress & Impact	IP66 IK07
Warranty	5 Years (Extendable Warranty Available)

Note: Specification summary for quick evaluation and layout planning. Beam angle, colour, control, snoot, and finish are configurable to suit your spotlight installation.

BXS 72 no snoot dimensions — No Snoot Dimensions

BXS 72 half snoot dimensions — Half Snoot Dimensions

Downloads

BXS 72 LED Spotlight Downloads

Specifications

BXS72_Spotlight_Specifications_Sheet.pdf

Accessories

BXS 72 LED Spotlight Accessories

Mounting 1

Bracket Surface-mount bracket.

Glare Control 2

Half Snoot Directional glare shield.

Full Snoot Full-depth glare snoot.

Product Configurator

Interactive Configurator

Configure BXS 72 for Your Project

Pick colour, CCT, beam angle, control, snoot, housing, and mount. Get a build-ready BXS 72 configuration for your install.

Live 3D Preview
Rule-Validated Options
Instant Part Number

Frequently Asked Questions

7 Questions

Common questions, answered.

What beam angles are available on the BXS 72?

The BXS 72 offers 10°, 25° and 40° beams.

How is glare controlled on the BXS 72?

Glare-control accessories are available as a half snoot or full snoot.

How is the BXS 72 mounted and wired?

It mounts on a bracket and connects via a 6-pin cable with terminal connector.

What control protocols does the BXS 72 support?

It supports X-Stream, DMX and SPI.

What colours and white tones does the BXS 72 offer?

It runs RGBW, RGB, Dynamic White and White engines, with white CCTs of 2700K, 3000K, 3500K, 4000K, 5000K, 6000K and 6500K and a dynamic white range of 2000K–5000K.

What are the BXS 72's power, output and size?

It is a 72 W fixture running on 100–240 V AC, delivering 2850 lm (RGBW full on, 10°), in a Ø180 mm × 180 mm body weighing 6.2 kg.

What warranty does the BXS 72 carry?

The BXS 72 carries a 5-year warranty, with extended warranty available.
