LED Spotlight

B S 50

Q: What is the BXS 50's beam angle, and can it be changed?

The BXS 50 has a 5° native beam that can be widened with a changeable spread lens to 10°, 25°, 40° or 60° , plus elliptical 10°×60° and 30°×60° options.

Q: What lens and glare-control accessories are available?

Options include a spread lens, honeycomb louver, half snoot, full snoot and barndoor .

Q: What are the power and supply requirements?

It is a 50 W fixture with a 100–240 V AC input and integral PSU , wired via a 3-core AC cable and DMX input/output cables with bare ends .

Q: How is the BXS 50 mounted, and what finishes are available?

It mounts on a spike or bracket , with a die-cast aluminium body in natural, black, white, grey or custom RAL .

Q: What control protocols does the BXS 50 support?

It supports X-Stream, DMX, DALI and SPI .

Q: What output and source life does the BXS 50 offer?

It delivers 1700 lm at the 5° beam (RGBW full on) , with a rated source life of 50,000–70,000 hours (L70 at 25°C) , IP66 / IK07.

Q: What warranty does the BXS 50 carry?

The BXS 50 carries a 5-year warranty , with extended warranty available.

The BXS 50 is a high-output LED spotlight in the BX Beam range, for architectural, landscape, and public space environments. Multiple colour engines, a native 5° beam, and a wide selection of interchangeable lenses and accessories. Die-cast aluminium body, IP66 rated for stable outdoor performance.

Colour RGBW, RGB, DW, W
Output 5° · 10° · 25° · 40°
Build IP66 · IK07
Control X-Stream · DMX · DALI · SPI

Configure Your Product View Specifications

1 / 1

Specifications Downloads Accessories Configurator FAQs

Key Specifications · BXS 50 LED Spotlight

Electrical
Power Consumption	50 W
Operating Voltage	100–240 V AC Input – Integral PSU
Operating Temperature	−20°C to +50°C (−4°F to +122°F)
Storage Temperature	−20°C to +70°C (−4°F to +158°F)
Physical
Fixture Dimensions	Ø140 mm × 186 mm (H)
Housing	Die-cast Aluminium, Anodised Brushed, Corrosion Resistant (Natural, Black, White, Grey, Custom RAL)
Mounting Options	Spike, Bracket
Snoot & Lens Options	Spread Lens, Honeycomb Louver, Half Snoot, Full Snoot, Barndoor
Source Life	50,000–70,000 hours / L70 at 25°C
Connection	3-core AC cable input with bare end and DMX input/output cables with bare end
Optical
Beam Angle	5° native (changeable spread lens: 10° · 25° · 40° · 60° · 10°×60° · 30°×60°)
Colour Range
White CCT	2400K 2700K 3000K 3500K 4000K 5000K 6000K
LED Type	High Power LEDs
Luminous Flux	1700 lm @ 5° (RGBW full on)
Control
Control Protocols	X-Stream DMX DALI SPI
Ratings
Ingress & Impact	IP66 IK07
Warranty	5 Years (Extendable Warranty Available)

Note: Specification summary for quick evaluation and layout planning. Beam angle, colour, control, snoot, and finish are configurable to suit your spotlight installation.

BXS 50 no snoot dimensions — No Snoot Dimensions

BXS 50 half snoot dimensions — Half Snoot Dimensions

BXS 50 full snoot dimensions — Full Snoot Dimensions

Downloads

BXS 50 LED Spotlight Downloads

Specifications

BXS50_Spotlight_Specifications_Sheet.pdf

Accessories

BXS 50 LED Spotlight Accessories

Mounting 2

Adjustable Surface Bracket Multi-angle mounting for walls or ceilings.

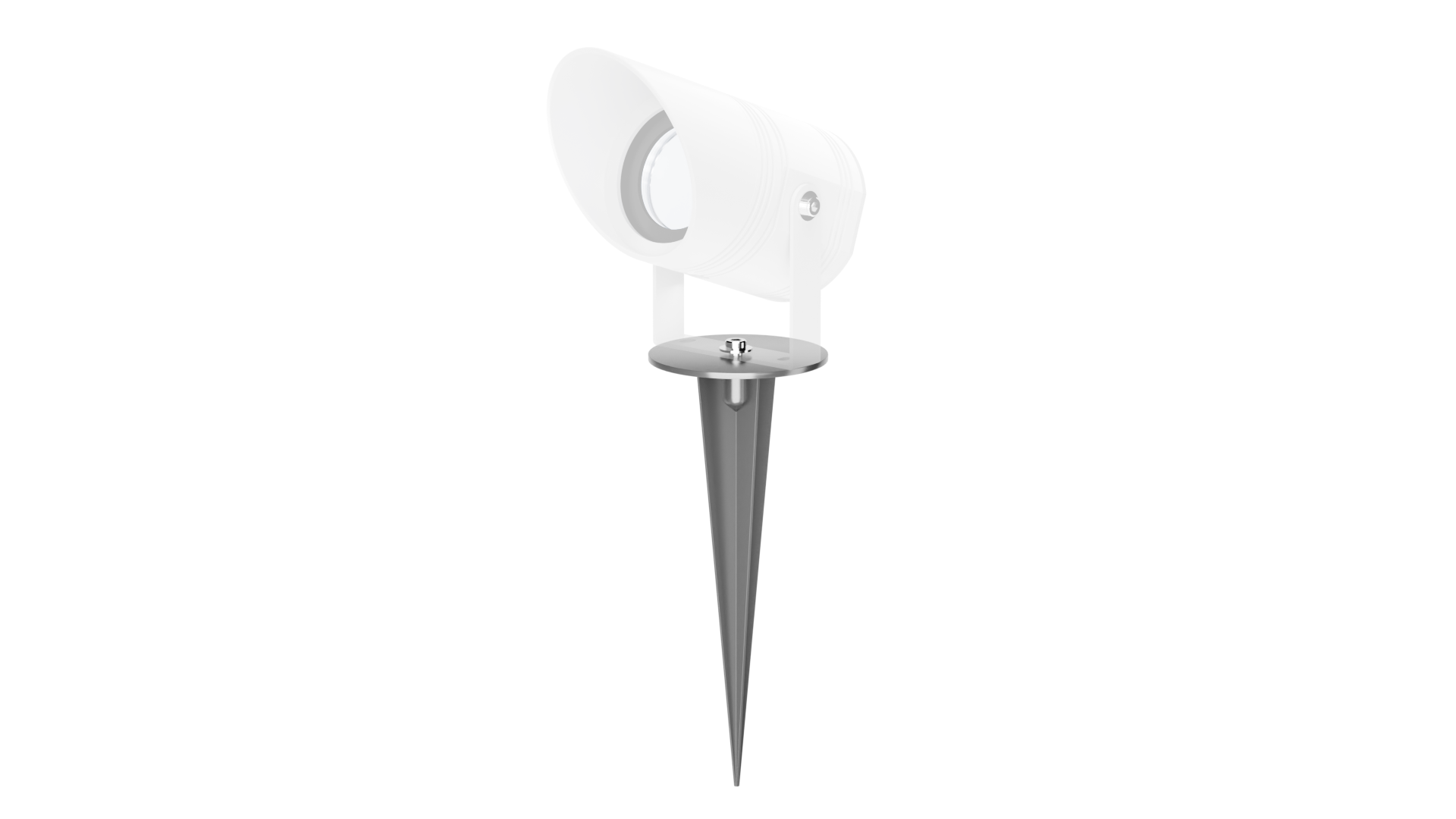

Ground Spike Compact in-ground spike for landscape use.

Glare Control 2

Half Snoot Directional glare shield for controlled beam edges.

Full Snoot Full-depth glare snoot for narrow beam control.

Product Configurator

Interactive Configurator

Configure BXS 50 for Your Project

Pick colour, CCT, beam angle, control, snoot, housing, and mount. Get a build-ready BXS 50 configuration for your install.

Live 3D Preview
Rule-Validated Options
Instant Part Number

Frequently Asked Questions

7 Questions

Common questions, answered.

What is the BXS 50's beam angle, and can it be changed?

The BXS 50 has a 5° native beam that can be widened with a changeable spread lens to 10°, 25°, 40° or 60°, plus elliptical 10°×60° and 30°×60° options.

What lens and glare-control accessories are available?

Options include a spread lens, honeycomb louver, half snoot, full snoot and barndoor.

What are the power and supply requirements?

It is a 50 W fixture with a 100–240 V AC input and integral PSU, wired via a 3-core AC cable and DMX input/output cables with bare ends.

How is the BXS 50 mounted, and what finishes are available?

It mounts on a spike or bracket, with a die-cast aluminium body in natural, black, white, grey or custom RAL.

What control protocols does the BXS 50 support?

It supports X-Stream, DMX, DALI and SPI.

What output and source life does the BXS 50 offer?

It delivers 1700 lm at the 5° beam (RGBW full on), with a rated source life of 50,000–70,000 hours (L70 at 25°C), IP66 / IK07.

What warranty does the BXS 50 carry?

The BXS 50 carries a 5-year warranty, with extended warranty available.
