A modular architectural downlight in two options — Ø40 mm at 5 W and Ø60 mm at 10 W. The Ø40 mm body measures 65 mm long, 45 mm top Ø, 35 mm bottom Ø; the Ø60 mm body 80 mm long, 65 mm top Ø, 55 mm bottom Ø.
Fixtures
Fixtures
Architectural Downlight
M

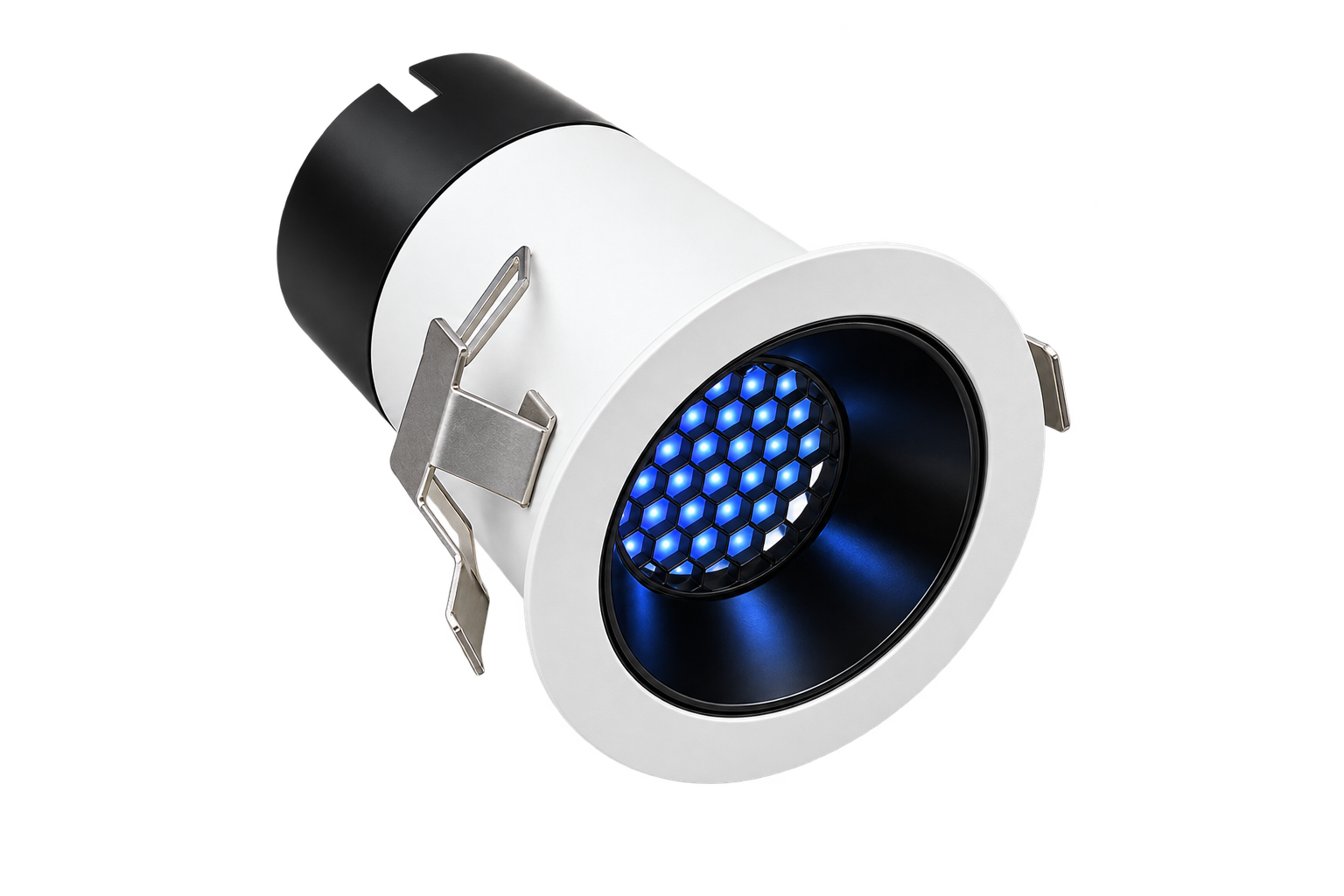

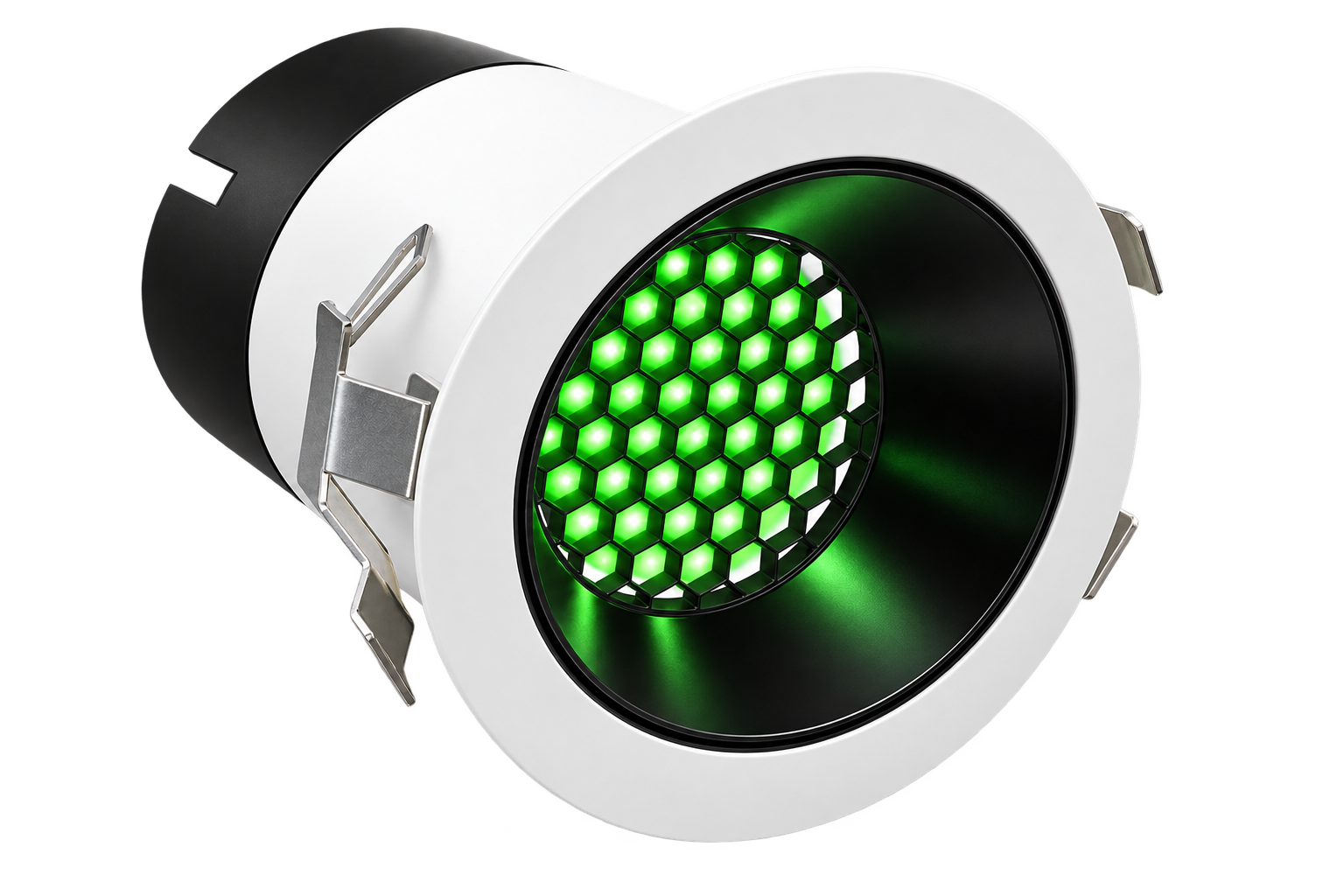

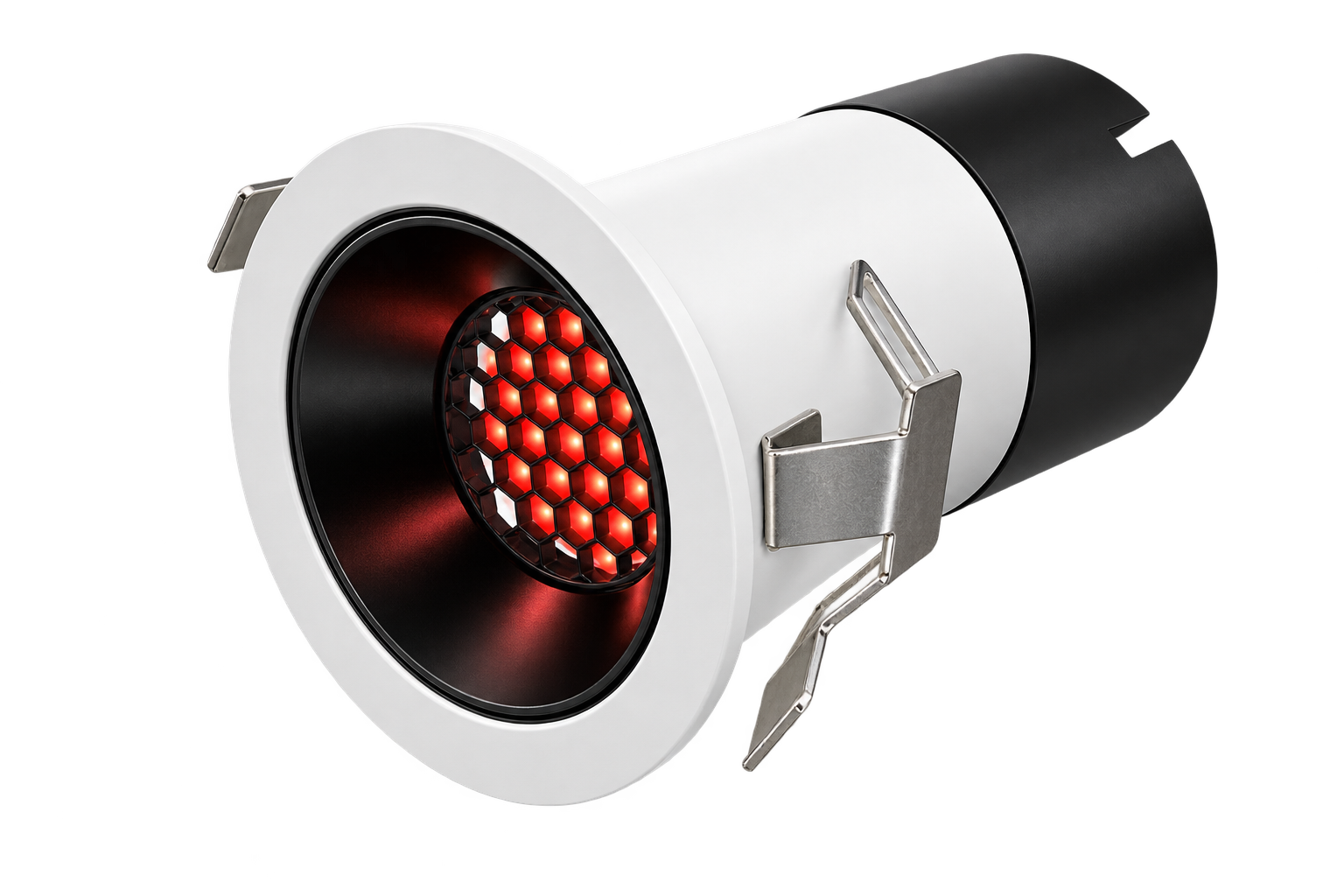

The DXM is a modular architectural downlight for dynamic, pixel-controlled illumination across retail, hospitality, and façade applications. Available in Ø40 mm (5 W) and Ø60 mm (10 W) formats, it features 4-in-1 RGBW LEDs with X-Stream technology for high-speed SPI control. Interchangeable lenses deliver focused accents or soft ambient light — IP20 standard, IP44 available.
| Electrical | |
|---|---|
| Power Consumption | 5 W (Ø40 mm) / 10 W (Ø60 mm) |
| Operating Voltage | 24 V DC |
| Operating Temperature | −20°C to +50°C (−4°F to +122°F) |
| Storage Temperature | −20°C to +70°C (−4°F to +158°F) |
| Physical | |
| Fixture Format | ø45 mm (5 W) / ø60 mm (10 W) |
| Connectors | 5-pin connectors |
| Source Life | 50,000–70,000 hours at 70% lumen maintenance at 25°C |
| Housing Colour / Finish | Aluminium / Black / White / Custom RAL |
| Mounting | Modular lens options |
| Optical | |
| Beam Angle | 15° / 24° / 36° (interchangeable lenses) |
| Colour Range |
RGBW
|
| White CCT |
2700K
3000K
3500K
4000K
5000K
6000K
7000K
|
| Luminous Flux | 225 lm (Ø40 mm, 5 W) / 550 lm (Ø60 mm, 10 W) at 25°C |
| Control | |
| Control Protocol |
X-Stream
|
| Dimming Resolution | 16-bit (65,536 levels) |
| Ratings | |
| Ingress Rating |
IP20 / IP44
|
| Warranty | 5 Years (Extendable Warranty Available) |
Note: Specification summary for quick evaluation and layout planning. Fixture size, beam angle, colour mode, CCT, and housing finish are configurable to suit your architectural downlight installation.
